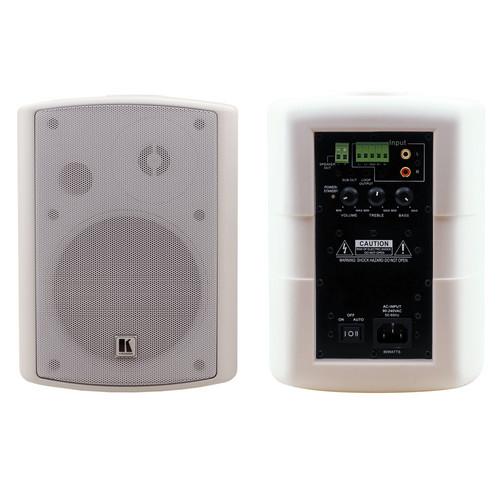

User Manual for Kramer Tavor 5-O 5.25" 2-Way Active On-Wall Speakers Click to enlarge the picture
Contents of the user manual for the Kramer Tavor 5-O 5.25" 2-Way Active
- Product category: Installed Speakers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Installed Speakers
|
User manual for the Kramer Tavor 5-O 5.25" 2-Way Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The black Tavor 5-O 5.25" 2-Way Active On-Wall Speakers (Pair) from Kramer are amplified 2 x 30W RMS surface-mount loudspeakers designed for professional, commercial, or residential applications where sound is needed. The SPK-WA511 is enclosed in an ABS cabinet and can be mounted vertically or horizontally. The mounting brackets are made of hardened steel that attach to each speaker, letting you rotate each speaker to the left or right. The system accepts a line−level stereo input and amplifies it using a built-in amplifier, and outputs a speaker signal to the passive speaker. The Tavor 5-O speaker system features three available inputs (that can either be connected separately or connected simultaneously to form a mix of the inputs. On the back of the active speaker, there is a mini panel that controls all functions of both speakers - treble, bass and volume. - Design
- The Tavor 5-O system is a pair of powered two−way speakers designed for indoor wall mounting
- Active Loudspeaker
- Integrated stereo 2 x 30W amplifier and volume control, no external amplifier needed
- Inputs / Outputs
- Three available inputs (that can either be connected separately or connected simultaneously to form a mix of the inputs) that consist of:
A line level unbalanced stereo audio input on a 3.5mm mini jack connector
A balanced stereo audio input on a 5-pin terminal block connector
An unbalanced stereo audio input on two RCA connectors
An output to external amplified or non-amplified speakers
An output to an external subwoofer
A unique looping output, letting you chain additional pairs of active and passive speakers - Mounting
- The SPK-WA511 is enclosed in an ABS cabinet and can be mounted indoors on the wall, vertically or horizontally. The mounting brackets are made of hardened steel that attach to each speaker, letting you rotate each speaker to the left or right
- Control Panel
- On the back of the active speaker, controls all functions of both speakers - treble, bass and volume
- Auto Power
- Shuts off when system is not in use
In the Box Kramer Tavor 5-O 5.25" 2-Way Active On-Wall Speakers (Pair, Black) 6.6' (2 m) RCA Cable 13' (4 m) Speaker Cable for Connecting the Active Speaker to the Passive Speaker 9.8' (3 m) AC Power Cord Pair of U-Shaped Rotating Mounting Brackets 4 x Mounting Brackets User Manual 1-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Tavor 5-O 5.25" 2-Way Active On-Wall Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer SPK-WA511 Specs | Input | 1x 3.5 mm stereo mini jack (line level)
1x terminal block connector (balanced stereo)
2x RCA L/R connectors (unbalanced stereo) | | Outputs | 1x speaker (to connect to the external passive speaker)
1x 3.5 mm mini jack (for active sub-woofer)
1x 3.5 mm mini jack (for loop output) | | Type | Two-way bass reflex, on-wall speaker | | Woofer | 5.25" (133 mm) polypropylene cone / rubber surround | | Tweeter | 0.5" (13 mm) Mylar | | Frequency Response | 75 Hz to 20 kHz @ -10 dB | | Impedance | 4 Ohms | | SPL | 110 dB | | Power | 2 x 30W RMS, 2 x 80W continuous | | Control | Volume, bass and treble control | | Power Supply | 90 to 240V AC, 50/60 Hz self adjusting | | Power Consumption | Standby: 0.7W | | Materials | Frame, grill and brackets steel; cabinet ABS | | Installation | Front Panel to Wall (with Mounting Bracket): 8.7" (22 cm)
Back Panel to Wall (with Mounting Bracket): 1.8" (4.5 cm) | | Dimensions | 7.2 x 6.7 x 9.6" (18.3 x 17.0 x 24.4 cm)
With Bracket: 7.2 x 6.8 x 10.4" (18.3 x 17.2 x 26.5 cm) | | Weight | 6 lb. (2.7kg)
With Bracket: 6.8 lb. (3.1kg) | | | | Package Weight | 13.85 lb | | Box Dimensions (LxWxH) | 17.0 x 12.1 x 10.3" |
