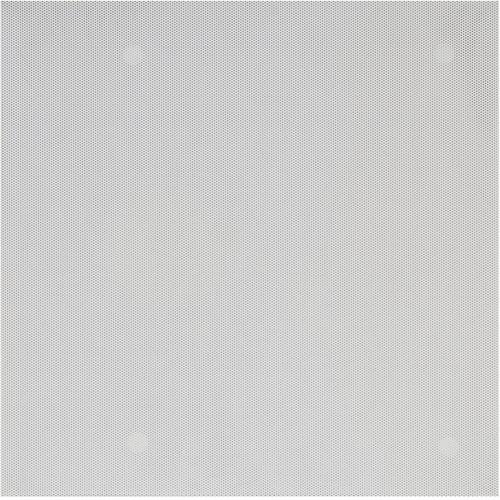

User Manual for Kramer Tavor 8-T 8" HighPerformance, Powered Ceiling Tile Speaker Click to enlarge the picture
Contents of the user manual for the Kramer Tavor 8-T 8" HighPerformance, Powered
- Product category: Installed Speakers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Installed Speakers
|
User manual for the Kramer Tavor 8-T 8" HighPerformance, Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The white Tavor 8-T 8" High−Performance, Powered Ceiling Tile Speaker from Kramer is a 2-way speaker featuring a 40-watt built-in class D power amplifier, three inputs, and a Kevlar cone woofer with rubber surround. Additionally, it houses four pivoting 0.8" titanium tweeters and a complete K−overage ESD (Equal Sound Dispersion) design, for almost 180 degrees of sound dispersion. Finally, a magnet held grille (with two security screws) is on-board for time saving installation.
The Tavor 8-T has a frequency response of 80 Hz to 20 kHz @±3 dB, a 2nd level cross−over, and three independent input level trimmers, with one master volume trimmer.
The Tavor 8-T is suitable for use in conference rooms, boardrooms, classrooms, hotels, clubs, and restaurants. - 8" Kevlar cone rubber surround woofer
- Four pivoting 1" titanium dome tweeters
- 3 Inputs with individual volume control and 1 master volume control
- Magnetically held grilles with 2 security screws
In the Box Kramer Tavor 8-T 8" HighPerformance, Powered Ceiling Tile Speaker (White) 24V DC power adapter 595 x 595 mm Grille 600 x 600 mm Grille Limited 1-Year Warranty Guides & Manuals cbqbyvwxvadfrvbcfsdcffcwyes Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Tavor 8-T 8" HighPerformance, Powered Ceiling Tile Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kramer Tavor 8-T 8" HighPerformance, Powered Ceiling Tile Speaker can be downloaded in PDF format at the link stated below.
Technical parametersKramer TAVOR 8-T(W) Specs | Speaker Type | Active flat ceiling speaker | | Woofer | 8" (200mm) Kevlar cone with rubber surround | | Tweeter | Four x 0.8" titanium pivoting tweeters | | Frequency Response | 65 Hz to 20 kHz @−10 dB, 80 Hz to 20 kHz @±3 dB | | Sensitivity | 87 dB SPL, 1 W @ 1m | | Power Handling | 40W RMS, 110W continuous program | | Crossover Frequency | 2 kHz | | Directivity Factor | 9.43 averaged 1 kHz to 10 kHz | | Directivity Index | 9.5 dB averaged 1 kHz to 10 kHz | | Input Connector | Terminal block connectors | | Controls | 3 independent input level trimmer, 1 master volume trimmer | | Dimensions (Diam. x Depth) | 23.6 x 23.6 x 3.9"(60 x 60 x 10cm) (tile size)
23.4 x 23.4 x 3.9" (59.5 x 59.5 x 10 cm) (tile size) for any region with suspended ceiling tiles of 23.4" (59.5 cm) | | Material of Construction | Frame, steel grills 23.4 x 23.4" (595 x 595 mm)size 1
23.6 x 23.6 (600 x 600 mm) size 2 | | Speaker Weight | 19.3 lb (8.8 kg) (approximate) |
