User Manual for Kramer TBUS-201xl Pop-Up Table-Mounted Interface Panel Click to enlarge the picture
Contents of the user manual for the Kramer TBUS-201xl Pop-Up Table-Mounted Interface Panel
- Product category: Wall Plates & Installation Boxes Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Wall Plates & Installation Boxes
 |
User manual for the Kramer TBUS-201xl Pop-Up Table-Mounted Interface Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

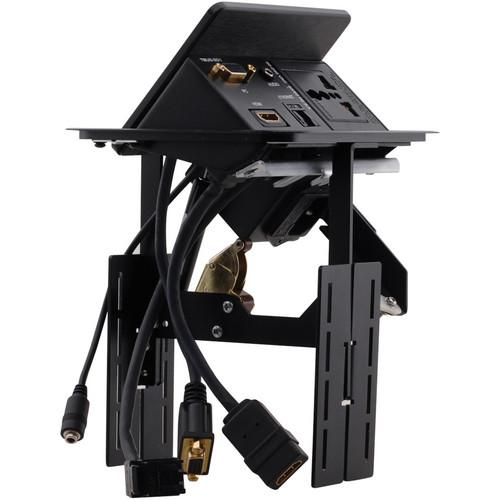

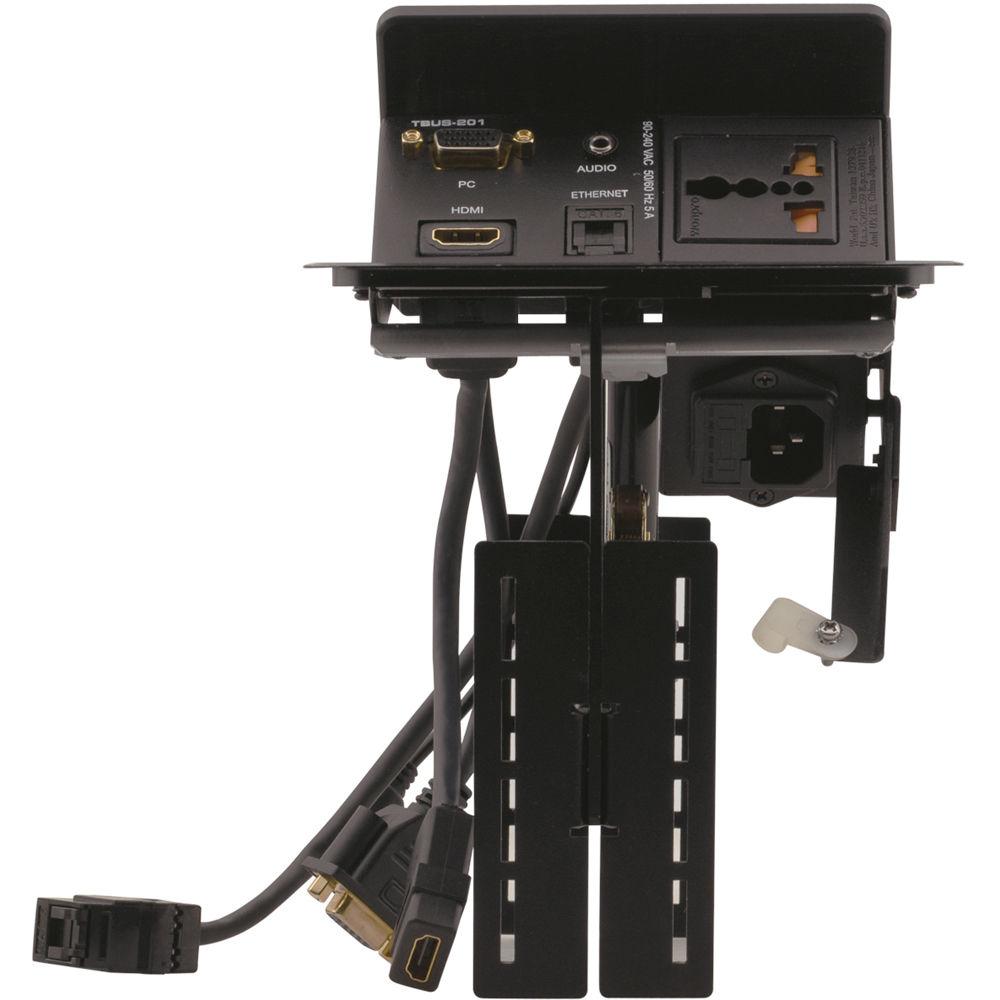

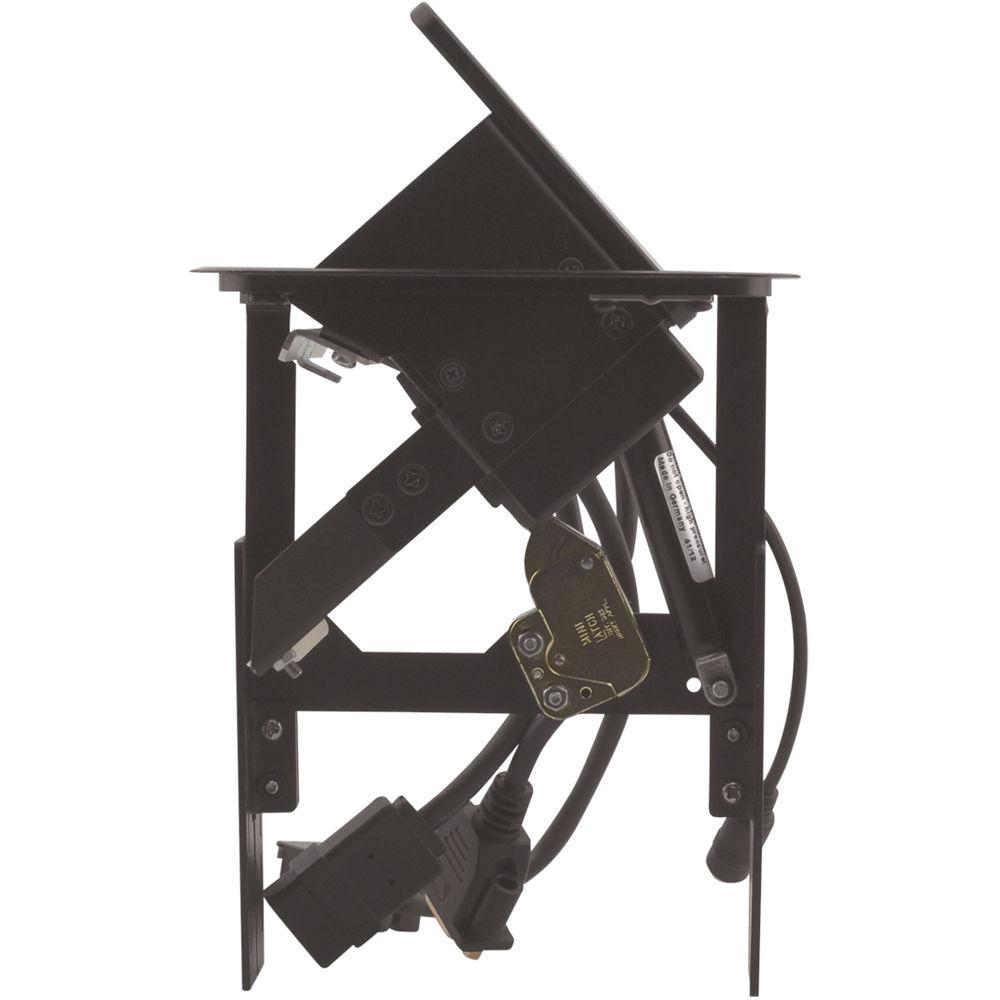

Product description Reduce cable clutter with the black Kramer TBUS-201xl Pop-Up Table-Mounted Interface Panel. It is designed to provide a simple connectivity solution by consolidating HDMI, VGA, Ethernet, and 1/8" terminals into a single panel that can be popped up when needed and hidden when it's not in use. It can be customized to your specific needs, with the ability to add power connectivity with additional optional equipment. A cardboard cutout template is included to simplify installation. - Pneumatic Lift
- The panel opens and closes by pressing down on the cover and is designed to sit flush with the table when not in use.
- Rectangular Design
- The anodized aluminum enclosure is engineered to be sturdy and provide maximum connectivity in a small footprint.
- Installation
- You will need tools to cut a 5.2 x 4.7" rectangular hole in the surface of the furniture.
- Optional Power Input
- Universal, USA, European, and other worldwide power sockets are available and sold separately.
- Additional Features
-
- Helps in keeping cables organized on the tabletop
- Engineered for easy installation
- Customizable design
- Suitable for use in boardrooms, conference rooms, classrooms, and training facilities
In the Box Kramer TBUS-201xl Pop-Up Table-Mounted Interface Panel (Black) Cardboard Template Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TBUS-201xl Pop-Up Table-Mounted Interface Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TBUS-201XL(B) Specs | Ports | 1 x HDMI
1 x 15-pin VGA
1 x Ethernet RJ45
1 x 1/8" (3.5 mm) | | Power Connectors | Optional, not included | | Fuse Rating | T 6.3 A, 250 V | | Operating Conditions | Temperature: 41 to 113°F (5 to 45°C)
Humidity: 10 to 90% RHL, non-condensing | | Storage Conditions | Temperature: -4 to 158°F (-20 to 70°C)
Humidity: 5 to 95% RHL, non-condensing | | Construction Material | Top Plate: Sand-blasted anodized aluminum | | Compliance | CE qualified | | Cutout Size | 5.2 x 4.7" (133 x 120 mm) | | Desktop Thickness Range | Up to 3" (7.3 cm) | | Dimensions (W x H x D) | With Outer Rim: 5.71 x 6.81 x 5.2" (14.5 x 17.3 x 13.2 cm)
Without Outer Rim: 5.24 x 6.81 x 4.72" (13.3 x 17.3 x 12 cm) | | Weight (Approximate) | 1.87 lb (0.85 kg) without mounting brackets
2.65 lb (1.2 kg) with mounting brackets | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 8.6 x 8.3 x 7.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
