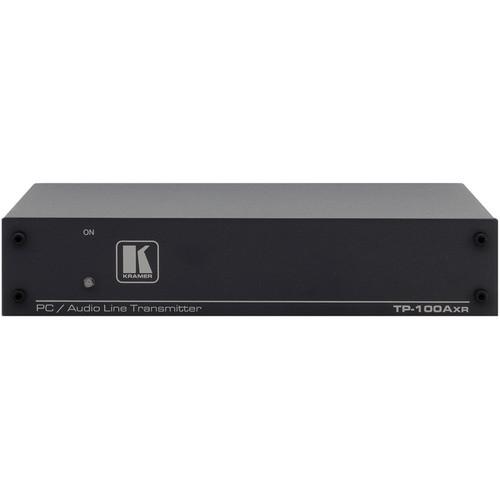

Product description The Kramer TP-100AXR Computer Video & Audio over Twisted Pair Transmitter is a device for sending VGA computer video signals and stereo audio over twisted pair CAT-5 cables. 15-pin VGA is capable of carrying very high resolutions of analog component RGBHV signals, but its transmission distance is limited. For sending VGA and associated audio signals across a facility, one excellent option is converting the signal for transmission over a CAT-5 cable. This enables the signal to travel distances in the hundreds of feet. The TP-100AXR is a PC / audio stereo line transmitter that receives from a computer source an RGBHV video signal and an unbalanced stereo analog audio signal, and transmits them over CAT-5 cable to up to two receivers (not included), such as the TP-200AXR, for further conversion – to DVI, for instance, or back to VGA. The transmitter converts the unbalanced audio signal to a digital audio (S/PDIF) stream before transmitting in order to preserve the quality of the signal. (The audio can come from any source, and not necessarily the computer video source.) Kramer recommends using shielded twisted pair cables for best results. - Supported resolutions up to and including WUXGA (1920 x 1200)
- For monitoring near the video and audio source(s), loop output for VGA HD15 and stereo audio enable the connection of a local display and an audio device that accepts 3.5mm mini jack input
- Transmission range up to 640 ft (200 m). Greater distances are possible depending on resolution and cable
- Power Connect feature allows both the transmitter and a receiver (not included) to be powered from the transmitter's 12V DC power source when the devices are within 150 ft (50 m) of each other, as long as the cable can carry power
- Two similar-sized units can be rack mounted side-by-side in a 1U rack space, using an optional RK-1 adapter (not included)
- Compatible Kramer receivers: TP-122, TP-124, TP-126, TP-200AXR, TP-305A, TP-310A, TP-46, TP-50, VS-81ETH
In the Box Kramer TP-100AXR Computer Video & Audio over Twisted Pair Transmitter Power Adapter (12V DC Input) User Manual 7 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-100AXR Computer Video & Audio over Twisted Pair Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-100AXR Specs | | | Ports | Transmitter:
1 x HD15 VGA (Input)
1 x 3.5 mm Audio (Input)
2 x RJ45 Ethernet (Output)
1 x HD15 VGA (Output)
1 x 3.5 mm Audio (Output) | | Supported Resolutions | 1920 x 1200 | | | | Bandwidth | 20 kHz (Audio) | | Signal-to-Noise Ratio | 60 dB (Video)
89 dB (Audio) | | | | DC Input Power | 12 VDC at 0.86 A | | | | Dimensions | 1.8 x 8.6 x 7.0" / 16.3 x 4.4 x 21.5 cm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 13.6 x 8.5 x 2.0" |
