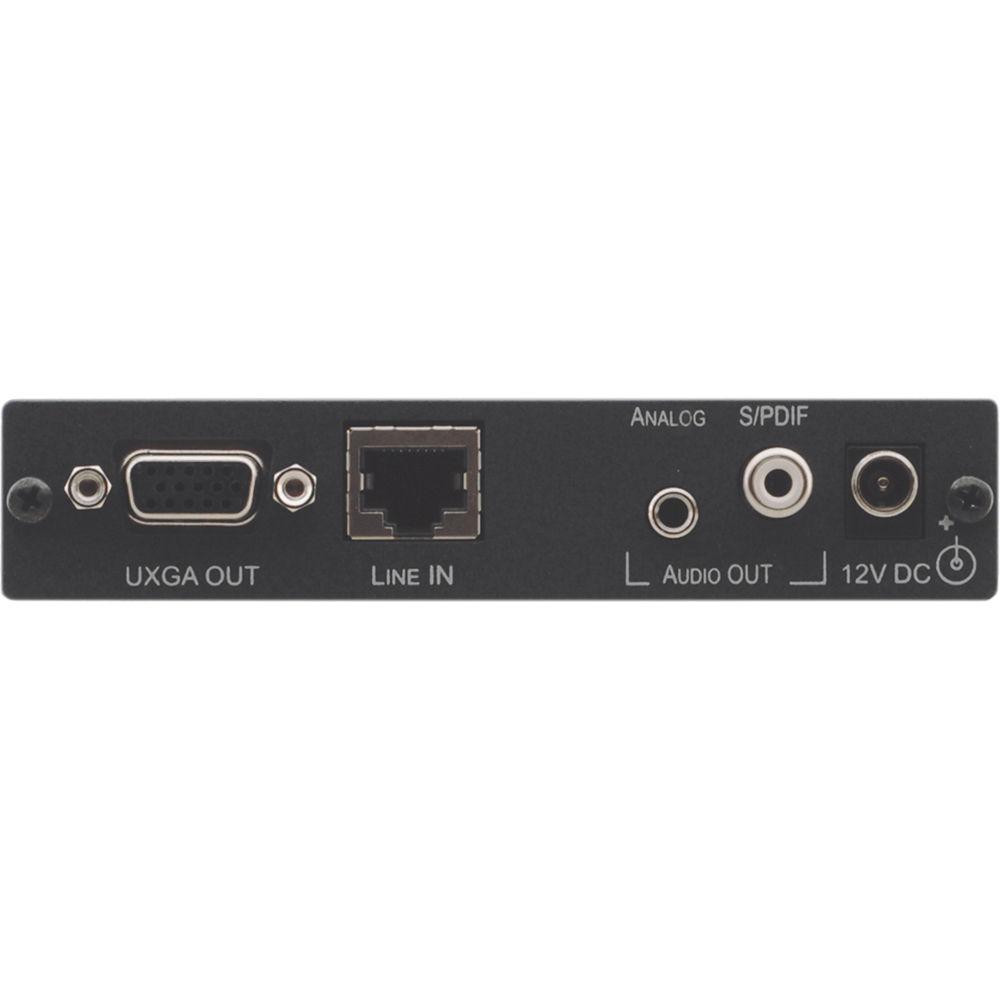

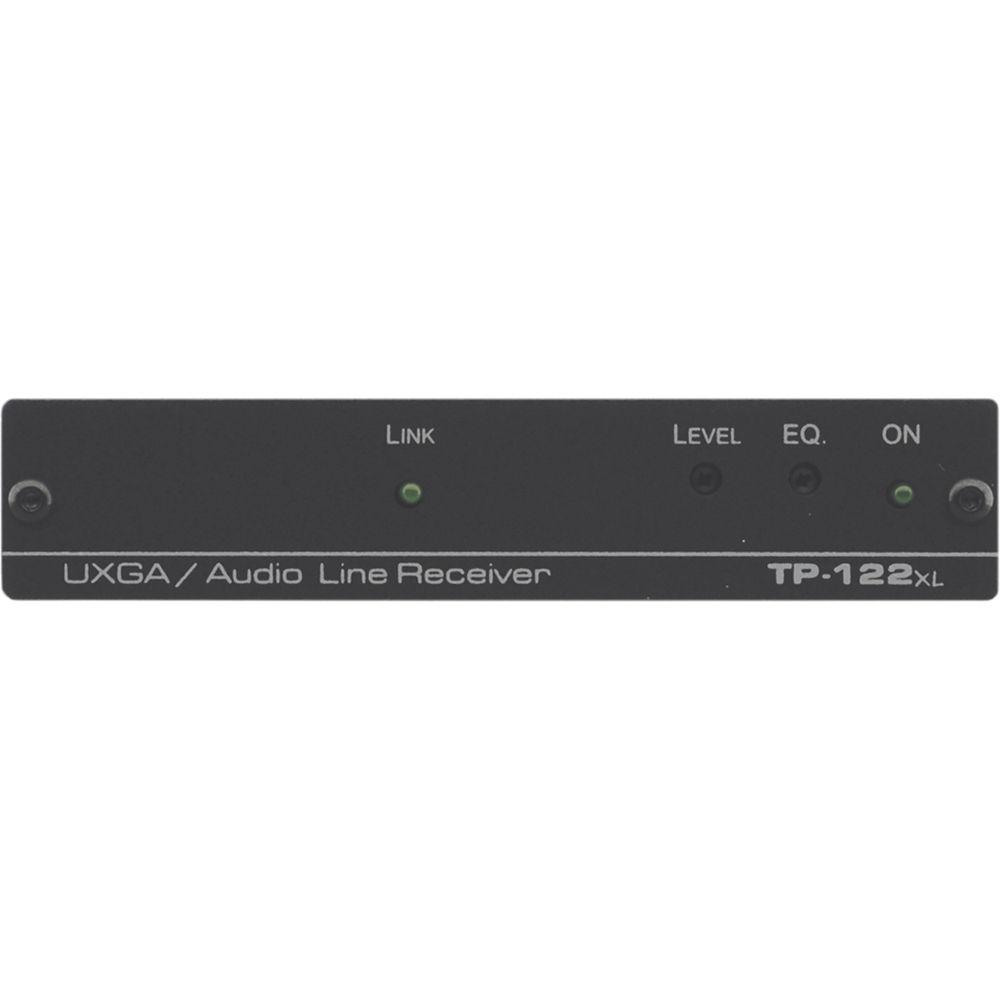

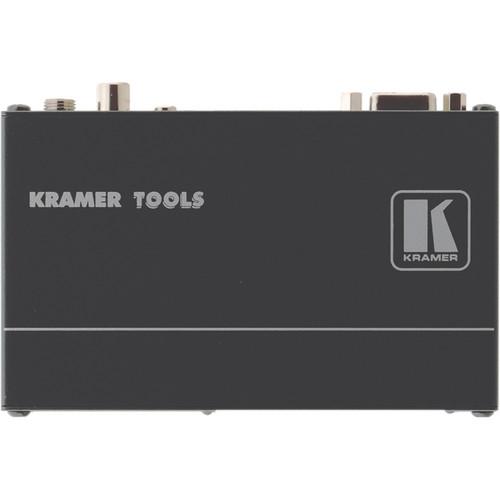

User Manual for Kramer TP-122XL Computer Video & Stereo Audio over Twisted Pair Receiver Click to enlarge the picture
Contents of the user manual for the Kramer TP-122XL Computer Video & Stereo
- Product category: KVM Extenders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Extenders
 |
User manual for the Kramer TP-122XL Computer Video & Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The TP-122XL Computer Video & Stereo Audio over Twisted Pair Receiver from Kramer Electronics is a high-performance twisted pair receiver for computer graphics video and unbalanced stereo audio signals. It converts the CAT 5 twisted pair cable from the TP-121XL transmitter to UXGA video, unbalanced stereo and S/PDIF audio signals. - Max Resolution-UXGA & 1080p
- Interference Protection - Increased level of protection against noise, spikes, and interference in adverse environments
- Level (gain) and Equalization (peaking) Adjustment
- Power Connect System - A single connection to the transmitter or the receiver powers both units when the devices are within 200' of each other.
In the Box Kramer TP-122XL Computer Video & Stereo Audio over Twisted Pair Receiver Power Adapter (12 VDC output) 4 x Rubber Feet Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-122XL Computer Video & Stereo Audio over Twisted Pair Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-122XL Specs | Input | 1 x UXGA on a 15-pin HD connector; 1 x 3.5 mm mini jack (unbalanced stereo) | | Output | 1 x RJ-45 connector (twisted pair) | | Resolution | Up to WUXGA and 1080p | | Audio Bandwidth | 20 Hz - 20 kHz @-3dB | | Audio S/N Ratio | 84 dB | | Total Gain | Audio: Analog/analog:0 dB. Analog/SPDIF: -12 dBFS | | Coupling | AC | | THD + N | <0.02% | | Cable Type | CAT 5; UTP (un-shielded twisted pair) or STP (shielded twisted pair) | | Power Consumption | 12 VDC, 220 mA (360 mA when powering both devices) | | Range | More than 820' (250 m) | | Operating Temperature | 32° to 104° F (0° to +40° C) | | Dimensions (W x D x H) | 4.76 x 2.83 x 0.95" (12.1 x 7.18 x 2.42 cm) | | Weight | Approx 0.44 lb (0.2 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.1 x 4.8 x 3.5" |
