User Manual for Kramer TP-126xl VGA with Stereo Audio and RS-232 over Ethernet Click to enlarge the picture
Contents of the user manual for the Kramer TP-126xl VGA with Stereo Audio
- Product category: KVM Extenders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Extenders
 |
User manual for the Kramer TP-126xl VGA with Stereo Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

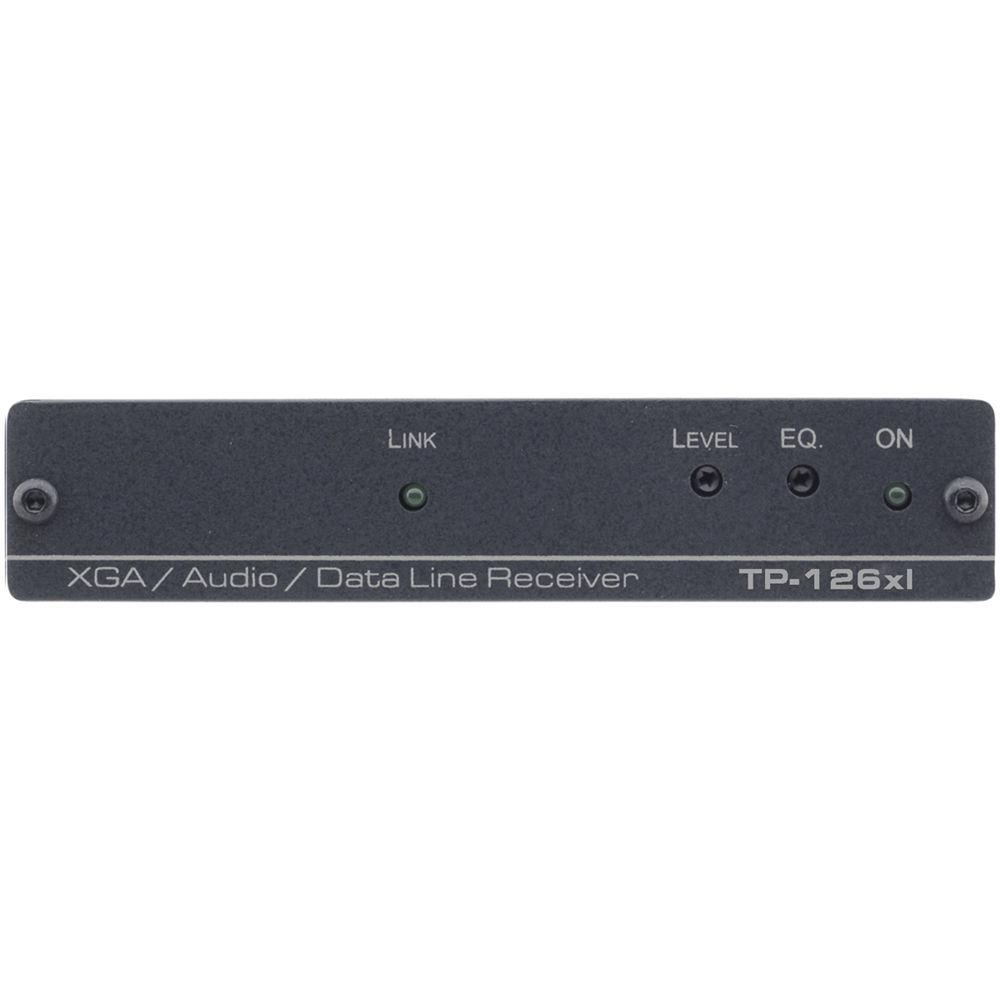

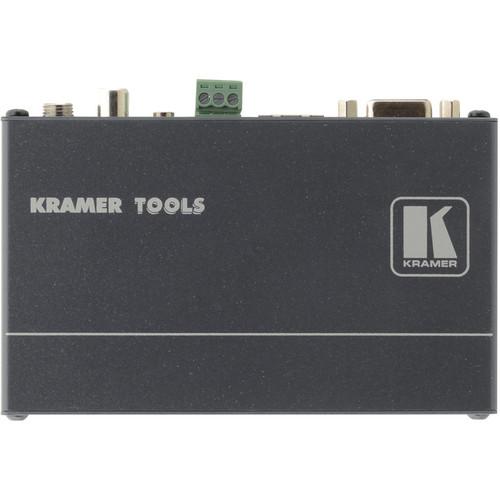

Product description The Kramer TP-126xl VGA with Stereo Audio and RS-232 over Ethernet is a receiver balun that, when paired with a compatible transmitter such as the TP-125xl, allows you to send VGA video, RS-232 data and audio up to 820' over a single twisted pair Ethernet cable. It supports computer graphics resolutions up to WUXGA (1920 x 1280) and HDTV component video resolutions up to 1080p. To use component a 15-pin VGA to component adapter cable such as the Kramer C-GM/3RVF is required. In addition to video, the TP-126xl carries two channels of unbalanced analogue audio, S/PDIF digital audio, and RS-232 serial data.
Any Ethernet cable with RJ-45 connectors rated CAT5 or above may be used, however to maintain high resolutions over long cable runs shielded twisted pair (STP) cable such as Kramer's BC-STP products is recommended. - EDID Capture
- Extended Device Identification (EDID) capture allows the TP-126xl to relay EDID data from the display device to the video source to ensure proper synchronization and optimal image quality settings
- Bi-directional RS-232 Interface
- Commands and data can flow in both directions via the RS-232 interface, allowing status requests and control of the destination unit
- Kramer TOOLS Rackmount Option
- Using the RK-3T rack adapter, sold separately, you can mount up to three "Kramer TOOLS"-sized devices in a single 1RU rackspace
In the Box Kramer TP-126xl VGA with Stereo Audio and RS-232 over Ethernet (Receiver) Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-126xl VGA with Stereo Audio and RS-232 over Ethernet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-126XL Specs | | | Ports | Receiver:

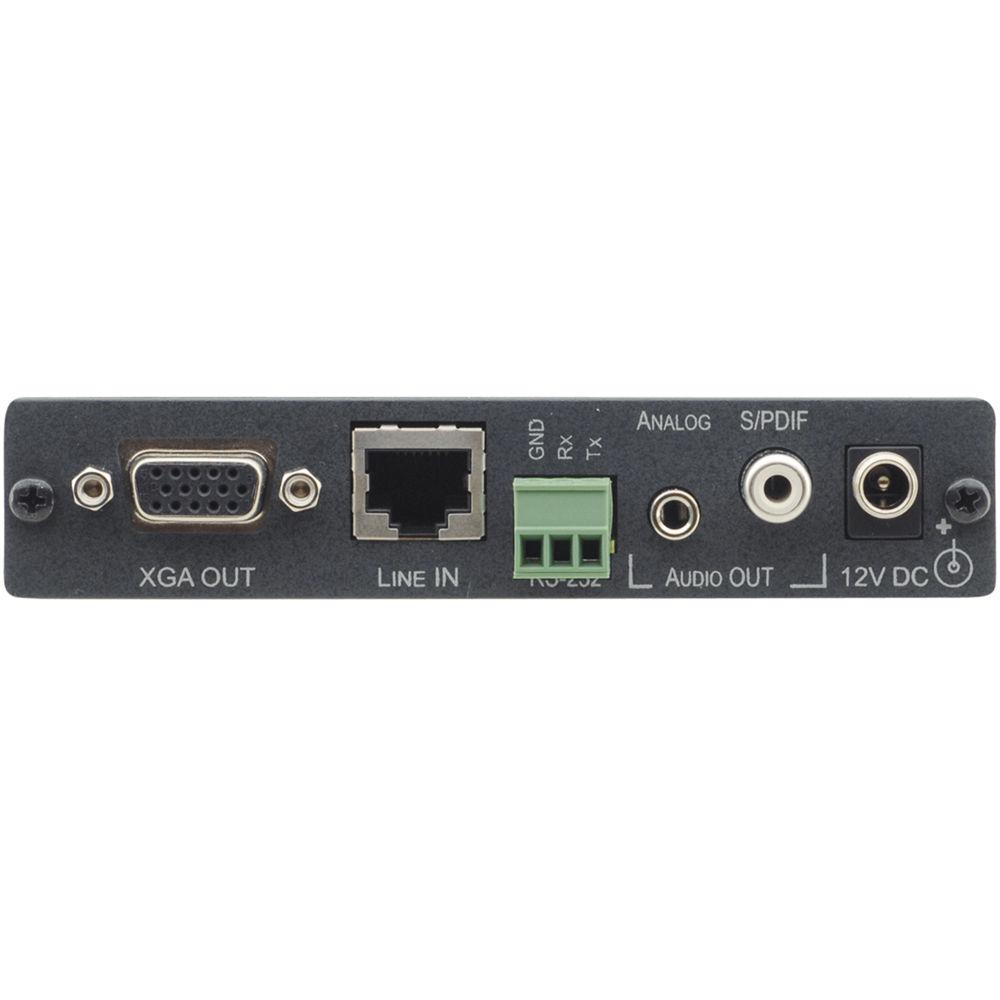

1 x HD15 VGA (Output)
1 x 3.5 mm Audio (Output)
1 x RCA S/PDIF (Output)
1 x Terminal Block RS232 (Output)
1 x RJ45 Ethernet (Input) | | Supported Resolutions | 1920 x 1200 | | Maximum Transmission Distance | 820' / 250 m | | RS232 Data Rate | 115.2 kbps | | | | Bandwidth | 20 Hz to 20 kHz at -3 dB (Audio) | | EQ Signal | 0 to 33 dB at 50 MHz | | Level Signal | -7.5 to 4.4 dB | | Signal Level | 1.1 Vp-p (Video)
2.2 Vp-p (Audio) | | Signal-to-Noise Ratio | 58 to 68.3 dB (Video)
84 dB (Audio) | | | | DC Input Power | 12 VDC at 0.76 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 10 to 90% | | | | Dimensions | 4.8 x 2.8 x 1.0" / 12.0 x 7.0 x 2.4 cm | | Weight | 1.1 lb / 498.9 g | | | | Box Dimensions (LxWxH) | 12.0 x 7.15 x 2.44" |
