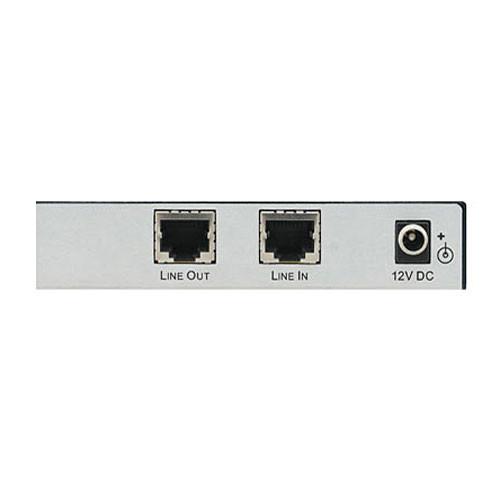

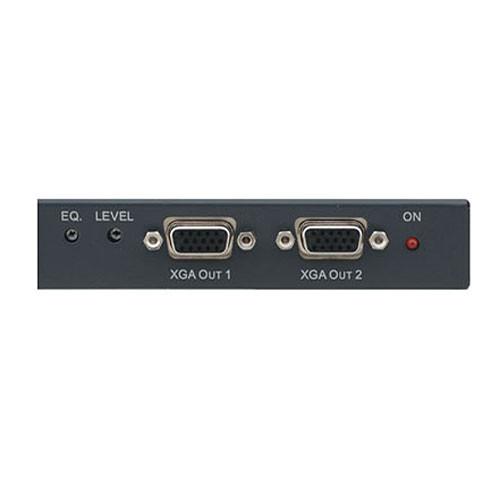

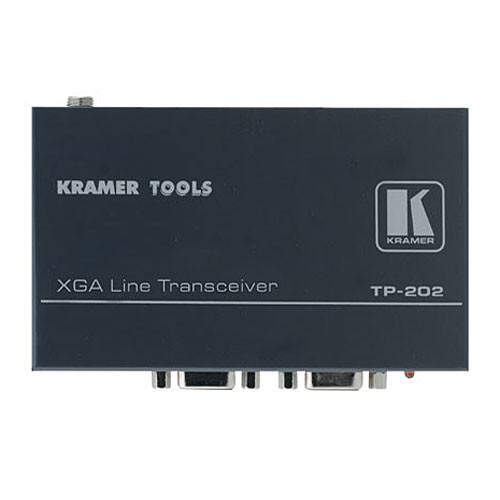

Product description The TP-202 Computer Graphics Video & HDTV over Twisted-Pair Transceiver from Comprehensive/Kramer is a twisted-pair transceiver designed for use with computer graphics video and HDTV signals. It receives either of these signal types over twisted-pair cable and outputs the signal on (2) 15-pin HD outputs and simultaneously retransmits the original twisted-pair signal to another compatible receiver.
It supports resolutions up to UXGA, is HDTV compatible up to 1080p, and has a system range of 150'. The unit may be used with unshielded twisted-pair cable such as CAT5. Other features include recessed level (gain) and EQ (peaking) controls. The unit features Kramer's Power Connect technology, meaning that only one device in the system needs to be connected to an electrical source to power all system units (all units in the system must have Power Connect to use this feature). It also belongs to the Kramer TOOLs family of products and up to (3) units can be mounted side by side in a standard 19" equipment rack by using the optional RK-3T rack kit. Note: This unit must be used in conjunction with another transceiver to achieve a complete solution. - Twisted-Pair Transceiver
- Use this device to transmit computer graphics video and HDTV signals over twisted-pair cabling.
- Range
- This solution has an operating range of 150'.
- Settings
- The unit offers recessed level and EQ controls.
- Standalone or Rackmount
- It is equally well suited for standalone or rackmount use.
In the Box Kramer TP-202 Computer Graphics Video & HDTV over Twisted-Pair Transceiver Transceiver Power Supply Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-202 Computer Graphics Video & HDTV over Twisted-Pair Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-202 Specs | | | Ports | Transmitter:
1 x RJ45 Ethernet (Input)
1 x RJ45 Ethernet (Output)
2 x HD15 VGA (Output) | | Supported Resolutions | 1920 x 1080
1600 x 1200 | | | | EQ Signal | 0 to 36.3 dB at 50 MHz | | Level Signal | -9.6 to 2.3 dB | | Signal Level | 1.5 Vp-p | | Signal-to-Noise Ratio | 69.2 dB @ 5 MHz | | | | DC Input Power | 12 VDC at 0.53 A | | | | Material of Construction | Metal | | Dimensions | 0.9 x 4.8 x 2.8" / 2.4 x 12.1 x 7.2 cm | | Weight | 0.7 lb / 303.9 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.1 x 4.9 x 3.4" |
