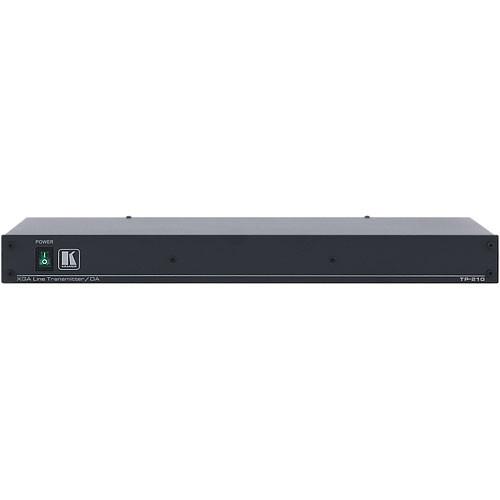

User Manual for Kramer TP-210 1:10 Computer Graphics Video over Twisted-Pair Transmitter with Dual 15-pin HD Outputs Click to enlarge the picture
Contents of the user manual for the Kramer TP-210 1:10 Computer Graphics Video
- Product category: KVM Extenders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Extenders
|
User manual for the Kramer TP-210 1:10 Computer Graphics Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The TP-210 1:10 Computer Graphics Video over Twisted-Pair Transmitter with Dual 15-pin HD Outputs from Comprehensive/Kramer is a high-performance distribution amplifier designed for use with computer-graphics video signals ranging in resolution from VGA through UXGA and higher. It features (1) twisted-pair input and (10) twisted-pair outputs. It also includes (2) computer-graphics outputs on 15-pin HD connectors for local monitoring. This unit is well suited for long-range graphics distribution in schools, hospitals, security systems, and stores, among other possible multimedia applications.
The system offers transmission distances of up to 300'. It can be used with UPT or STP Ethernet cable. This device works with the proprietary Power Connect System, a feature that requires only one unit in a group of interconnected components to be attached to an electrical source to power all units. It has been designed for standalone or rackmount placement. Use of this unit requires the purchase of a separate paired receiver. - Twisted-Pair Transmitter
- Use this unit to transmit a twisted-pair computer graphics signal to up to (10) outputs.
- HDTV
- This device is HDTV compatible
- Rack Ready
- It can be used as a standalone device or placed in an equipment rack.
In the Box Kramer TP-210 1:10 Computer Graphics Video over Twisted-Pair Transmitter with Dual 15-pin HD Outputs Transmitter Power Cord Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-210 1:10 Computer Graphics Video over Twisted-Pair Transmitter with Dual 15-pin HD Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-210 Specs | | | Ports | Transmitter:
1 x HD15 VGA Female (Input)
2 x HD15 VGA (Output)
10 x RJ45 Ethernet (Output) | | Supported Resolutions | 1600 x 1200 | | | | EQ Signal | 0 to 37.6 dB at 50 MHz | | Level Signal | -9.6 to 2.4 dB | | Signal Level | 1.9 Vp-p
1.6 Vp-p | | Signal-to-Noise Ratio | 68.5 to 73.6 dB | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Material of Construction | Metal | | Dimensions | 1.8 x 19.0 x 7.0" / 4.4 x 48.3 x 17.8 cm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 21.75 x 11.0 x 4.25" |
