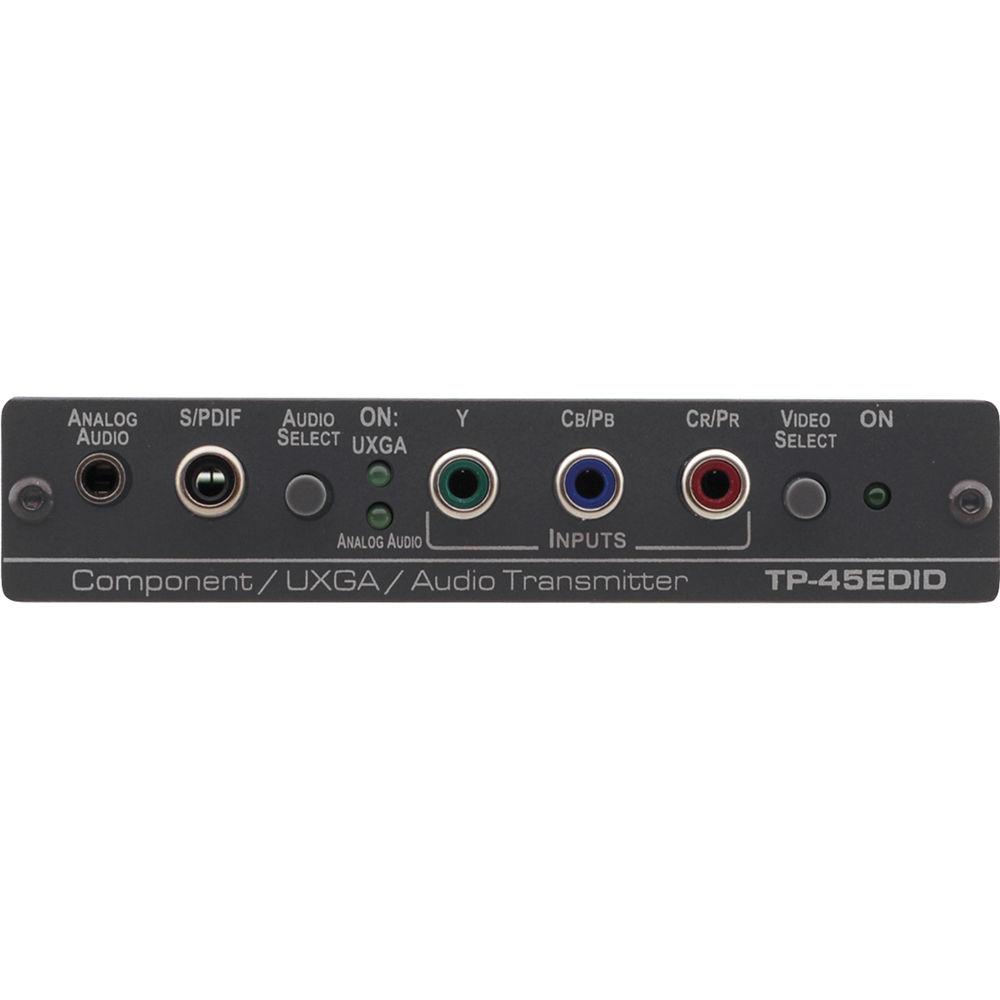

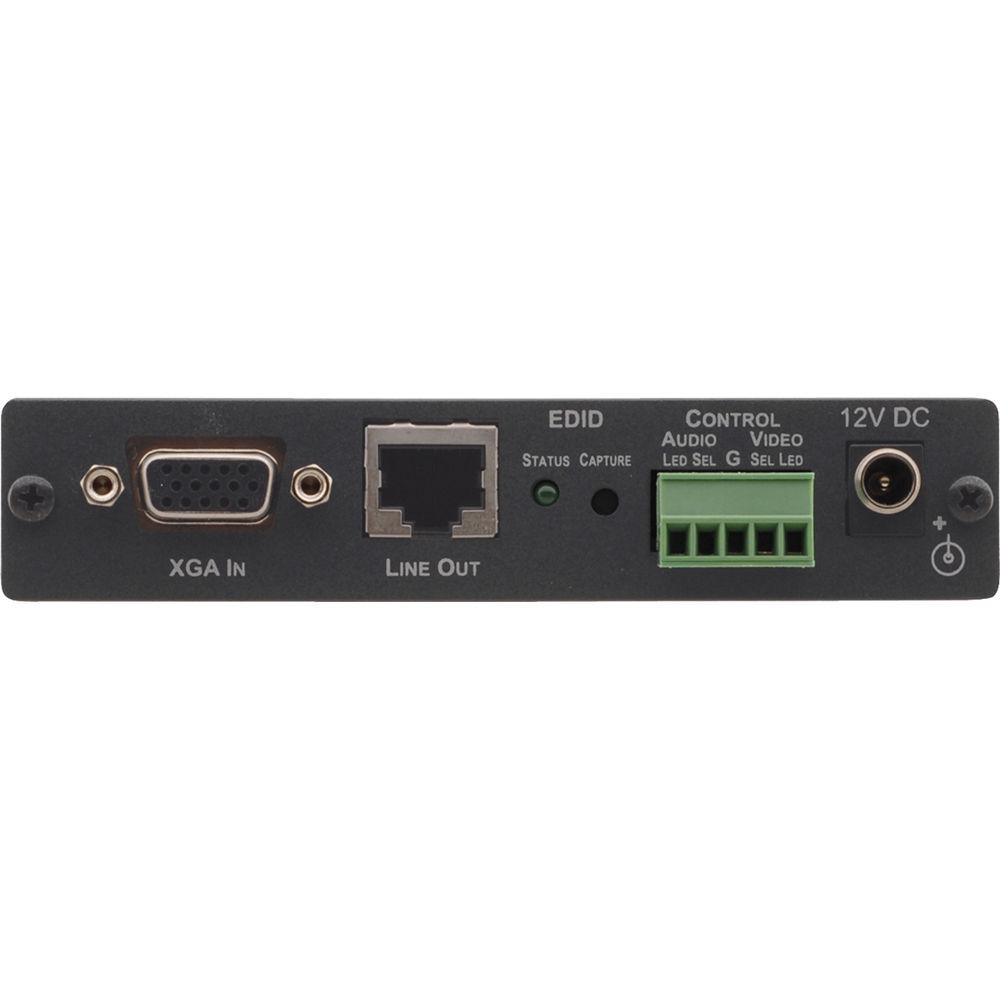

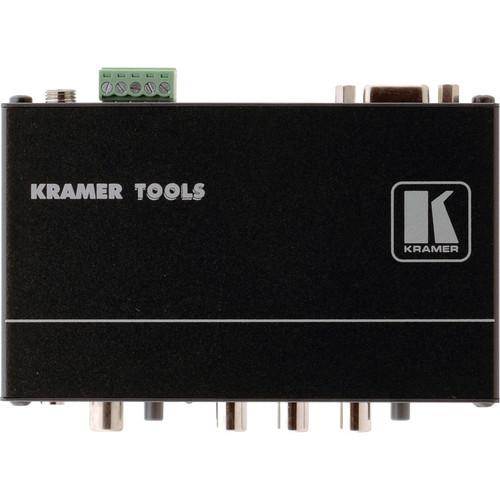

Product description The Kramer TP-45EDID Twisted Pair Transmitter with EDID is a high-performance twisted pair transmitter for computer graphics or component video and unbalanced stereo audio signals. It converts the input signals to a twisted pair signal that it transmits to a compatible receiver. - Maximum Resolution: WUGXA (15-pin HD) & 1080p (component)
- Independently Selectable Video and Audio Sources: XGA or component video, analog or digital audio
- System Range: Up to 330' (100 m)
- Power Connect System: A single connection to the transmitter or the receiver powers both units when the devices are within 150' (50 m) of each other
- Cable: UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5
- EDID Capture: Copies and stores the EDID from a display device
- Controls: Front panel input selector and EDID capture buttons, remote input selector terminal block
- Indicators: Input selection and EDID status LEDs
- Compact Kramer TOOLS: 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter
- Application
Presentation and multimedia applications
Long-range graphics distribution for schools, hospitals, security, and stores
Security and military applications In the Box Kramer TP-45EDID Twisted Pair Transmitter with EDID Power Supply 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-45EDID Twisted Pair Transmitter with EDID in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-45EDID Specs | Input | Video:
1 component video
1 Vpp/75 Ω (Y, Pb, Pr) on 3 RCA connectors
1 XGA on a 15-pin HD connector
Audio:
1 unbalanced stereo audio
0 dBu/50 kΩ, on a 3.5 mm jack
1 S/PDIF audio on an RCA connector | | Output | Video & Audio:
1 twisted pair on an RJ-45 connector | | Maximum Input Level | XGA: 1.7 Vpp on 75 Ω, DC coupling
Y, Pb, Pr: 1.05 Vpp on 75 Ω, AC coupling | | Return Loss | -18 dB | | Video Resolution | Up to UXGA, 1080p | | S/N Ratio | 69 dB RMS @ 5 MHz | | K-Factor | 0.2% | | Crosstalk | Isolation: -43 dB @ 5 MHz | | Audio Bandwidth | 20 Hz to 20 kHz | | Noise | Transient Noise Detection (TND): 0.33% @ 1 kHz | | Sample Rate Conversion | 48 kHz | | Resolution Conversion | 24 bits | | Power Consumption | Maximum: 12 VDC, 920 mA (TP-46N, TP-45EDID pair when powered from the TP-45EDID via power connect, CAT 5, 196.85' / 60 m)
TP-45EDID Self Current: 110 mA | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -49 to 162°F (-45 to 72°C) | | Humidity | 10 to 90% RH (non-condensing) | | Dimensions (W x D x H) | 4.7 x 2.81 x 1.09" (12 x 7.15 x 2.76 cm) | | Weight | 0.67 lb (0.3 kg) |
