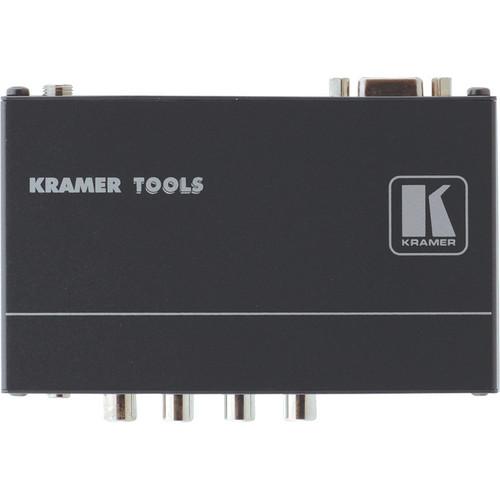

Product description The Kramer TP-46N is a twisted pair receiver compatible with the TP-45 transmitter. It accepts Component video (YUV), computer graphics video and unbalanced stereo audio, or S/PDIF audio from up to 330 ft over a single UTP or STP cable, such as CAT5. It supports up to 1080p resolution over Component and WUGXA resolution over VGA.
A single power supply can be used to power this receiver and the optional transmitter when the two units are within 150 ft of one another. Three receivers can be rack-mounted side−by−side in a 1U rack space using an optional RK−3T rack adapter. In the Box Kramer TP-46N Twisted Pair Receiver Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-46N Twisted Pair Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

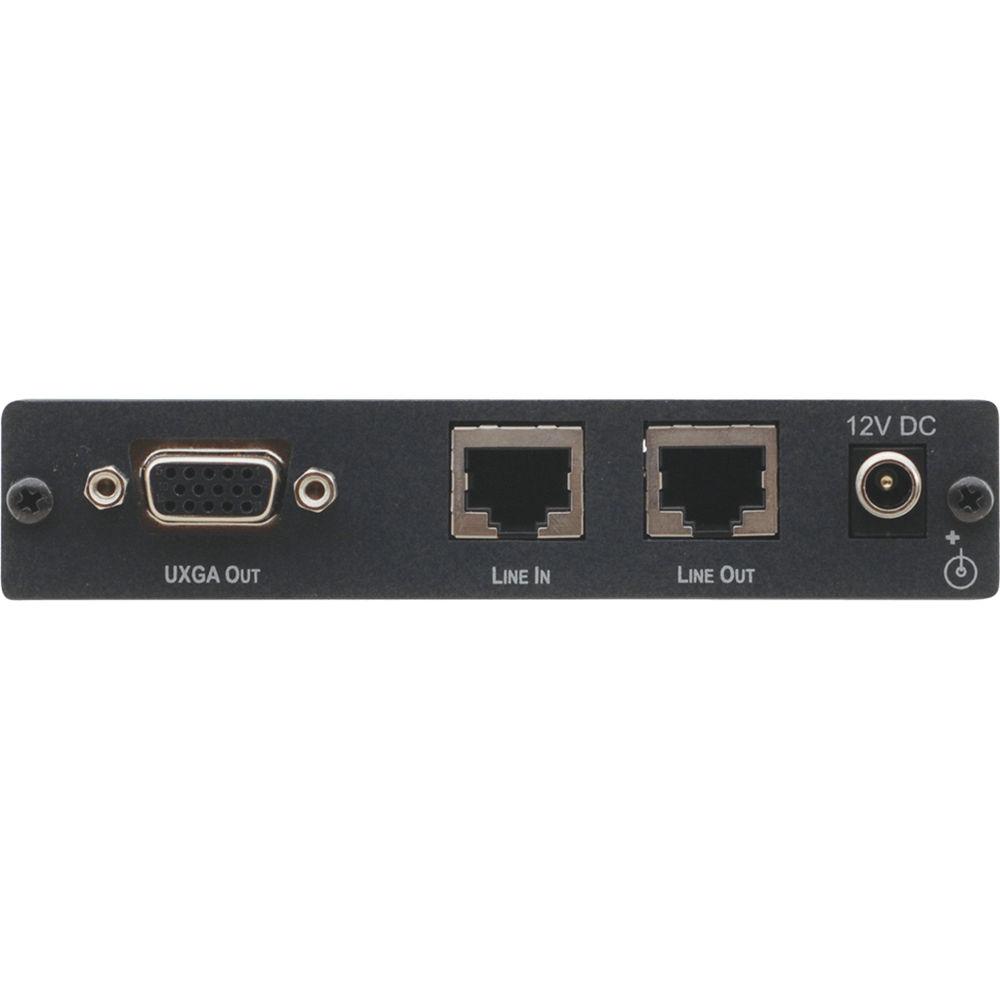

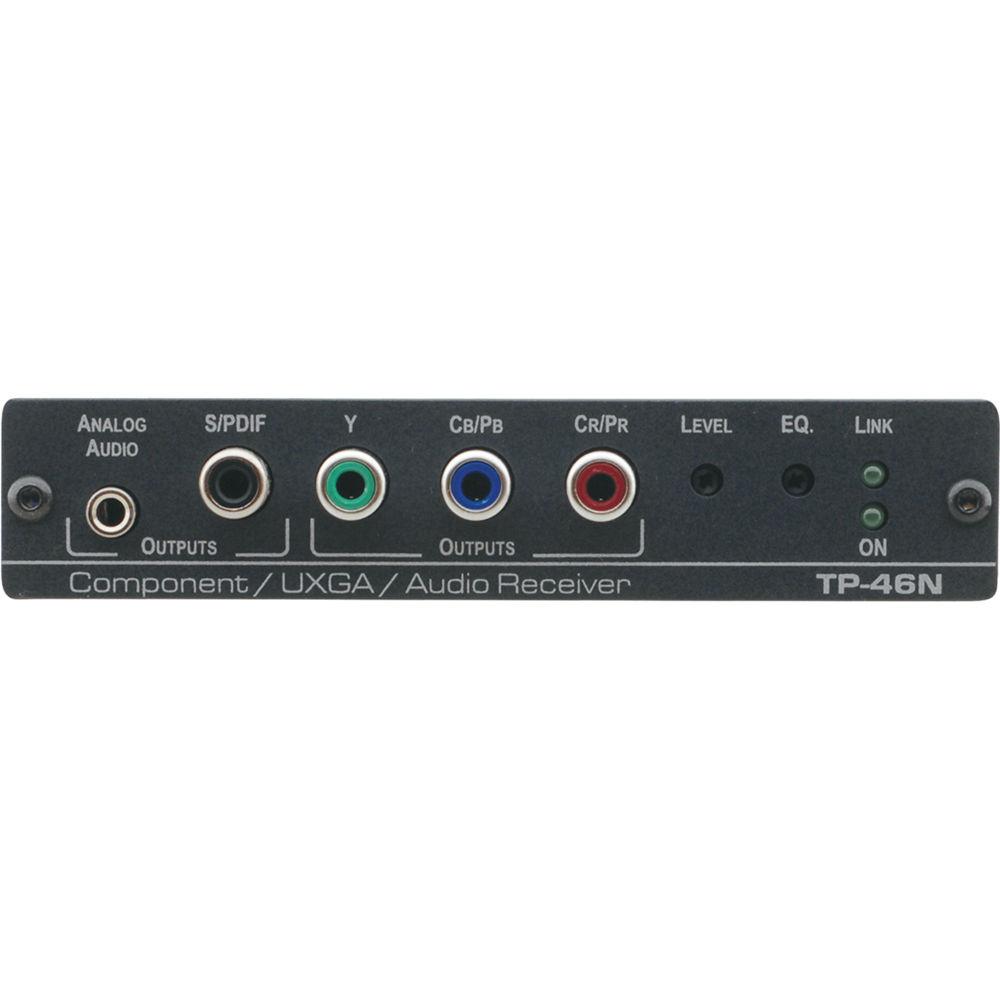

Technical parametersKramer TP-46N Specs | Input | 1 CAT 5 LINE IN on an RJ−45 connector (video/audio) | | Output | 1x CAT 5 line extension on an RJ−45 connector (video/audio)
1x VGA/UXGA 1 Vpp/75 Ω on a 15−pin HD connector
1x Stereo analog audio, 0 dBu/1 k Ω, 0.5 V/75 Ω, on a 3.5 mm jack
1x Digital S/PDIF audio on an RCA connector
1x Component 1 Vpp/75 Ω (Y, Pb, Pr) on 3 RCA connectors | | Video Input Level | VGA: 1.2 Vpp on 75 Ω, DC coupling
Y,Pb,Pr: 1.05 Vpp on 75 Ω, AC coupling | | Video Output Level | VGA: 1.2 Vpp on 75 Ω, DC coupling
Y,Pb,Pr: 1.05 Vpp on 75 Ω, AC coupling | | Return Loss | -18 dB | | Maximum Resolution | Up to UXGA; 1080p | | Video S/N Ratio | 61 dB RMS unweighted | | K Factor | 0.2% | | Isolation | Video: -43 dB at 5 MHz | | Analog Audio | Maximum Input Level: 4 dBu on 50 kΩ, AC coupling
Maximum Output Level: 4 dBu on 1 kΩ, DC coupling | | Audio Bandwidth | 20 Hz to 20 kHz, @ 0 dBu | | THD + Noise | Audio: 0.33% at 0 dBu @ 1 kHz | | S/PDIF | Maximum Input Level: 1 Vpp on 75 Ω, AC coupling
Maximum Output Level: 0.7 Vpp on 75 Ω, AC coupling | | Sample Rate Conversion | 48 kHz | | Resolution Conversion | 24 bits | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | −40 to 158°F (−40 to 70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Power Consumption | 12 VDC, 830 mA | | Dimensions | 4.7 x 2.8 x 1.1" (12 x 7 x 2.8 cm) | | Weight | 0.7 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 12.0 x 7.15 x 2.44" |
