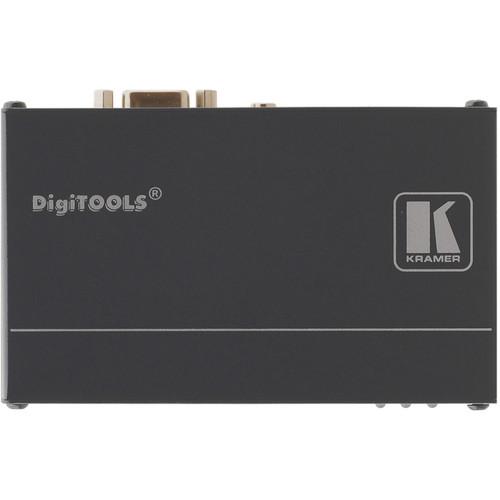

User Manual for Kramer TP-574 HDMI, Bi-Directional RS-232 & IR over Twisted Pair Receiver Click to enlarge the picture
Contents of the user manual for the Kramer TP-574 HDMI, Bi-Directional RS-232 &
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
|
User manual for the Kramer TP-574 HDMI, Bi-Directional RS-232 & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer TP-574 HDMI, Bi-Directional RS-232 & IR over Twisted Pair Receiver is a device for receiving converted HDMI plus control commands via twisted pair (e.g. Cat 5) cables and converting them back to HDMI, RS-232, and IR signals for output to a display device. Used with a Kramer TP-573 transmitter (not included), the TP-574 receiver extends the range of an HDMI source so that it can feed a display across a facility, for instance. While HDMI cables have an approximate range of 50', Cat 5 cables can carry pristine HDTV video and associated audio signals over hundreds of feet. The range of the system's transmission varies based on the signal resolution, graphics card, display, and cables used. Kramer has tested the device with their own cables. The device receives signals from up to 295' away at 1080i, or up to 98' at 1080p using a shielded BC-DGKat524 cable. With a shielded BC-DGKat623 cable, the range extends to 295' at 1080i or up to 230' at 1080p. Using a shielded BC-DGKat723 cable the range is up to 330' at 1080i or up to 295' at 1080p. The TP-574 supports bi-directional RS-232 and infrared signals, which means that a computer source, for example, can be used to control and receive data from a display device hundreds of feet away. Control signals are received with converted video and audio signals over the twisted pair cable and outputted to the display device. By supporting HDMI, the TP-574 outputs video and multi-channel audio to an HDMI display such as a plasma or LCD flat-panel TV set or a computer display. Note: The use of shielded twisted pair cables is required. - Powered from the optional transmitter end, so a power supply is not required
- HDMI 1.4 includes within the spec support for 3D pass-through, Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, and DTS-HD. HDMI supports existing high-definition video formats (720p, 1080i, and 1080p60), as well as standard definition formats such as NTSC or PAL
- Passes EDID and HDCP signals from source to display
- Passes Hot Plug Detect (HPD) signals from the display device to the source
- Power Connect feature allows both the receiver and the transmitter (not included) to be powered from the transmitter's 12 VDC power source when the devices are within 150 ft (50 m) of each other, as long as the cable can carry power
- TP-573 / TP-574 system goes into standby mode when the HDMI input is not connected
- Three similar-sized units can be rack mounted side-by-side in a 1U rack space, using an optional RK-3T adapter (not included)
In the Box Kramer TP-574 HDMI, Bi-Directional RS-232 & IR over Twisted Pair Receiver Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-574 HDMI, Bi-Directional RS-232 & IR over Twisted Pair Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-574 Specs | Input | 1x Cat 5 on an RJ-45 connector | | Outputs | 1x HDMI connector
1x bi-directional IR port on a 3.5 mm mini jack
1x bi-directional RS-232 port on a 9-pin D-sub connector | | Bandwidth | Up to 1.65 Gb/s per graphic channel | | Compliance | HDMI (up to 1.4) and HDCP | | Baud Rate | 38400 kb/s maximum for RS-232 and IR | | Power Source | 12 VDC, 510 mA | | Dimensions (HxWxD) | 1.0 x 4.8 x 2.8" (2.4 x 12.1 x 7.2 cm) | | Weight (Approx.) | 0.7 lb (0.3 kg) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.1 x 4.9 x 3.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
