User Manual for Kramer TP-575 1:2 Twisted Pair & HDMI Line Driver & Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer TP-575 1:2 Twisted Pair &
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
 |
User manual for the Kramer TP-575 1:2 Twisted Pair & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

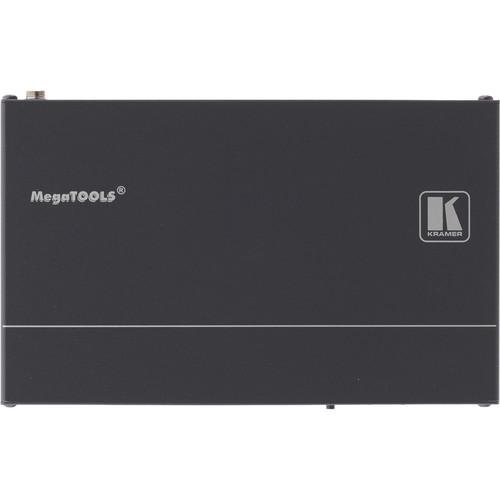

Product description The Kramer TP-575 1:2 Twisted Pair & HDMI Line Driver & Distribution Amplifier is a DGKat line driver that receives a twisted pair signal and outputs both HDMI and a twisted pair signal to a compatible receiver. - Maximum Data Rate: 4.95 Gbps (1.65 Gbps per graphic channel)
- DGKat Signal Integration: Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables 1
Please Note: Kramer DGKat cables designed specifically for optimum performance are strongly recommended close - HDMI Support: x.v.Color, HDMI uncompressed audio channels, Dolby TrueHD, and DTS-HD
- EDID Pass-Through: Passes EDID signals between the source and display
- HPD Pass-Through: Passes Hot Plug detect signals from display to source
- Active input/output LED indicators
- System Range:
Up to 295' (90 m) at 1080i or up to 98' (30 m) at 1080p on shielded BC-DGKat524 cable
Up to 295' (90 m) at 1080i or up to 230' (70 m) at 1080p on shielded BC-DGKat623 cable
Up to 330' (100 m) at 1080i or up to 295' (90 m) at 1080p on shielded BC-DGKat7a23 cable 2 Please Note: Note1: For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables.
Note2: The transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground. close - Compatible Receivers: PT-572+, TP-574, TP-575, TP-576
- Output Signal Reclocking: Daisy chains up to 6 receivers for maximum range of 1968.5' (600 m) using shielded BC-DGKat7a23 cable at 1080i 3
Please Note: Other cables and resolutions are mentioned in System Range feature above close - Power Connect System: A single connection to the TP-575 powers the transmitter, receiver, and line driver units
- Compact MegaTOOLS: 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter
- Application
Home theater, presentation, and multimedia applications
Rental and staging In the Box Kramer TP-575 1:2 Twisted Pair & HDMI Line Driver & Distribution Amplifier Power Supply 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-575 1:2 Twisted Pair & HDMI Line Driver & Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-575 Specs | Input | 1 DGKat twisted pair on an RJ-45 connector | | Output | 1 DGKat twisted pair on an RJ-45 connector
1 HDMI connector | | Bandwidth | 4.95 Gbps (1.65 Gbps per graphic channel) | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Controls | EDID SETUP button | | LED Indicators | IN, OUT 1 (line), OUT 2 (HDMI), and ON LEDs | | Power Consumption | 12 VDC, 950 mA | | Dimensions (W x D x H) | 7.4 x 4.5 x 0.9" (18.8 x 11.4 x 2.4 cm) | | Weight | 0.67 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 34.5 x 16.5 x 5.2" |
