Product description The Kramer TP-576 HDMI, Data & IR over Twisted Pair Transceiver is a DGKat twisted pair line driver for HDMI, bi-directional RS-232, and IR signals. The TP-576 transceiver receives an HDMI signal either from a local HDMI source or from a compatible twisted pair transmitter. It decodes the selected signals to the local HDMI, RS-232, and IR outputs and simultaneously transmits them to a compatible twisted pair receiver. - Maximum Data Rate: 4.95 Gbps (1.65 Gbps per graphic channel)
- DGKat Signal Integration: Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables 1
Please Note: Kramer DGKat cables designed specifically for optimum performance are strongly recommended close - HDMI Support: Deep color (on the HDMI input), x.v.Color, HDMI uncompressed audio channels, Dolby TrueHD, and DTS-HD
- I-EDIDPro Kramer Intelligent EDID Processing: Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
- HPD Pass-Through: Passes hot plug detect signals from display to source
- Active input/output LED indicators
- System Range
Up to 295' (90 m) at 1080i or up to 98' (30 m) at 1080p on shielded BC-DGKat524 cable
Up to 295' (90 m) at 1080i or up to 230' (70 m) at 1080p on shielded BC-DGKat623 cable
Up to 330' (100 m) at 1080i or up to 295' (90 m) at 1080p on shielded BC-DGKat7a23 cable 2 Please Note: Note1: For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables.
Note2: The transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground. close - Flexible Control: Front panel, RS-232, & IR switching
- Power Connect System: A single connection to the TP-576 powers the transmitter, receiver, and line driver units

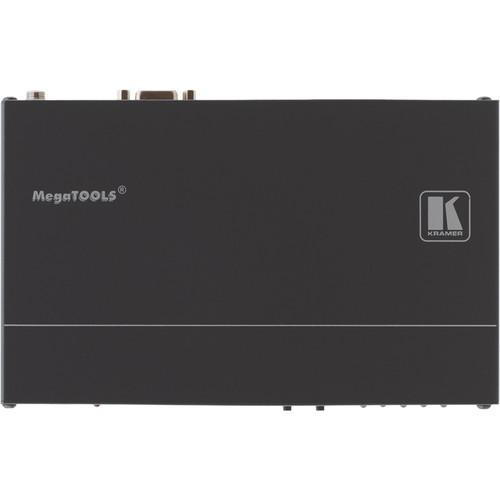

- Compact MegaTOOLS: 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter
- Application
Home theater, presentation, and multimedia applications
Rental and staging In the Box Kramer TP-576 HDMI, Data & IR over Twisted Pair Transceiver Power Supply Bracket Installation Kit 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-576 HDMI, Data & IR over Twisted Pair Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

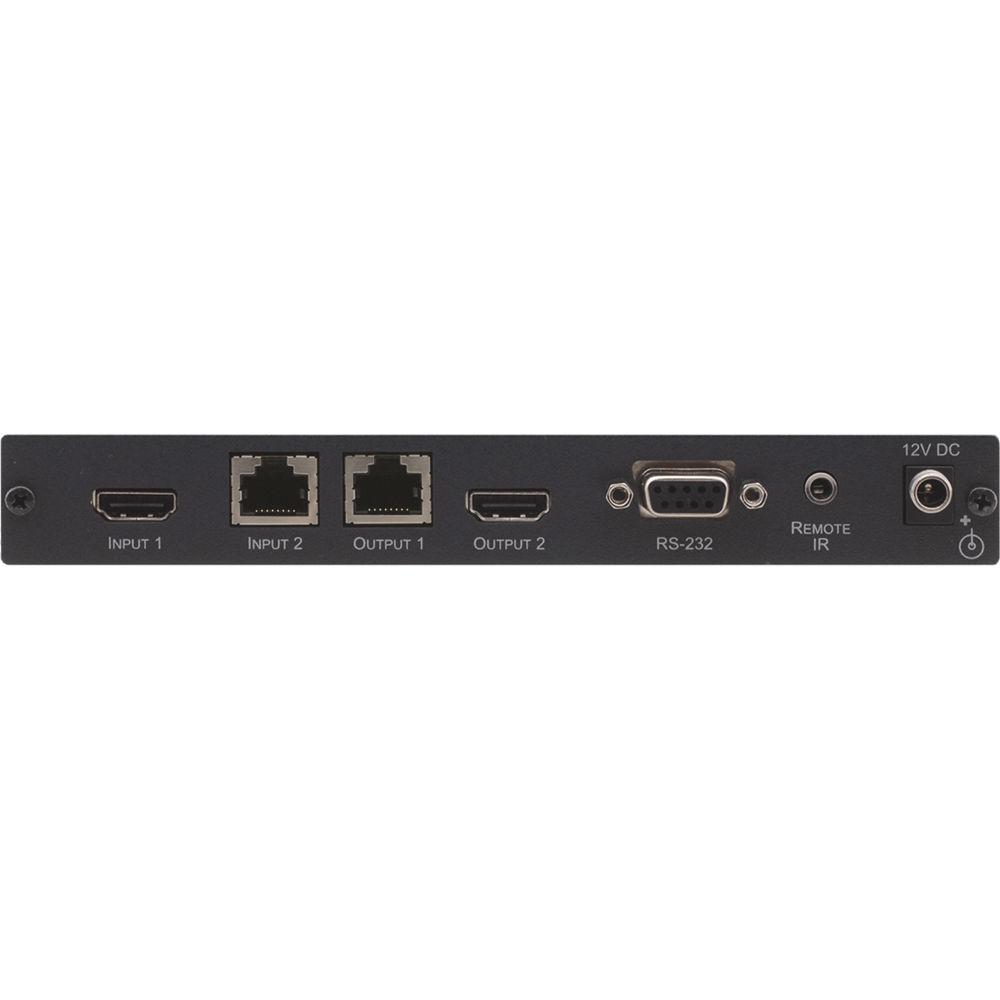

Technical parametersKramer TP-576 Specs | Input | 1 HDMI connector
1 twisted pair on an RJ-45 connector | | Output | 1 HDMI connector
1 twisted pair on an RJ-45 connector | | Ports | 1 bi-directional IR port on a 3.5 mm mini jack

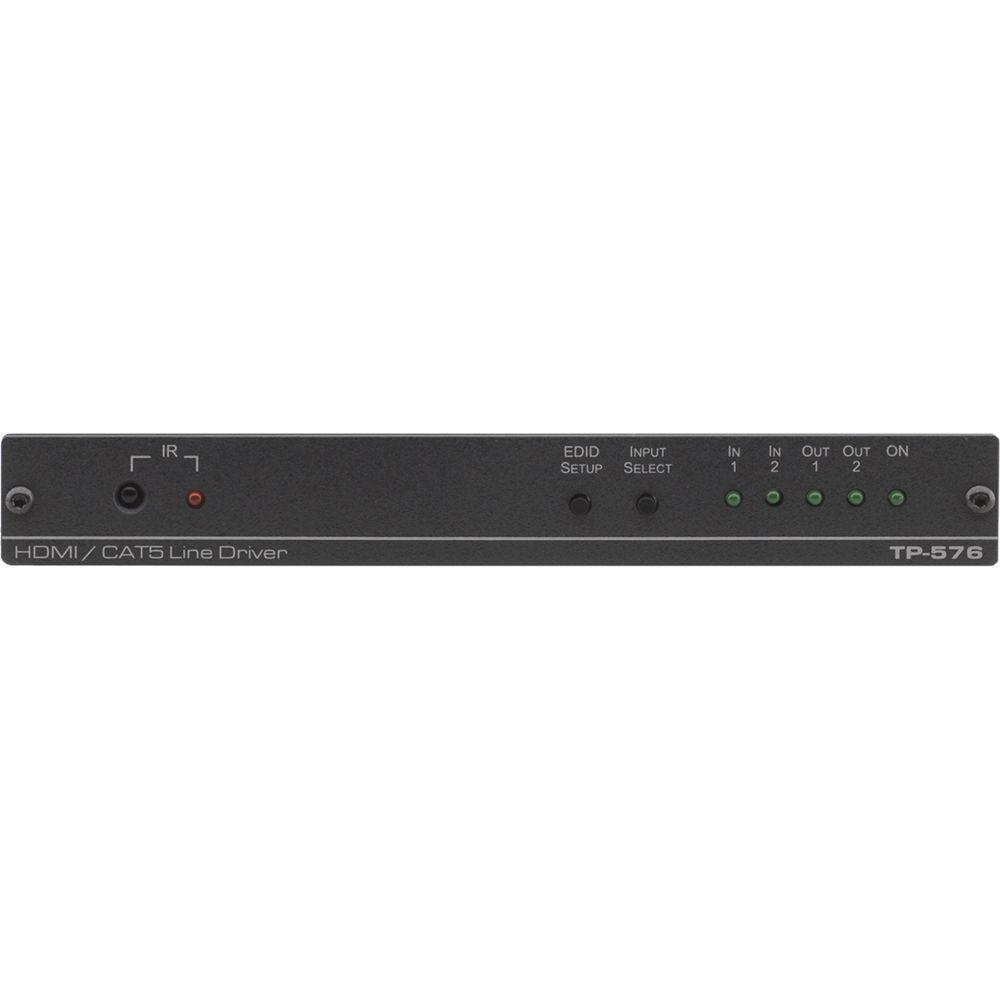

1 bi-directional RS-232 port on a 9-pin D-sub connector (for local control) | | Bandwidth | 4.95 Gbps (1.65 Gbps per graphic channel) | | Compliance With HDMI Standard | Supports HDMI and HDCP | | RS-232 Baud Rate | Up to 38.4 Kbps | | Controls | EDID SETUP button, input select button | | LED Indicators | IN 1, IN 2, OUT 1, OUT 2, and ON LEDs | | Power Consumption | 12 VDC, 950 mA | | Dimensions (W x D x H) | 4.76 x 2.83 x 0.95" (12.1 x 7.18 x 2.42 cm) | | Weight | 0.67 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 18.75 x 11.5 x 2.54" |
