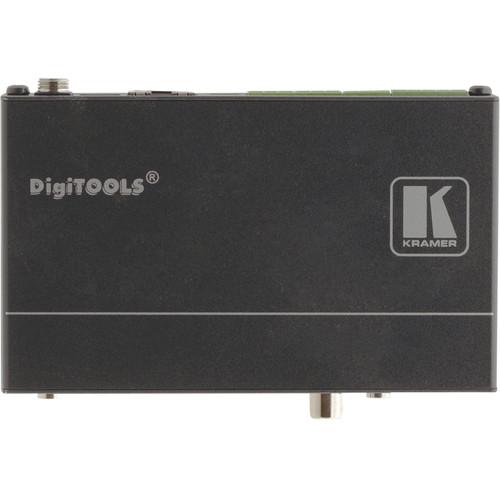

Product description The TP-578H HDMI, Audio & Data over DGKat Twisted Pair Receiver from Kramer receives a DGKat twisted pair signal from a compatible Kramer DGKat transmitter, such as the TP-577VH (sold separately), and decodes it into HDMI, balanced and unbalanced stereo, S/PDIF digital audio, IR, and RS-232 signals. Note: For optimum range and performance, use Kramer's BC−DGKat623 or BC−DGKat7a23 cables. - Uses DGKat Signal Integration technology for converting TMDS as well as control and communication to signals that run over twisted pair cables
- Analog and digital audio de-embedding
- Supports x.v. Color, 3D, and 7.1 multi-channel audio
- Equalization & re-Klocking Technology rebuilds the digital signal to travel longer distances
- Uses K-Link technology to control the device from a remote controller and pass data to external devices
- A single connection to the transmitter or the receiver powers both units
- The higher voltage PowerConnectPlus also powers regular PowerConnect devices via auto−negotiation
- Configurable external control
- LED indicators for mirroring
- Uses STP (shielded twisted pair) cable
- Three units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter
- For use in boardrooms, presentation rooms, and more
In the Box Kramer TP-578H HDMI, Audio & Data over DGKat Twisted Pair Receiver Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-578H HDMI, Audio & Data over DGKat Twisted Pair Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-578H Specs | System Range | Up to 295' (90 m) at 1080i or up to 98' (30 m) at 1080p on shielded BC−DGKat524 cable
Up to 295' (90 m) at 1080i or up to 230' (70 m) at 1080p on shielded BC−DGKat623 cable
Up to 330' (100 m) at 1080i or up to 295' (90 m) at 1080p on shielded BC−DGKat7a23 cable Transmission range depends on signal resolution, graphics card, and display used. The distance using non−Kramer CAT 6 and CAT 7 cables may not reach these ranges | | Cable Required | STP (shielded twisted pair) Use only shielded cables where both ends of the shield are soldered to ground | | Max Resolution | WUXGA | | Maximum Data Rate | 4.95 Gbps (1.65 Gbps per graphic channel) | | HDMI Support | x.v. Color, 3D, and 7.1 multi−channel audio | | Audio | U/B/D/E | | IR | IR data transceiver | | Input | 1 x RJ-45, DGKat | | Outputs | 1 x HDMI
1 x 3.5 mm mini stereo audio jack, unbalanced
1 x Terminal block, balanced stereo audio
1 x RCA, S/PDIF | | Power Consumption | 12 VDC, 200 mA | | Dimensions | 4.70 x 2.76 x 0.94" (12.0 x 7.0 x 2.4 cm) | | Weight | 0.66 lb (0.3 kg) approx. | | | | Box Dimensions (LxWxH) | 12.0 x 7.15 x 2.44" |
