User Manual for Kramer TP-580R Twisted Pair Receiver Click to enlarge the picture
Contents of the user manual for the Kramer TP-580R Twisted Pair Receiver
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
 |
User manual for the Kramer TP-580R Twisted Pair Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

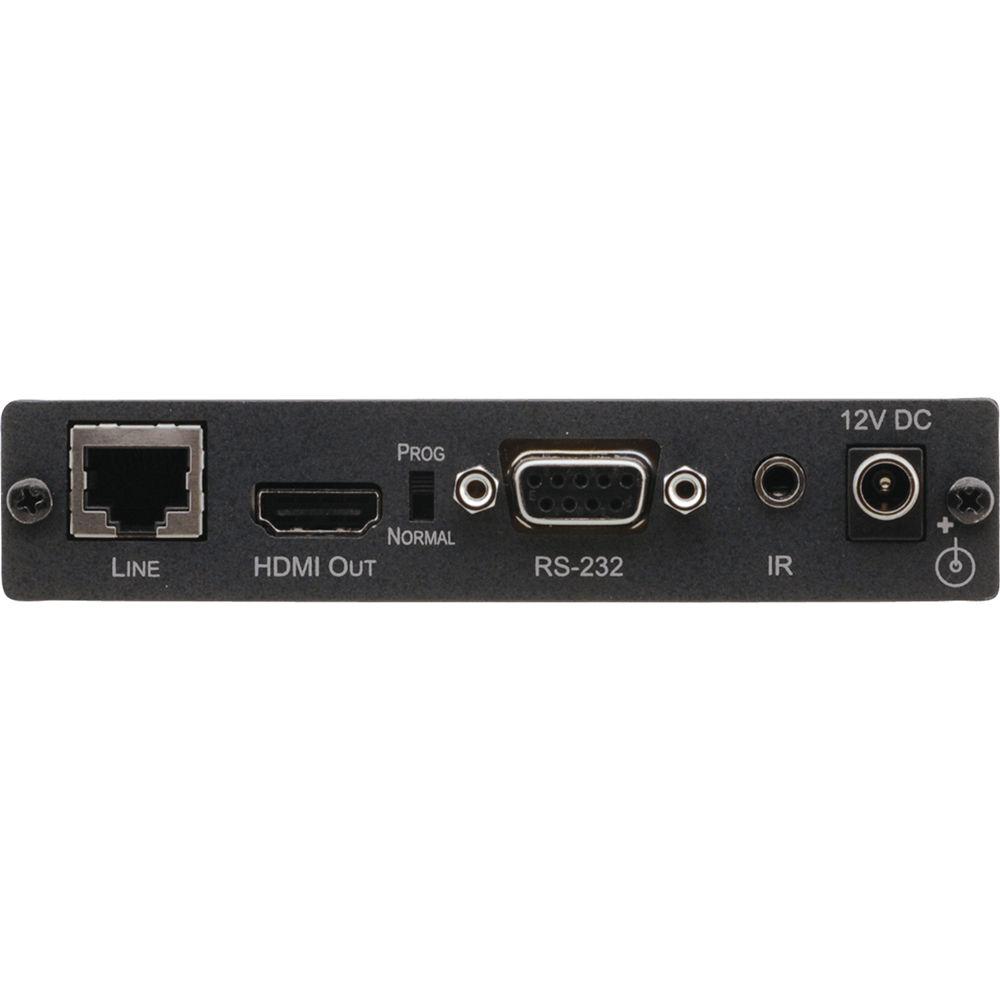

Product description The Kramer Electronics TP-580R Twisted Pair Receiver for HDMI, bidirectional RS−232, and IR signals receives an HDBaseT twisted pair signal from the TP−580T (sold separately) and adapts it back into HDMI, RS−232, and IR connections. It supports transmission of 1080p, 2K, and 4K video signals over a distance of up to 230 feet. - Maximum data rate 10.2 Gb/s (3.4 Gb/s per graphic channel) 1
Please Note: For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. close - HDMI supports deep color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, and CEC
- EDID pass-through passes signal between the source and display
- Receives 1080p, 2K, and 4K video signals over a distance of up to 230' (70m)
- Bidirectional RS-232 & IR interface wherein commands and data can flow in both directions via the RS−232 interface allowing status requests and remote control of the destination unit
- System range up to 230' (70m)

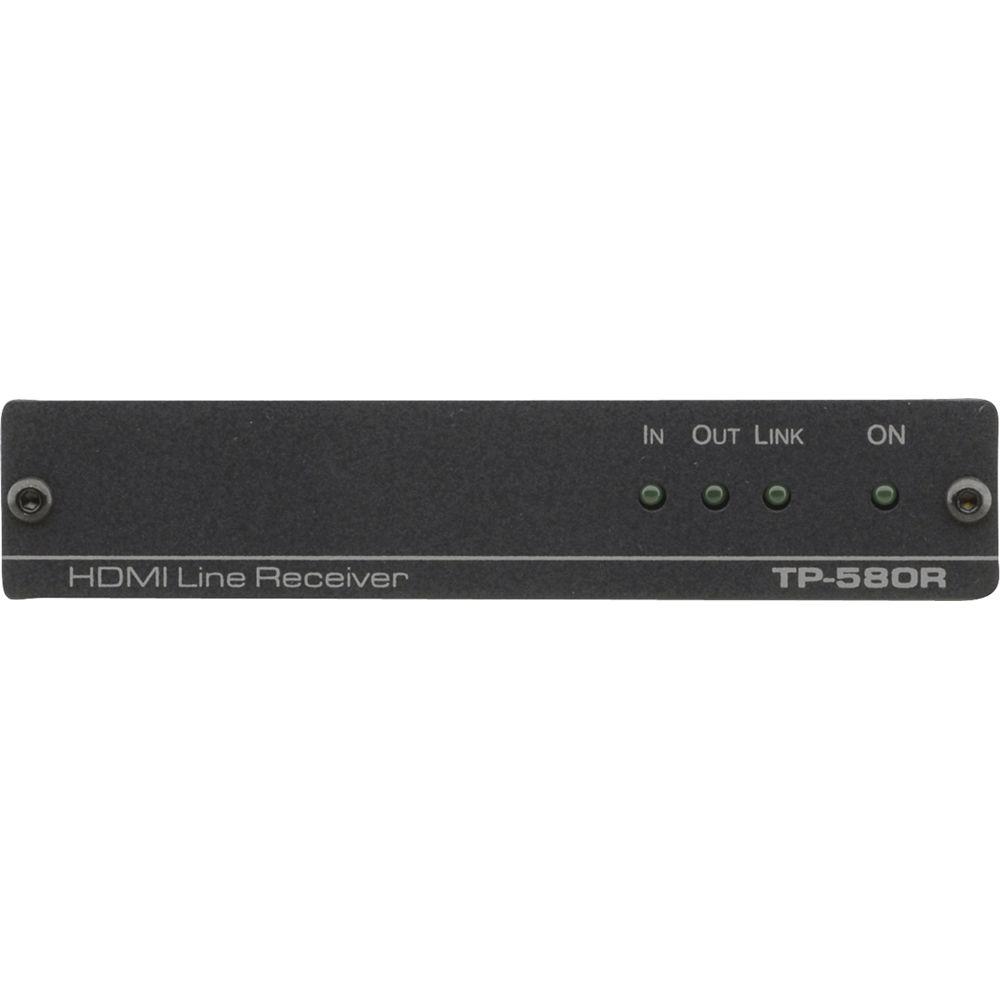

- Status LEDs for input, output, link, and power

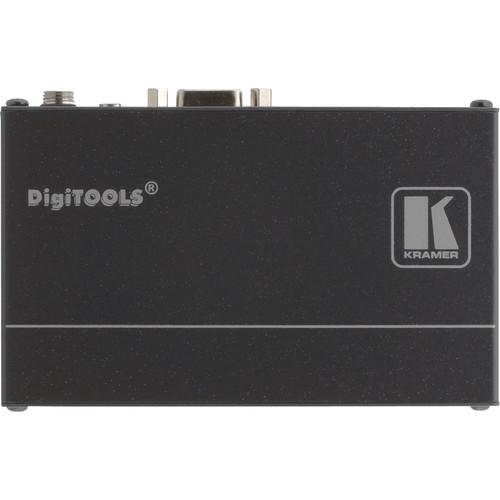

- Compact DigiTOOLS wherein 3 units can be rack mounted side−by−side in a 1U rack space with the RK−3T Universal Rack Adapter (sold separately)
In the Box Kramer TP-580R Twisted Pair Receiver Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-580R Twisted Pair Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-580R Specs | Input | 1 HDBaseT twisted pair RJ−45 connector | | Output | 1 HDMI connector | | Ports | 1 IR on a 3.5 mm mini jack, 1 RS−232 on a 9−pin D−sub connector | | Bandwidth | 10.2 Gb/s (3.4 Gb/s per graphic channel) | | Transmission Range | 1080p, 2K, and 4K video at up to 230' (70 m) | | RS-232 | Baud Rate: 115200 | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | −40 to 158°F (−40 to 70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Power Consumption | 12 VDC, 430 mA | | Dimensions (W x D x H) | 7.4 x 4.5 x 1.0" (18.8 x 11.4 x 2.4 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.1 x 4.8 x 3.4" |
