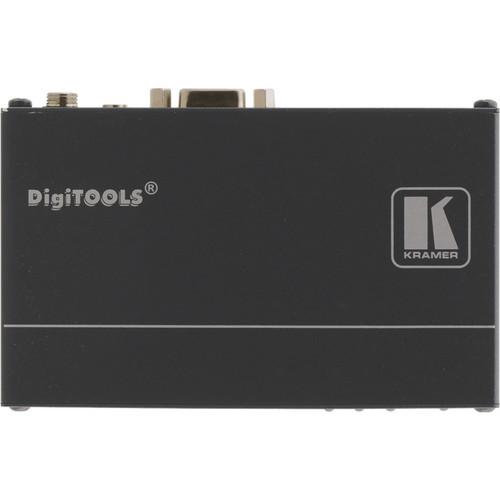

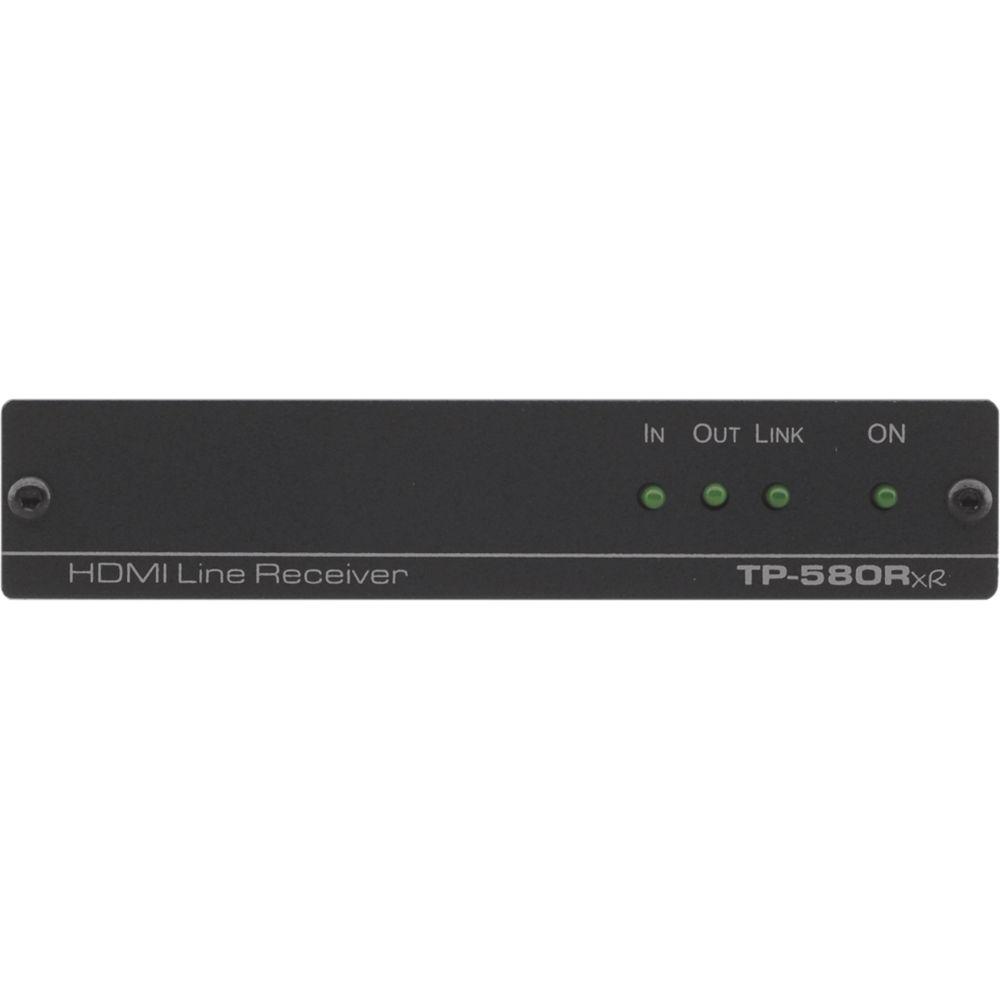

Product description The Kramer Electronics TP-580RXR Extended Range HDBaseT Twisted Pair Receiver for HDMI, bidirectional RS−232, and IR signals receives an HDBaseT twisted pair signal from the TP-580TXR (sold separately) and converts it back into HDMI, RS−232, and IR signals. It supports transmission of 2K and 4K video signals over a distance of up to 430 feet and 1080p up to 590 feet. - Maximum data rate 10.2 Gb/s (3.4 Gb/s per graphic channel)
- HDMI supports deep color, x.v.Color, Lip Sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS−HD, and CEC
- EDID pass-through passes EDID signals between the source and display
- Bidirectional RS-232 & IR interface commands and data can flow in both directions via the RS−232 interface allowing status requests and remote control of the destination unit
- System range up to 430' (130m) Normal mode (2K / 4K); up to 590' (180m) Ultra mode (1080p @ 60Hz @ 24 bpp) when using BC−DGKat623 cables
- Cable for optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables (sold separately) 1
Please Note: The transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges close - Status LEDs for input, output, link and power
- Compact DigiTOOLS 3 units can be rack mounted side−by−side in a 1U rack space with the RK−3T universal rack adapter (sold separately)
In the Box Kramer TP-580RXR Extended Range HDBaseT Twisted Pair Receiver Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-580RXR Extended Range HDBaseT Twisted Pair Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

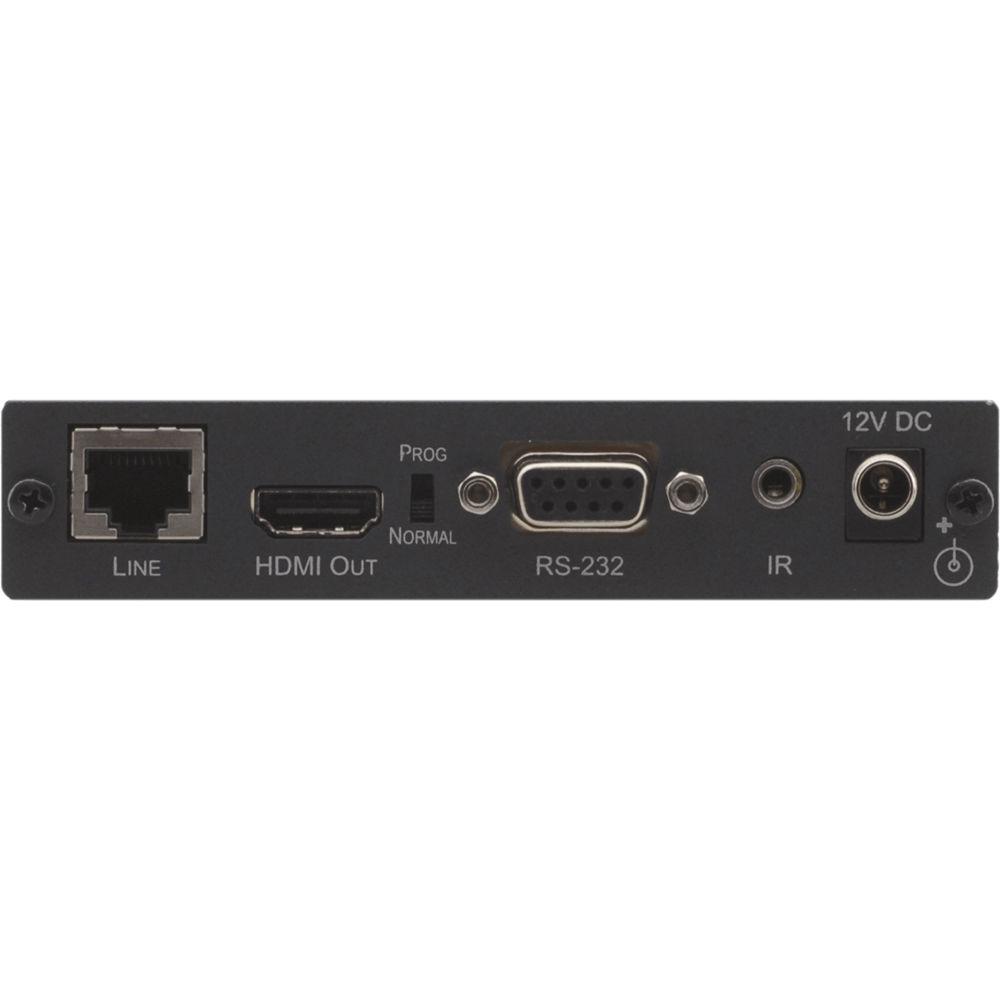

Technical parametersKramer TP-580RXR Specs | Input | 1 HDBaseT twisted pair RJ−45 connector | | Output | 1 HDMI connector | | Ports | 1 IR on a 3.5 mm mini jack, 1 RS−232 on a 9−pin D−sub connector | | Bandwidth | 10.2 Gb/s (3.4 Gb/s per graphic channel) | | Transmission Range | Normal Mode: 2K and 4K @ up to 430' (131m)
Ultra Mode: 1080p @ up to 590' (180m) | | RS-232 | Baud Rate: 115200 | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Power Consumption | 12 VDC, 380 mA | | Dimensions (W x D x H) | 7.4 x 4.5 x 1.0" (18.8 x 11.4 x 2.4 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.213 x 4.803 x 3.465" |
