User Manual for Kramer TP-580TXR Extended Range HDBaseT Twisted Pair Transmitter Click to enlarge the picture
Contents of the user manual for the Kramer TP-580TXR Extended Range HDBaseT Twisted
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
 |
User manual for the Kramer TP-580TXR Extended Range HDBaseT Twisted contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

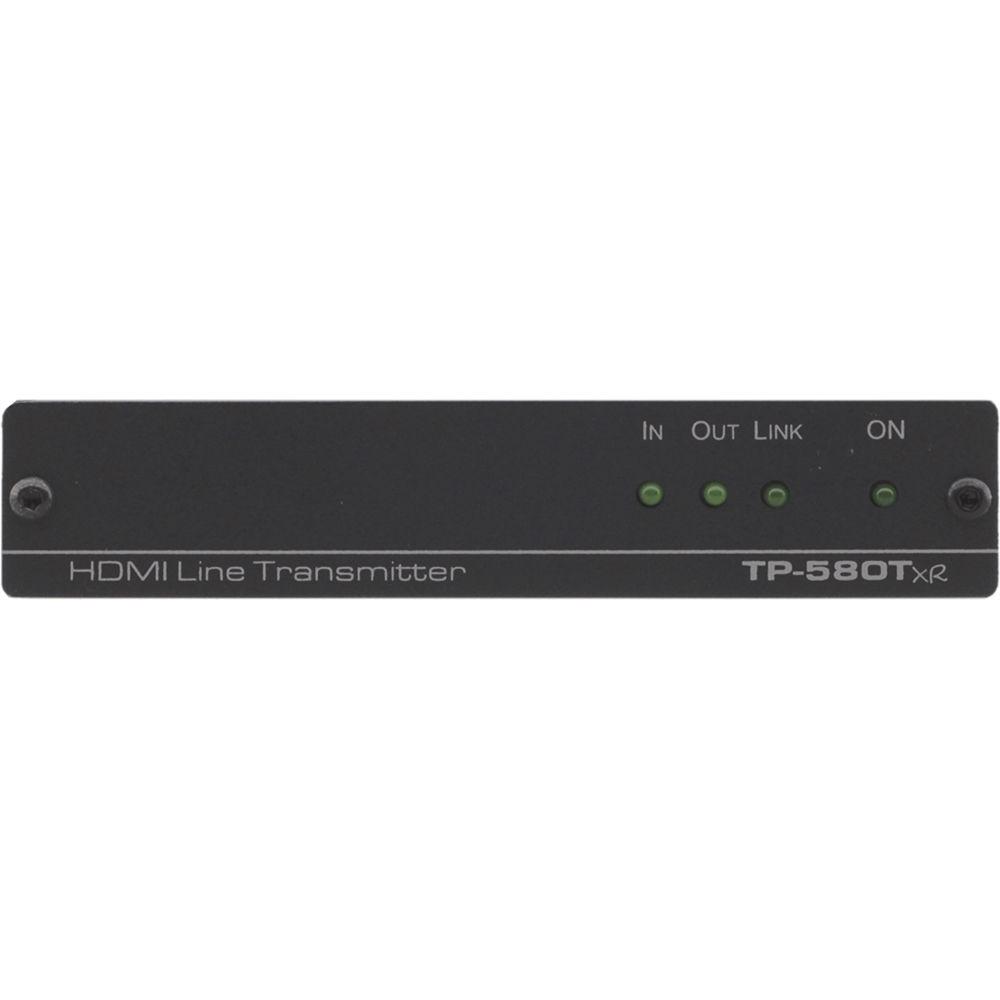

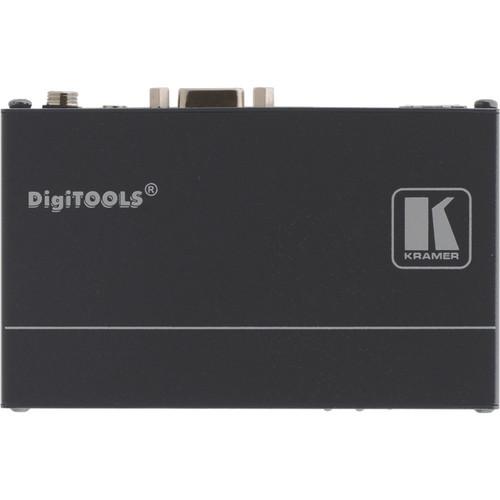

Product description The Kramer Electronics TP-580TXR Extended Range HDBaseT Twisted Pair Transmitter for HDMI, bidirectional RS-232 and IR signals has inputs for HDMI, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580RXR receiver (sold separately). It supports transmission of 2K and 4K video signals over a distance of up to 430 feet and 1080p up to 590 feet. - Maximum data rate 10.2 Gb/s (3.4 Gb/s per graphic channel)
- HDMI supports deep color, x.v.Color, Lip Sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS−HD, and CEC
- EDID pass-through passes EDID signals between the source and display
- Bidirectional RS-232 & IR interface commands and data can flow in both directions via the RS−232 interface allowing status requests and remote control of the destination unit
- System range up to 430' (130m) Normal mode (2K / 4K); up to 590' (180m) Ultra mode (1080p @ 60 Hz @24bpp) when using BC−DGKat623 cables.
- Cable for optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables (sold separately) 1
Please Note: The transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer Cat 5, Cat 6, and Cat 7 cables may not reach these ranges. close - Status LEDs for input, output, link and power
- Compact DigiTOOLS 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter (sold separately)
In the Box Kramer TP-580TXR Extended Range HDBaseT Twisted Pair Transmitter Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-580TXR Extended Range HDBaseT Twisted Pair Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

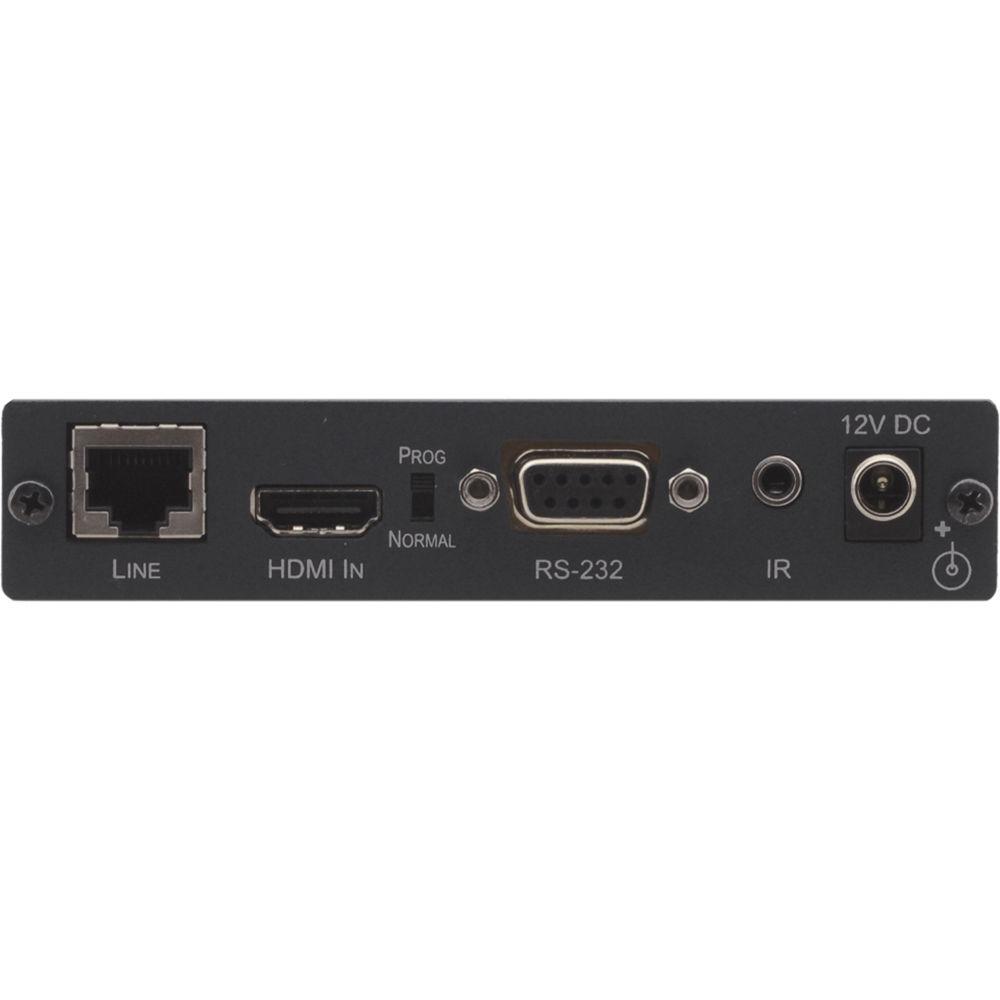

Technical parametersKramer TP-580TXR Specs | Input | 1 HDMI connector | | Output | 1 HDBaseT twisted pair RJ−45 connector | | Ports | 1 IR on a 3.5 mm mini jack, 1 RS−232 on a 9−pin D−sub connector | | Bandwidth | 10.2 Gb/s (3.4 Gb/s per graphic channel) | | Transmission Range | Normal Mode: 2K and 4K @ up to 430' (130m)
Ultra Mode: 1080p @ up to 590' (180m) | | RS-232 | Baud Rate: 115200 | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Power Consumption | 12 VDC, 210 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | −40 to 158°F (−40 to 70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Dimensions (W x D x H) | 7.4 x 4.5 x 1.0" (18.8 x 11.4 x 2.4 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.2 x 4.8 x 3.3" |
