Product description The Kramer TP-582T 2x1 Twisted Pair Transmitter allows you to transmit HDMI, Ethernet 100BaseT, RS-232 and IR input signals. It takes 1 of the 2 HDMI inputs, and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to a twisted pair signal. The device offers a maximum data transfer rate of up to 2.25 Gbps over a distance of up to 330’ (100m). Shielded twisted pair (STP) cables such as Kramer's BC-DGKat524, BC-DGKat623, or BC-DGKat723 cables can be used for optimum performance.
The TP-582T 2x1 Twisted Pair Transmitter supports HDMI v.1.4 with Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC, and 3D Pass-through. EDID PassThru feature helps in passing EDID/HDCP signals from the source to the display. The Ethernet interface uses 100BaseT connectivity, which features a high-data transfer rate for efficient transfer of data, video signals, etc.
A bidirectional RS-232 interface allows commands and data flow in both directions, thus allowing status requests and control of the destination unit. In addition, the device can be controlled via front panel buttons. An LED indicator displays input selection, output, link and power. Using an optional RK-T2B rack adaptor, you can mount 2 units side-by-side in a 1U rack space. Being HDCP compliant and HDTV compatible, the TP-582T 2x1 Twisted Pair Transmitter is suitable for home theater, presentation, multimedia, and staging applications. Note: Transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground. - Allows you to transmit HDMI, Ethernet 100BaseT, RS-232 and IR input signals
- Takes 1 of the 2 HDMI inputs, and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to a twisted pair signal
- Maximum data transfer rate - up to 2.25 Gbps
- System range - up to 330' (100m)
- Supports HDMI v.1.4 with Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC, and 3D Pass-through
- EDID PassThru feature - helps in passing EDID/HDCP signals from source to display
- Ethernet interface - 100BaseT connectivity features a high data transfer rate for efficient transfer of data, video signals, etc

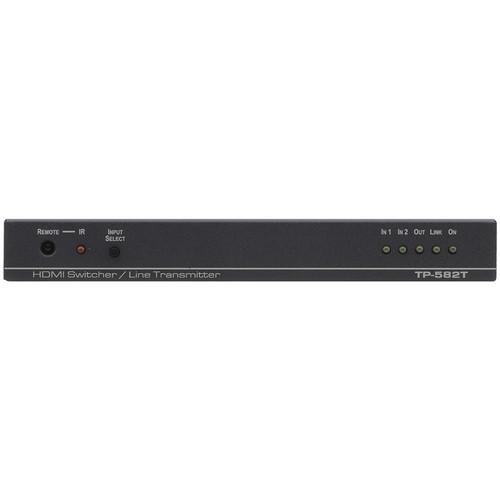

- LED indicator - displays input selection, output, link, and power
- Control via front panel buttons
- Bidirectional RS-232 Interface - allows commands and data flow in both directions, thus allowing status requests and control of the destination unit
- Compatible with shielded twisted pair (STP) cables such as Kramer's BC-DGKat524, BC-DGKat623, or BC-DGKat723 cables
- RK-T2B rack adaptor for mounting 2 units side side-by-side in a 1U rack space
- Suitable for home theater, presentation, multimedia, and staging applications
In the Box Kramer TP-582T 2x1 Twisted Pair Transmitter TP-582R Twisted Pair Transmitter 5V Power Cord RK-T2B Rack Adaptor User Manual 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-582T 2x1 Twisted Pair Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

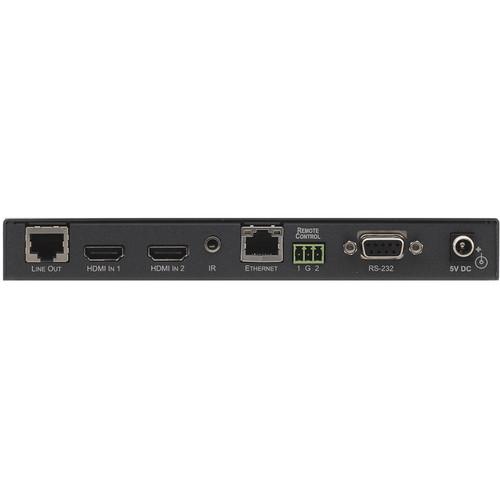

Technical parametersKramer TP-582T Specs | Inputs | 2 HDMI connectors, 1 IR on a 3.5mm mini jack, 1 Ethernet 100BaseT on an RJ-45 connector, 1 RS-232 on a 9-pin D-sub connector, 1 remote contact closure on a terminal block connector | | Outputs | 1 RJ-45 connector | | Bandwidth | Supports up to 2.25Gbps bandwidth per graphic channel | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Power Source | 5V DC, 800mA | | Dimensions (WxDxH) | 7.4 x 4.5 x 1.0" (18.8 x 11.4 x 2.4cm) | | Options | RK-T2B 19" rack mount | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 13.7 x 8.6 x 2.9" |
