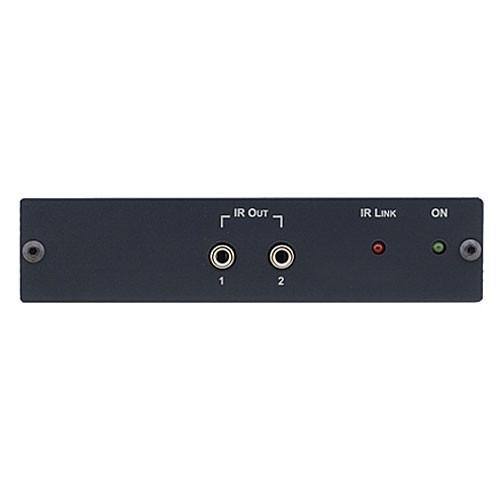

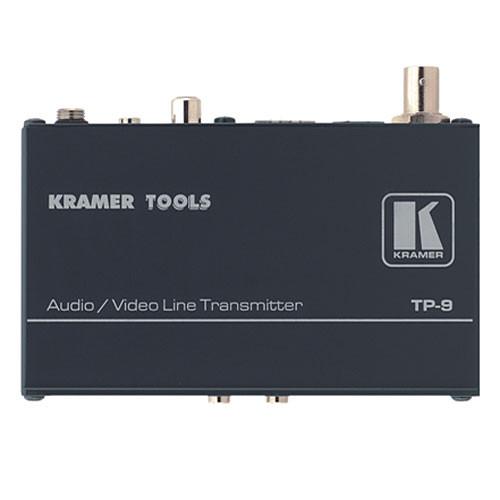

Product description The TP-9 Video & Audio over Twisted Pair Transmitter with IR Repeater from Comprehensive/Kramer is the transmitter in a paired transmitter-receiver solution designed for sending composite video, S-video (Y/C), unbalanced analog stereo audio, or S/PDIF audio signals over twisted-pair cable. This solution is well suited for use in studios, airports, offices, security & military installations, and hospitals, among many other similar settings and uses.
It offers bandwidth capacity up to 70MHz and a system range of up to 320'. Other features include (2) IR emitter outputs, as well as level (gain) and EQ (peaking) controls. This unit also belongs to the Kramer TOOLs family of products and up to (3) units can be mounted side by side in a standard 19" equipment rack by using the optional RK-3T rack kit. Note: This unit must be used in conjunction with a TP-10 receiver to achieve a complete solution. - Twisted-Pair Transmission
- Use this device to transmit composite video, S-video, unbalanced analog stereo audio, or S/PDIF audio signals over twisted-pair cable.
- Range
- This solution has an operating range of 320'.
- Settings
- It offers level & EQ controls.
- Standalone or Rackmount
- It is equally well suited for standalone or rackmount use.
In the Box Kramer TP-9 Video & Audio over Twisted Pair Transmitter with IR Repeater Power Supply Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP-9 Video & Audio over Twisted Pair Transmitter with IR Repeater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

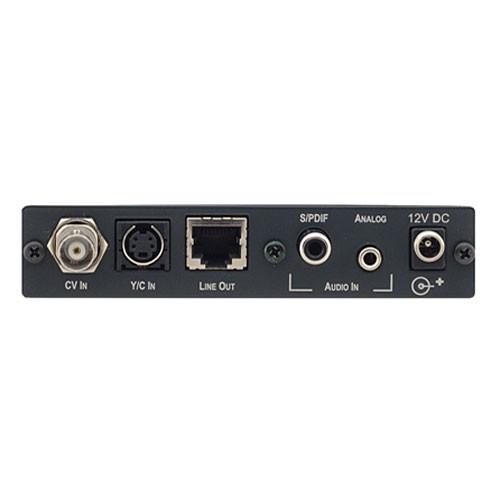

Technical parametersKramer TP-9 Specs | Construction | Metal | | Finish | Black | | Input | 1x Composite video 1Vpp/75Ω on a BNC connector
1x S-Video 1Vpp/75Ω [Y], 0.3Vpp/75Ω [C] on a 4-pin connector
1x S/PDIF (digital audio) on an RCA connector
1x audio (analog audio) <8dBu on a 3.5 mm mini connector | | Output | 1x RJ-45 CAT5 shielded connector (LINE OUT)
2x IR emitters on 3.5 mm mini connectors | | Output Level | Video: 2.6V (maximum)
Audio: 4.6Vpp (maximum) | | Bandwidth | Video: 70MHz/-3dB
Audio: 20Hz to 20kHz/0.1dB | | Nonlinearity | <0.05% | | Differential Gain | <0.05% | | Differential Phase | 0.09° | | Signal-to-Noise Ratio | Video:75dB RMS/5MHz
Audio: >73dB | | Conversion | Sample-Rate Conversion: 48kHz
Resolution Conversion: 24 bits | | Power | 12VDC, 82mA | | Dimensions (HxWxD) | 1.08 x 4.7 x 2.8" (2.76 x 12 x 6.95cm) | | Weight | 0.67 lbs (0.3kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.1 x 4.8 x 3.5" |
