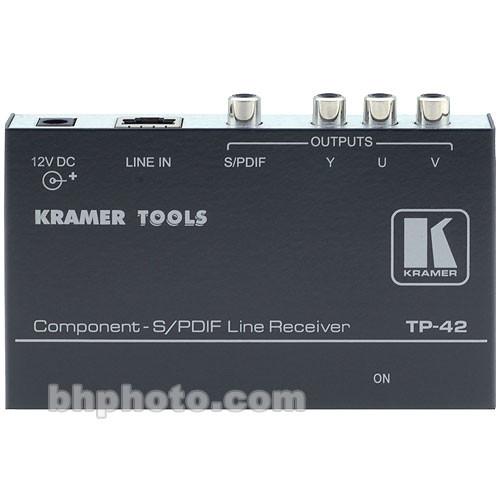

User Manual for Kramer TP42 Component YUV Video and S PDIF Audio Long-Range Receiver Over Network Cable Click to enlarge the picture
Contents of the user manual for the Kramer TP42 Component YUV Video and
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
|
User manual for the Kramer TP42 Component YUV Video and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Comprehensive/Kramer TP-42 Audio/Video Receiver is a receiver designed for the long range extension and distribution of a component video and digital audio. This device, in conjunction with a compatible transmitter, will re-convert the a video signal produced by a DVD player, computer A/V workstation or similar device(s) after it has been sent over common and inexpensive twisted pair computer network cabling. This allows a user to cleanly extend their studio, A/V, or presentation applications beyond the short cabling that restricts the spacing of devices. To convert the signal back from a standard YUV component video and S/PDF audio signal at the other end of your wiring configuration, use the Comprehensive/Kramer PT-41. - Individual level and EQ controls for the Y, U, V signals and audio level and EQ control
- Power Connect System - Only one unit in a signal path, either the transmitter or receiver, needs to be connected to a power source. All the system units must have Power Connect circuitry to make use of this feature.
- With Power Connect System and heavy gauge CAT5 type cable, it can receive a video signal up to 320' (98 m.) Distances vary depending on signal resolution, device power, cable quality and type. Standard CAT5 cable can transmit up to 160' (50 m.)
- Twisted pair output can utilize common and inexpensive unshielded RJ-45 network cabling such as CAT5.
In the Box Kramer TP42 Component YUV Video and S/PDIF Audio Long-Range Receiver Over Network Cable 7 Year Warranty Power Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TP42 Component YUV Video and S PDIF Audio Long-Range Receiver Over Network Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-42 Specs | Input | 1x RJ-45 Twisted-pair network cable jack - female | | Output | 1x S/PDIF digital audio RCA female
3x Component video (1x Y, 1x U, 1x V) RCA female | | Output Level | Video: 2.1 Vpp
Audio: 2.1 Vpp | | Bandwidth | Video: 57MHz - full load
Audio: 53.4 MHz | | S/N Ratio (Video) | Video: 78.1 dB
Audio: 78.4 dB | | Power Input | 12 VDC 82mAh | | Dimensions (WxDxH) | 4.7 x 3 x 1" (12 x 7.5 x 2.5 cm) | | Weight | 0.7 lbs (0.3 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.15 x 4.75 x 3.75" |
