User Manual for Kramer TR-1A Balanced Mono Audio Isolation Transformer Click to enlarge the picture
Contents of the user manual for the Kramer TR-1A Balanced Mono Audio Isolation
- Product category: Hum Eliminators Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Hum Eliminators
 |
User manual for the Kramer TR-1A Balanced Mono Audio Isolation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

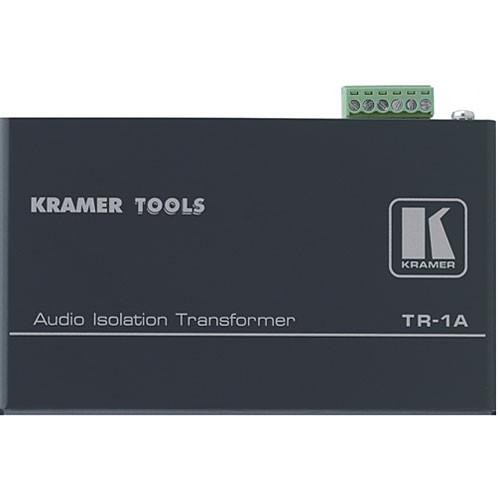

Product description The TR-1A Balanced Mono Audio Isolation Transformer from Kramer is designed for use with balanced mono audio signals. This unit provides complete isolation between devices, thus eliminating hum, ground loops, and DC offsets that can degrade audio quality. It is well suited for use in broadcast and production facilities, staging & field work, duplication studios, and other similar settings and uses.

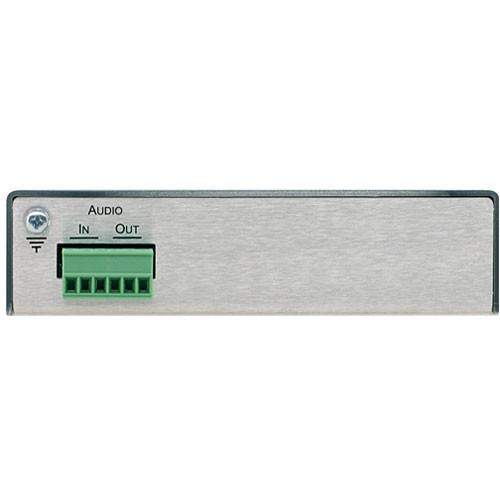

The transformer features external input and output ground terminals. Moreover, grounding options can be selected with a dip switch. The unit receives power passively and no power supply is required. It belongs to the Kramer TOOLs family of products and up to (3) units can be mounted side by side in a standard 19" equipment rack by using the optional RK-3T rack kit. - Audio Transformer
- Use this device to isolate balanced mono audio signals between devices to eliminate hum, ground loops, and DC offsets that can degrade audio quality.
- Ground

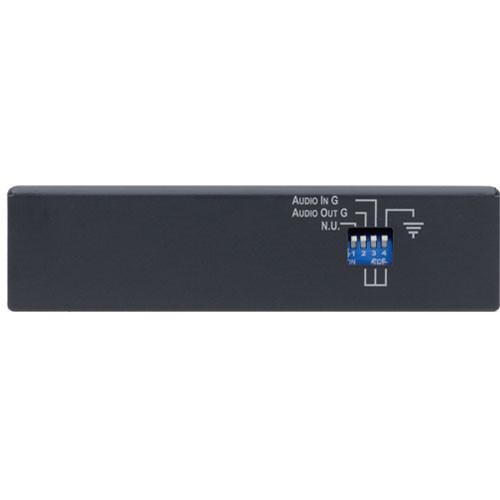

- It features external input and output ground terminals and grounding options can be selected with a dip switch.
- Passive Power
- This unit receives power passively and requires no power supply.
- Standalone or Rackmount
- It is equally well suited for standalone or rackmount use.
In the Box Kramer TR-1A Balanced Mono Audio Isolation Transformer Transformer Set of Mounting Brackets Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TR-1A Balanced Mono Audio Isolation Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TR-1A Specs | Construction | Metal | | Finish | Black | | Input | (1) balanced audio +4dBu/600 Ohms on detachable terminal block | | Output | (1) balanced audio +4dBu/600 Ohms on detachable terminal block | | Output Level | +26dBu (maximum) | | Bandwidth | 20Hz to 20kHz (-3dB) | | Signal-to-Noise Ratio | -83dBu @ +4dBu/1000Hz | | Control | Dip switches to connect to chassis | | Coupling | Transformer | | THD & Noise | < 0.025% @+4dBu/1000Hz | | Dimensions (HxWxD) | 1.2 x 4.77 x 2.85" (3 x 12.1 x 7.2cm) | | Weight | 0.75 lbs (0.34kg) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 4.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
