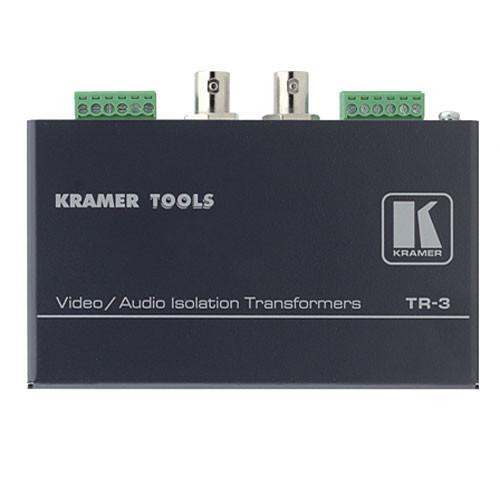

Product description The TR-3 Video & Balanced Stereo Audio Isolation Transformer from Kramer is designed for use with composite video and balanced stereo audio signals. This unit provides complete isolation between devices, thus eliminating hum, ground loops, and DC offsets that can degrade video and audio quality. It is well suited for use in broadcast and production facilities, staging & field work, duplication studios, and other similar settings and uses.
The transformer features external input and output ground terminals. Moreover, grounding options can be selected with a dip switch. The unit receives power passively and no power supply is required. It belongs to the Kramer TOOLs family of products and up to (3) units can be mounted side by side in a standard 19" equipment rack by using the optional RK-3T rack kit. - Video & Audio Transformer
- Use this device to isolate composite video and balanced stereo audio signals between devices to eliminate hum, ground loops, and DC offsets that can degrade video and audio quality.
- Ground

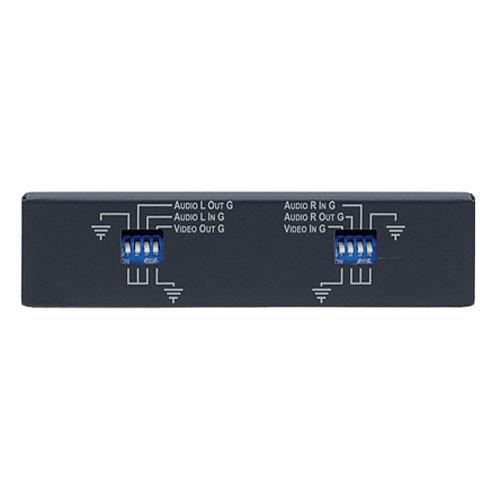

- It features external input and output ground terminals and grounding options can be selected with a dip switch.
- Passive Power
- This unit receives power passively and requires no power supply.
- Standalone or Rackmount
- It is equally well suited for standalone or rackmount use.
In the Box Kramer TR-3 Video & Balanced Stereo Audio Isolation Transformer Transformer Set of Mounting Brackets Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer TR-3 Video & Balanced Stereo Audio Isolation Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

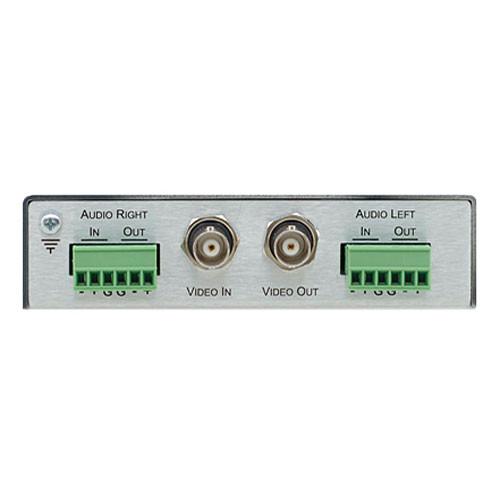

Technical parametersKramer TR-3 Specs | Construction | Metal | | Finish | Black | | Input | (1) composite video, 1Vpp/75 Ohms on a BNC connector
(2) balanced audio +4dBu/600 Ohms on detachable terminal blocks | | Output | (1) composite video, 1Vpp/75 Ohms on a BNC connector
(2) balanced audio +4dBu/600 Ohms on detachable terminal blocks | | Output Level | Video: 4Vpp / 75 Ohms (maximum)
Audio: +26dBu (maximum) | | Bandwidth | Video: <10hz to 5.8mhz (-3db)
Audio: -3dB AUDIO: 20Hz to 20kHz (-3dB) | | Differential Gain | 0.05% | | Differential Phase | 0.05° | | K-Factor | <1.2% | | Signal-to-Noise Ratio | Video: 73dB
Audio: -83dBu @+4dBu/1000Hz | | Control | Dip switches to connect to chassis | | Tilt | 0.1% @ pulse & bar | | Nonlinearity | 0.1% | | Coupling | Video: transformer
Audio: transformer | | THD & Noise | 0.025% @+4dBu/1000Hz | | Power | Not specified by manufacturer | | Dimensions (HxWxD) | 1.2 x 4.77 x 2.85" (3 x 12.1 x 7.2cm) | | Weight | 0.75 lbs (0.34kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.0 x 5.0 x 3.5" |
