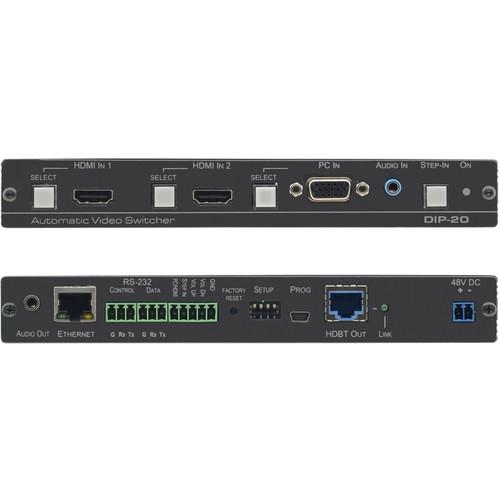

Product description Provided by third party: The DIP-20 is a 4K UHD, HDBaseT transmitter and Step-in commander for computer graphics video, HDMI, unbalanced stereo audio signals embedding and de-embedding. The DIP-20 accepts HDMI and PC graphics video input, an Ethernet signal, serial data, and an unbalanced stereo audio input (that is embedded into the output signal). It transmits the signal via HDBaseT (twisted pair) cable to a compatible receiver.
- Key Features
-
- Max. data rate - 10.2Gbps
- Up to WUXGA, 4K
- HDTV compatible
- HDCP compliant - works with sources that support HDCP repeater mode
- Automatic live input detection - based on video clock presence
- Automatic input selection - based on manual selection or last connected input
- Automatic analog audio detection & embedding
- I-EDIDPro Kramer Intelligent EDID processing
- Data equalization and reclocking
- Local balanced audio de-embedding
- Support for digital audio formats
- Lockable EDID
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer UHD HDMI VGA RS-232 Audio over HDBaseT Transmitter & Step-In Commander in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer DIP-20 Specs | | | Type | HDBaseT transmitter / step-in commander | | Width | 7.4 in | | Depth | 4.5 in | | Height | 1 in | | | | Low Voltage Power | DC 48 V | | | | Kit Content | (1) x power adapter | | | | Terminals | (2) x HDMI input - 19 pin HDMI Type A
(1) x VGA input - 15 pin HD D-Sub (HD-15)
(1) x audio line-in - mini-phone stereo 3.5 mm
(1) x HDBaseT output - RJ-45
(1) x audio line-out - mini-phone stereo 3.5 mm
(1) x network - RJ-45
(2) x serial - terminal block | | | | Min Operating Temperature | 32
