Kramer VA-1DVIN DVI EDID Emulator

Search your instruction manual in PDF to download

User Manual for Kramer VA-1DVIN DVI EDID Emulator

Click to enlarge the picture
Kramer VA-1DVIN DVI EDID Emulator Contents of the user manual for the Kramer VA-1DVIN DVI EDID Emulator
  • Product category: EDID Emulators Kramer
  • Brand: Kramer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Kramer EDID Emulators

Kramer VA-1DVIN DVI EDID Emulator Kramer VA-1DVIN DVI EDID Emulator
User manual for the Kramer VA-1DVIN DVI EDID Emulator contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Kramer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!



Product description

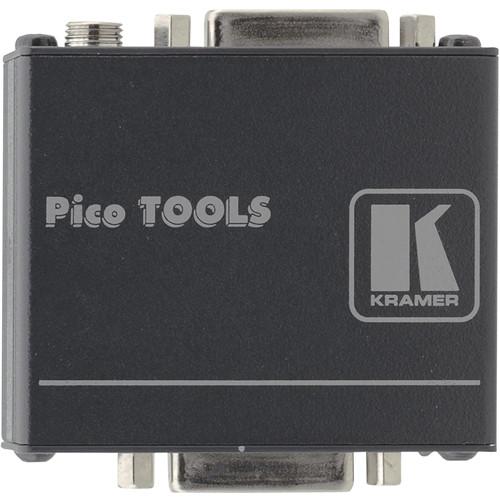

The Kramer VA-1DVIN DVI EDID Emulator offers a maximum data rate of 3.3 Gbps and captures and transfers EDID (Extended Display Identification Data) signals from the output device to the source. The emulator passes the analog signals through its DVI-I connectors without processing.

The capture button allows you to capture the EDID setting in non-volatile memory from the output, allowing a convenient connection to the source. Up to four units can be rack-mounted side by side in a 1 RU rack space with an optional rack adapter. The EDID emulator is suitable for presentation graphics distribution, graphic production studios, or extending a display away from the computer.
  • Passes the analog signals on the DVI-I connector without processing
  • Four units can be rack-mounted side by side in a 1 RU rack space with the optional RK-4PT rack adapter
In the Box Kramer VA-1DVIN DVI EDID Emulator
  • Power Supply
  • Limited 7-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Kramer VA-1DVIN DVI EDID Emulator in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Kramer VA-1DVIN Specs

    Input 1 x DVI, dual link, DVI 1.0, 1.2 Vpp on a DVI Molex 24-pin female connector; DDC signal 5 Vpp (TTL)

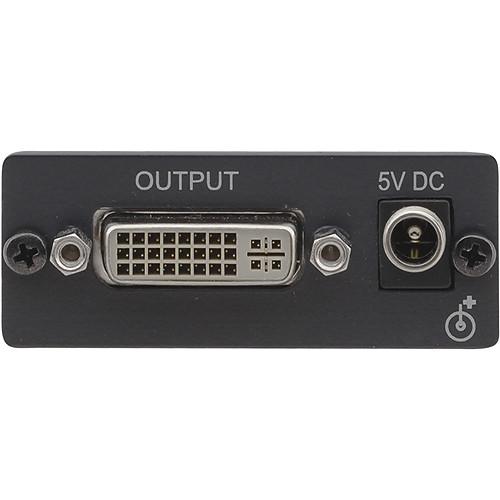

    Output 1 x DVI, dual Link, DVI 1.0, 1.2 Vpp on a DVI Molex 24-pin female connector; DDC signal 5 Vpp (TTL)
    Bandwidth 3.3 Gbps
    Controls Capture EDID button
    Power Source 5 VDC, 20 mAh
    Dimensions (W x H x D) 2.5 x 0.9 x 2.16" (6.2 x 2.4 x 5.2 cm)
    Weight (Approximate) 5.3 oz (150 g)
    Package Weight 0.85 lb
    Box Dimensions (LxWxH) 6.9 x 4.8 x 3.5"
