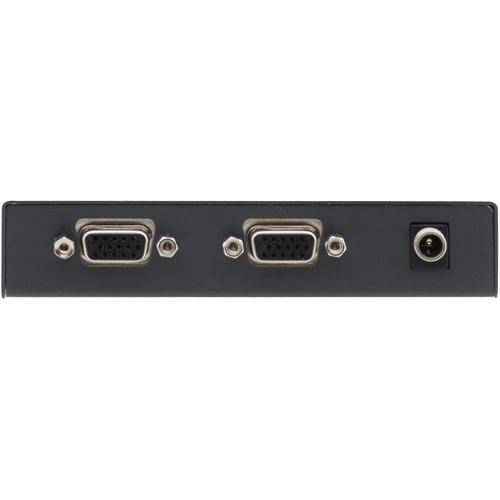

User Manual for Kramer VA-1VGA Computer Graphics Video EDID Emulator Click to enlarge the picture
Contents of the user manual for the Kramer VA-1VGA Computer Graphics Video EDID
- Product category: EDID Emulators Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer EDID Emulators
 |
User manual for the Kramer VA-1VGA Computer Graphics Video EDID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VA-1VGA Computer Graphics Video EDID Emulator from Kramer is an EDID emulator for VGA signals. It can capture EDID settings in non-volatile memory from the output to allow for reliable connection to source signals. - Use this unit to store EDID data in non-volatile memory to facilitate connection to source signals
- It offers a bandwidth of 1.8GHz

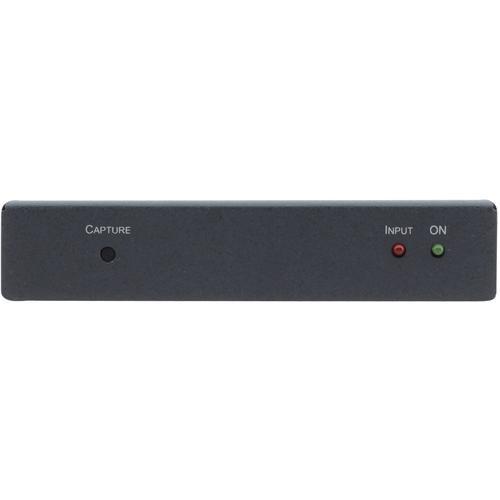

- The device can be controlled via its capture button
- This unit belongs to the Kramer TOOLS Series and up to (3) of these units can be mounted side by side in 1U of rack space using the separately available K-3T rack adapter
In the Box Kramer VA-1VGA Computer Graphics Video EDID Emulator 12VDC Power Supply Seven-Year Warranty Against Defects in Material & Workmanship User Manual PDF 2.1mbbzfayvvduuscyccwdfesyvrwsvsqwewterbafd Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VA-1VGA Computer Graphics Video EDID Emulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VA-1VGA Specs | Performance | Input: 1 XGA input on a 15-pin HD connector
Output: 1 XGA output on a 15-pin HD connector
Maximum Output Level: >2Vpp
Bandwidth (-3dB): 1.8GHz
Differential Gain: 0.02%
Differential Phase: 0.02 degrees
K-Factor: <0.05%
Signal-to-Noise Ratio: 74dB @ 5MHz (unweighted: 66dB)
Controls: Push button for EDID monitor information storage
Coupling: DC, direct wiring between input and output | | Power | 12VDC, 35mA | | Dimensions (HxWxD) | 1.2 x 2.4 x 2.6" (3 x 6 x 6.5cm) | | Weight | 0.33 lbs (0.15kg) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.9 x 4.8 x 3.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
