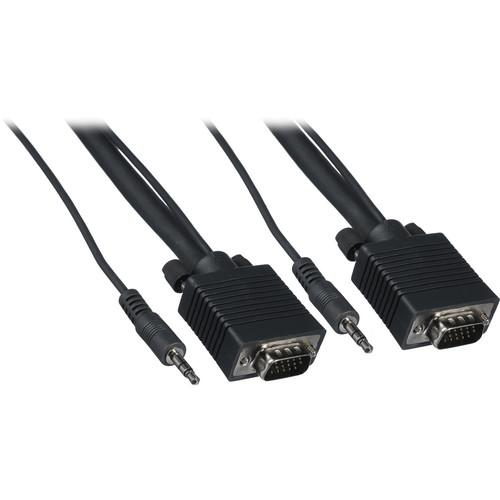

User Manual for Kramer VGA Male with 3.5mm Stereo Audio Cable Click to enlarge the picture
Contents of the user manual for the Kramer VGA Male with 3.5mm Stereo
- Product category: VGA to VGA Cables Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer VGA to VGA Cables
|
User manual for the Kramer VGA Male with 3.5mm Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VGA Male with 3.5mm Stereo Audio Cable from Kramer has male VGA connectors on both ends with built-in 3.5 mm audio jacks. Gold-plated pins ensure a stable connection and thumbscrews allow for a secure and easy connection. It's ideal for display installations that also require an audio connection. In the Box Kramer VGA Male with 3.5mm Stereo Audio Cable (6') Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VGA Male with 3.5mm Stereo Audio Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer C-GMA/GMA-6 Specs | Attenuation | dB/100':
−0.5 dB @ 1 MHz
−1.3 dB @ 5 MHz
−1.9 dB @ 10 MHz
−4.0 dB @ 50 MHz
−5.7 dB @ 100 MHz
−8.0 dB @ 180 MHz
−14.0 dB @ 400 MHz | | Wire Gauge | 26 AWG | | Center Conductor | 7/34 tinned copper | | Dielectric | 3.5mm end: foam polyethylene | | Shielding | 3.5mm end:
(A) 90% spiral 38 AWG tinned copper
(B) Aluminum foil/mylar 25% overlap rate
HD15 end:
(A) 85% braid 36 AWG tinned copper
(B) Mylar 25% overlap rate | | Jacket Material | Inner: PVC
Outer: HD polyethylene | | Diameter | 3.5mm end: 0.39" (10 mm)
VGA end:
Center conductor: 0.01" (0.48 mm)
Dielectric: 0.07" (1.95 mm)
Individual coax: 0.1" (2.6 mm) | | Impedance | 75 Ω | | DC Resistance | VGA end: 45 Ω/1000 ft, 148 Ω/km | | Capacitance | VGA end: 17.3 pF/ft, 57 pF/m | | Temperature | −4-167°F (−20-75°C) | | UL | CL2 | | Connector | VGA male with 3.5 mm stereo audio male | | Length | 6' (1.82 m) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 7.8 x 6.2 x 0.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
