User Manual for Kramer VIA Campus PLUS Wired Wireless Presentation System Click to enlarge the picture
Contents of the user manual for the Kramer VIA Campus PLUS Wired Wireless
- Product category: Projector Accessories Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Projector Accessories
 |
User manual for the Kramer VIA Campus PLUS Wired Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

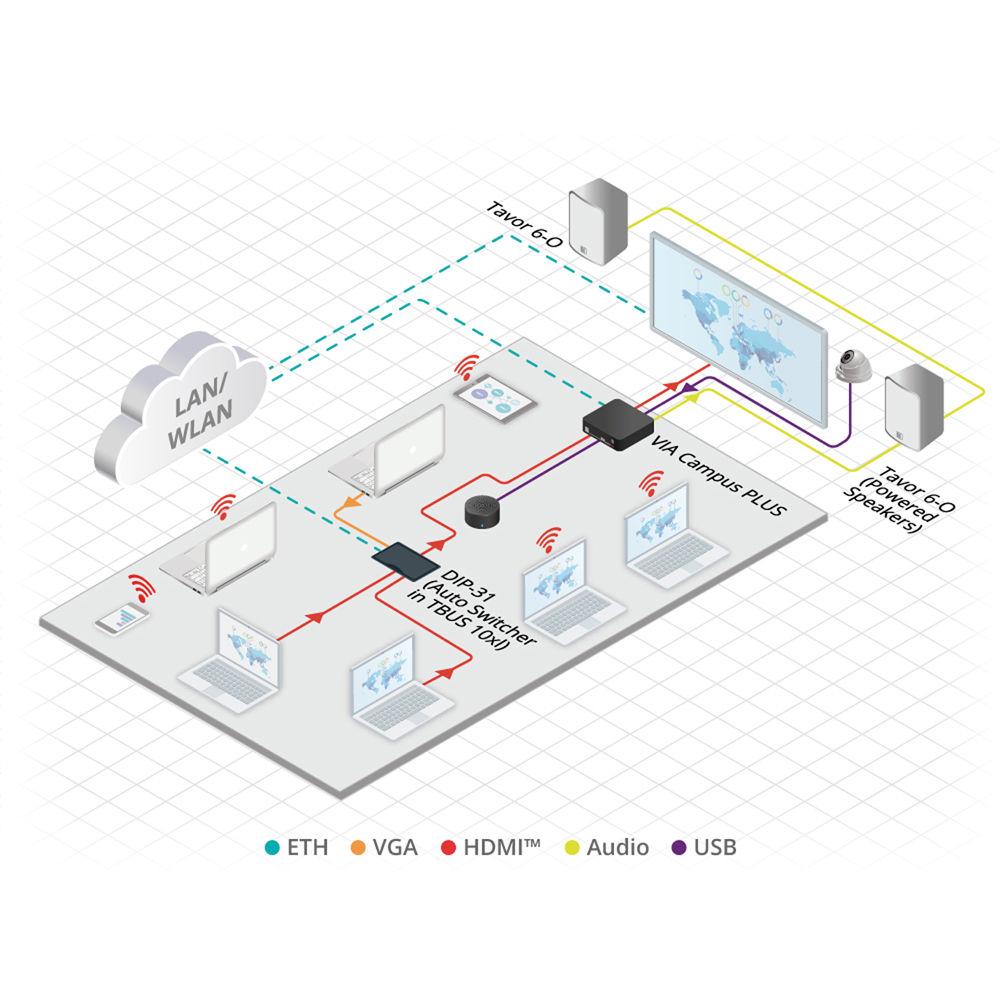

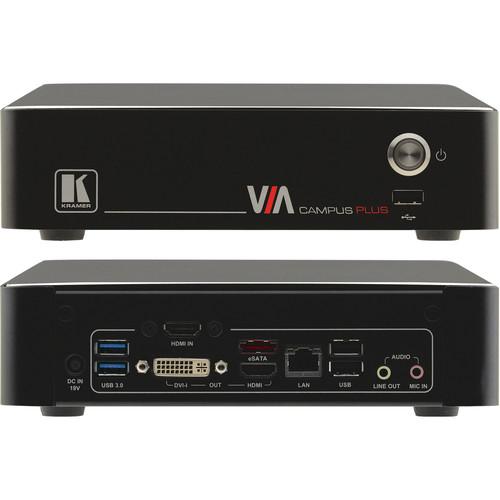

Product description Share presentations securely over your existing network with the Kramer VIA Campus PLUS Wired/Wireless Presentation System. It enables wireless or wired streaming at up to 1080p resolution at 60 Hz for smooth, detailed video; 4K video is also supported via Wi-Fi and Ethernet. It connects to your display or projector via HDMI or DVI-I, and your source devices connect to it via HDMI or via your existing network, which the VIA Campus PLUS connects to through Ethernet. - Login using conventional Wi-Fi or LAN connections
- Supports Windows and Mac laptops as well as iOS, Android, and Chromebook devices
- Designed for ease of use with an intuitive user interface
- Supports 1080p / 60 Hz video streaming using the VIA app Multimedia feature
- 4K support over wired/wireless LAN
- Up to six participant screens can be displayed on one screen simultaneously, or up to 12 using dual-screen mode
- Security features include user authentication, 1024-bit encryption, and a dynamic room code
- HDMI input for hard-wiring a computer or other HDMI-compatible device, such as a camera, multimedia player, or computer; please note that this does not support HDCP signals
- Wireless device connectivity via your existing network
- Wireless connection for up to 254 devices, dependent on your network capability
- Streaming input for the internal media player
- Cloud-based file sharing – drag and drop files to the internal storage
- Give a participant control over a presenter's computer for enhanced collaboration
- Send instant messages to other users
- The View Main Display function allows you to switch between viewing the main display or your device
- Third-party app support, such as Microsoft Office, Skype, GoToMeeting, and WebEx
- Icon shortcuts on the splash page for third-party applications
- Offer custom e-Polling to users and generate reports
- Integrated YouTube player lets you create playlists, share videos, or drag and drop any YouTube clip to your VIA app for virtually seamless playback
- Streaming output enables you to stream all your collaboration activity from the main display to nearly any H.264 decoder
- Record an entire VIA video and audio session to a local video file
- The eSATA lets you connect a compatible external storage device
- Virtually seamless VSM integration with VIA Site Management (VSM) software and the VIA Pad
- Suitable for use in boardrooms, conference rooms, presentation rooms, collaboration spaces, corporate and university training rooms, classrooms, and lecture halls
- With an optional license, you can display dynamic content on the main display during meeting downtime
In the Box Kramer VIA Campus PLUS Wired/Wireless Presentation System HDMI Extender DVI Male to VGA Female Adapter Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VIA Campus PLUS Wired Wireless Presentation System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

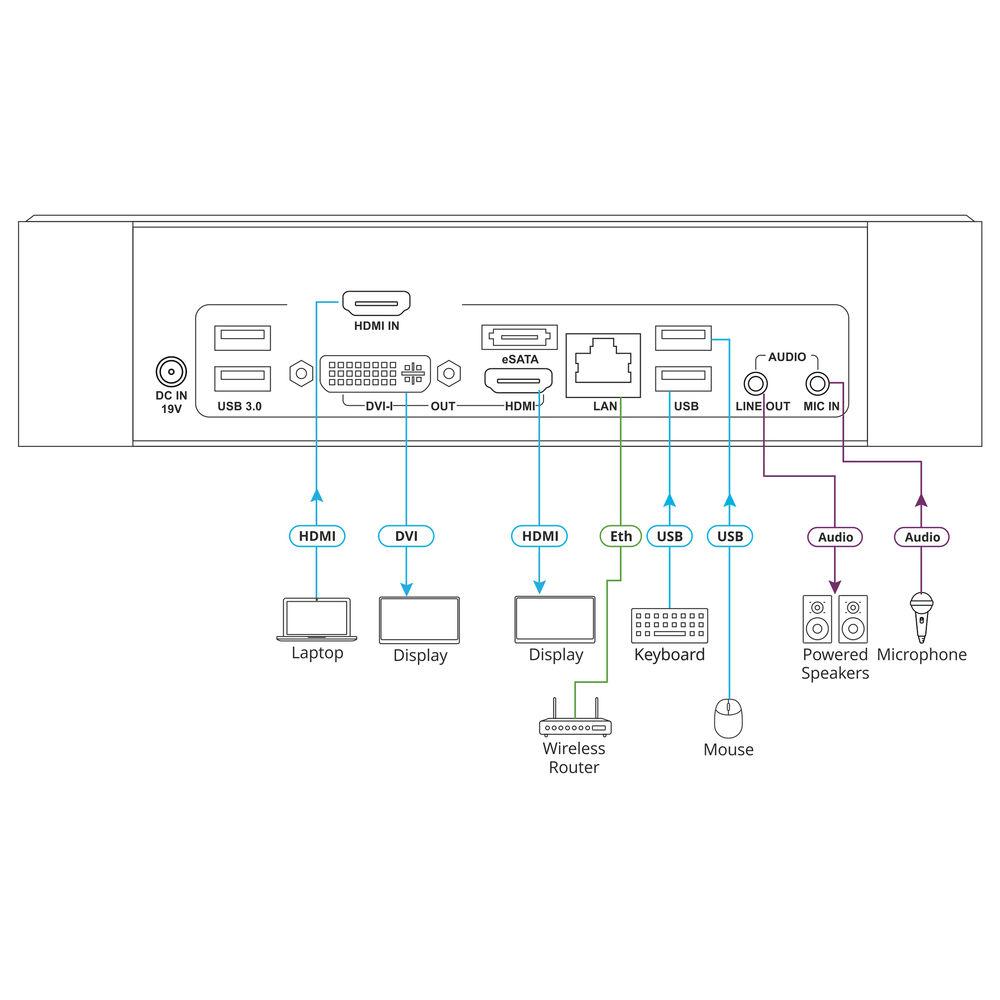

Technical parametersKramer VIA-CAMPUS-PLUS Specs | | | Operating System | Windows 10 | | Processor | 2.9 GHz quad-core | | Onboard Storage | 60 GB SSD | | RAM | 4 GB | | Simultaneous Sources on Screen | Up to six per screen | | Simultaneous Connections | Wireless: Up to 254 (depending on network capabilities) | | | | Inputs | 1 x HDMI
2 x USB 3.1 Gen. 1 Type-A
3 x USB 2.0 Type-A
1 x 1/8" / 3.5 mm audio (line or mic) | | Outputs | 1 x HDMI
1 x DVI-I
1 x 1/8" / 3.5 mm audio (line) | | Other Connections | 1 x eSATA
1 x RJ45 Ethernet LAN (Gigabit, 10/100/1000/auto) | | Resolution Output | Up to 1080p @ 60 Hz via HDMI
Up to 4K via wired/wireless LAN | | Integrated Audio | 5.1-channel high-definition audio | | | | Power Requirements | 19 VDC | | Power Consumption | 4 A | | Dimensions (W x H x D) | 8.27 x 1.97 x 7.48" / 21 x 5 x 19 cm | | Weight (Approximate) | 3.2 lb / 1.5 kg | | | | Package Weight | 5.455 lb | | Box Dimensions (LxWxH) | 16.4 x 11.9 x 3.7" |
