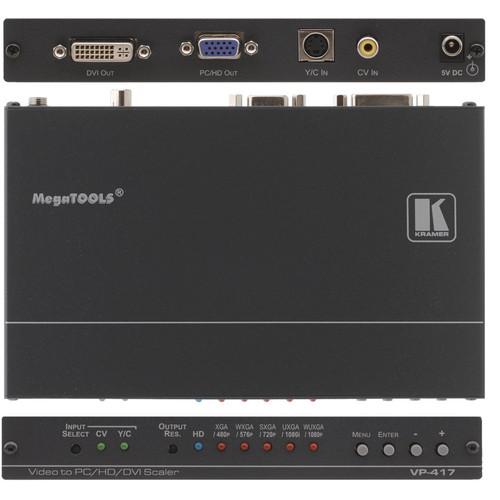

User Manual for Kramer Video to Computer Graphics Video DVI HDTV ProScale Digital Scaler Click to enlarge the picture
Contents of the user manual for the Kramer Video to Computer Graphics Video
- Product category: Signal Converters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Signal Converters
|
User manual for the Kramer Video to Computer Graphics Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Video to Computer Graphics Video / DVI / HDTV ProScale Digital Scaler is designed to scale composite video and s-Video signals to a selectable computer graphics video or HDTV output signal via 15-pin HD and DVI-D connectors simultaneously. It supports PC resolutions up to WUXGA and HDTV resolutions up to 1080p. Equipped with a non-volatile memory, the ProScale Digital Scaler stores the most recent settings for future reference.
Front panel selector buttons and on-screen menus allow for easy control of the Digital Scaler. Using a built-in ProcAmp, the Video to Computer Graphics Video / DVI / HDTV ProScale Digital Scaler allows you to adjust features such as color, sharpness, brightness, contrast, etc. The scaler also includes additional features such as multiple aspect ratio selections and user selectable digital noise reduction, and offers LED indication for HD signals. Using the optional RK-T2B universal rack adapter, 2 units can be racked together in a 1U space. - For scaling composite video and s-Video signals to a selectable computer graphics video or HDTV output signal
- Simultaneous output on 15-pin HD and DVI-D connectors
- Supports PC resolutions up to WUXGA and HDTV resolutions up to 1080p
- Non-volatile memory - stores the most recent settings for future reference
- Front panel selector buttons and on-screen menus for easy control
- Built-in ProcAmp to adjust features such as color, sharpness, brightness, contrast, etc.
- Multiple aspect ratio selection
- User selectable digital noise reduction
- HD signal indication via a LED
- 2 units can be racked together in 1U space when used with the optional RK-T2B universal rack adapter
In the Box Kramer Video to Computer Graphics Video / DVI / HDTV ProScale Digital Scaler Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Video to Computer Graphics Video DVI HDTV ProScale Digital Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-417 Specs | Inputs | 1 Y/C (s-Video) 1Vpp (Y), 0.3Vpp (C)/75Ω on a 4-pin connector; 1 CV 1Vpp/75Ω on an RCA connector | | Outputs | 1 digital video on a DVI-I connector
1 VGA on a 15-pin HD (F) connector | | Output Resolutions | PC: VGA, SVGA, XGA, 1280x800, WXGA, WSXGA, SXGA, 1400x1050, 1680x1050, UXGA, WUXGA, 1920 x 1080, Native
HDTV: 480p, 576p, 720p @50/60 Hz, 1080i @50/60 Hz, 1080p @50/60 Hz | | Output Refresh Rate | 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions | | Controls | Input selection, output resolution selection, Menu, Enter, - and + buttons | | Power Source | 5 V/560 mA DC | | Dimensions (WxDxH) | 7.4 x 4.5 x 1" (18.8 x 11.4 x 2.4 cm) | | Weight | 1.45 lb (0.66 kg) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 13.6 x 8.5 x 2.9" |
