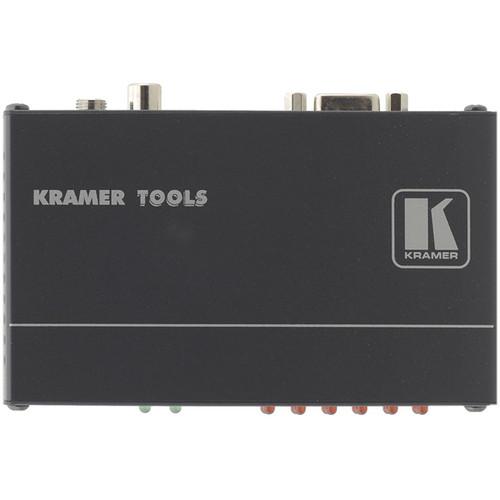

User Manual for Kramer Video to Computer Graphics Video ProScale Digital Scaler Click to enlarge the picture
Contents of the user manual for the Kramer Video to Computer Graphics Video
- Product category: Signal Converters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Signal Converters
 |
User manual for the Kramer Video to Computer Graphics Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Video to Computer Graphics Video ProScale Digital Scaler is used to scale composite and s-video (Y/C) video signals to a computer graphics video output on a 15-pin HD connector. Supporting both NTSC & PAL formats, it provides selectable output with resolutions up to WUXGA. A built-in De-interlacer and Comb filter provide high quality video signals for the display.
Featuring a non-volatile memory, the Video to Computer Graphics Video ProScale Digital Scaler retains the last used setting even if the device is turned off for quick operation in repetitive projects. It features front panel buttons for choosing input signal and output resolution, and requires a 5V DC supply for operation supplied by a power adaptor (included). In addition, 3 units can be mounted side-by-side in 1U rack space with the optional RK-3T rack adaptor. - Used to scale composite and s-video (Y/C) video signals to a computer graphics video output
- Supports both NTSC & PAL formats
- Provides selectable output with resolutions up to WUXGA
- Built-in De-interlacer and Comb filter - provide high quality video signals for the display
- Non-volatile memory - retains the last used setting

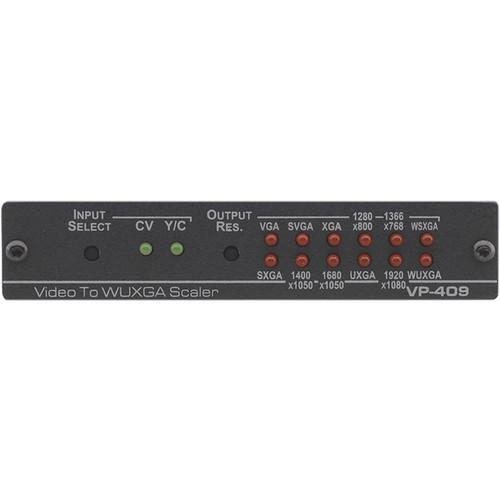

- Features front panel buttons for choosing input signal and output resolution
- Requires a 5V DC supply for operation supplied by a power adaptor (included)
- 3 units can be mounted side-by-side in 1U rack space with the optional RK-3T rack adaptor
In the Box Kramer Video to Computer Graphics Video ProScale Digital Scaler Power Supply Limited 7-Year Warranty User Manual PDF 784kbarwuwqbcasrf Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Video to Computer Graphics Video ProScale Digital Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

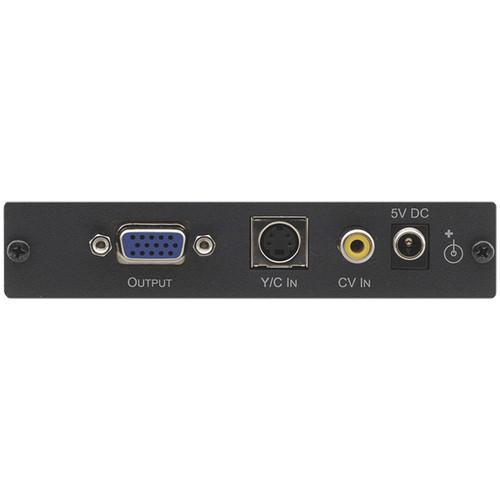

Technical parametersKramer VP-409 Specs | Input | 1 CV 1Vpp/75Ω on an RCA connector; 1 Y/C 1Vpp (Y); 0.3Vpp (C)/75Ω on a 4-pin connector | | Output | 1 VGA (VGA through WUXGA) on a 15-pin HD computer graphics video connector | | Output Resolutions | VGA/SVGA/XGA: 1280x800, 1366x768
WSXGA/SXGA: 1400x1050, 1680x1050
UXGA: 1920x1080
WUXGA | | Output Refresh Rate | 60Hz | | Controls | Push buttons and LEDs for selection of input source and output resolution | | Power Source | 5V DC, 450mA | | Dimensions (WxDxH) | 4.7 x 2.95 x 0.98" (12 x 7.5 x 2.5 cm) | | Weight | 0.67 lb (0.3 kg) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.1 x 4.8 x 3.5" |
