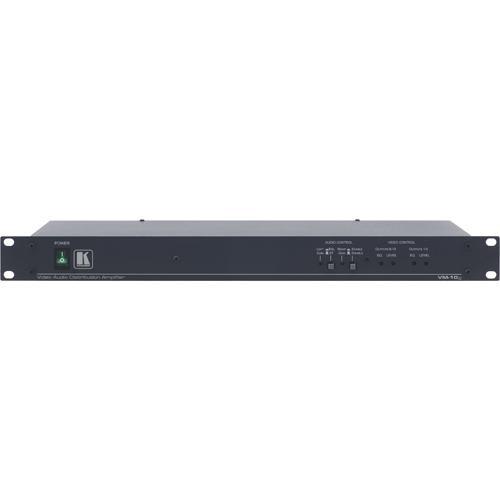

Product description The VM-10xl 1:10 Composite Video & Stereo Audio Distribution Amplifier from Kramer is a broadcast-quality distribution amplifier designed for use with composite or SDI video signals. It also supports unbalanced stereo or balanced mono audio. The unit provides controls to compensate for signal losses that occur in long cable runs. - This unit offers a bandwidth of 360MHz (-3dB)
- Level (gain) and EQ (peaking) controls are standard features
- The amplifier also features a looping input
- Selectable input signal termination is supported
- It includes video AC/DC coupling selection
- The unit can be mounted in standard 19" equipment rack using the device's built-in rack ears
In the Box Kramer VM-10xl 1:10 Composite Video & Stereo Audio Distribution Amplifier Power Cord Seven-Year Warranty Against Defects in Material & Workmanship User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VM-10xl 1:10 Composite Video & Stereo Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-10XL Specs | Performance | Input:
(1) composite video
(1) looping
(1) Vpp/75 Ohms with termination switch on BNC connectors
(2) audio, stereo or balanced mono
(2) looping, 1Vpp/50 kOhms on RCA connectors
Outputs:
(10) composite video, 1Vpp/75 Ohms on BNC connectors
(10) audio, stereo or balanced mono, 1Vpp/50 Ohms on RCA connectors
Maximum Output Level:
Video: 1.6Vpp
Audio: 26.5Vpp
Bandwidth (-3dB):
Video: 360MHz
Audio: 100kHz
Differential Gain:
0.07%
Differential Phase:
0.05 degrees
K-Factor:
<0.05%
Signal-to-Noise Ratio:
Video: 77dB
Audio: 87dB
Controls:
Front panel accessible trimmers for video level (-1.2dB to +6dB) and EQ. (0dB to +8.1dB), audio left and right control trimmers (0dB to +6dB), balanced/stereo selector switch and audio controls enable switch.
Coupling:
Video: DC/AC
Audio: AC (input), DC (output)
Audio THD + Noise:
0.023%
Audio 2nd Harmonic:
0.001% | | Power | 230VAC, 50/60Hz, 115V, 4.7VA | | Dimensions (HxWxD) | 1.75 x 19 x 7" | | Weight | 4.7 lbs (2.1kg) | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 21.5 x 11.0 x 4.5" |
