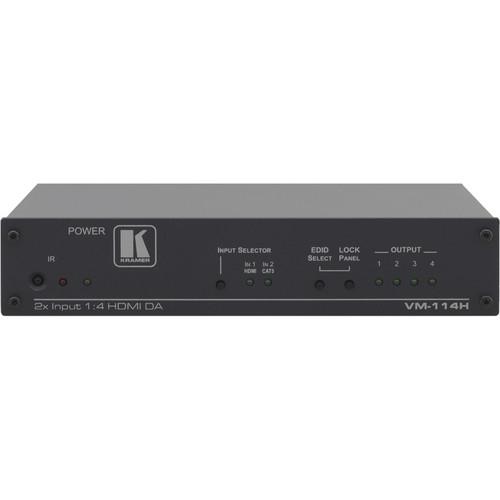

Product description The Kramer Electronics VM-114H HDMI Switcher & Distribution Amplifier is meant for HDMI and DGKat twisted pair signals. It re-clocks and equalizes one of two selectable input signals and distributes it to four identical HDMI outputs. - Maximum data rate 6.75 Gb/s (2.25 Gb/s per graphic channel)
- DGKat Signal Integration: Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables 1
Please Note: Recommends using Kramer DGKat cables designed specifically for optimum performance close - I-EDIDPro Kramer Intelligent EDID Processing: Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
- HDMI Support: Deep color (on the HDMI input), x.v.Color, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD
- Kramer Equalization and re-Klocking technology rebuilds the digital signal to travel longer distances
- System Range: Up to 295' (90m) at 1080i, or up to 98' (30m) at 1080p on shielded BC−DGKat524 cable (sold separately). Up to 295' (90m) at 1080i, or up to 230' (70m) at 1080p on shielded BC−DGKat623 cable. Up to 330' (100m ) at 1080i or up to 295' (90m) at 1080p on shielded BC−DGKat7a23 cable (sold separately)
- Cable: Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC−DGKat524, BC−DGKat623 or BC−DGKat7a23 cables (sold separately) 2
Please Note: The transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground. close - Active Input & Output LED Indicators
- Power Connect System: A single connection to the transmitter or the receiver powers both units when the devices are within 270' (90m) of each other
- Flexible Control Options: Front panel buttons, RS−232, IR control sensor, remote included
- Desktop Size: Compact size 2 units can be rack mounted side−by−side in a 1U rack space with the RK−1 adapter (sold separately)
In the Box Kramer VM-114H HDMI Switcher & Distribution Amplifier Power Supply Bracket Installation Kit RC−IR3 infrared remote control transmitter Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VM-114H HDMI Switcher & Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-114H Specs | Inputs | 1x HDMI connector; 1x DGKat on an RJ−45 connector | | Outputs | 4x HDMI connectors | | Maximum Data Rate | 6.75 Gb/s (2.25 Gb/s per graphic channel) | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Controls | Input select button, EDID select button, panel lock button | | Indicators | IR communication, power, IN 1(HDMI), IN 2 (CAT 5), OUTPUT 1, 2, 3, and 4. | | Power Consumption | 12 VDC, 500 mA | | Dimensions (W x D x H) | 8.5 x 3.0 x 1.7" (21.5 x 7.5 x 4.4 cm) | | Weight | 1.98 lb (0.9 kg) | | | | Box Dimensions (LxWxH) | 35.1 x 21.2 x 7.2" |
