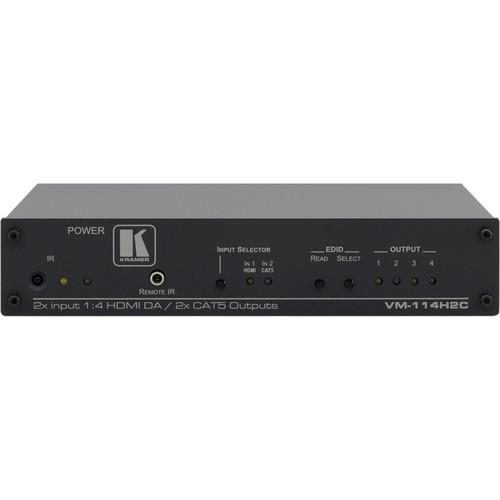

Product description The Kramer VM-114H2C 2 x 1:4 HDMI / DGKat Switcher & Distribution Amplifier is a high-performance switcher and distribution amplifier for HDMI and DGKat twisted pair signals. It re-clocks and equalizes 1 of 2 selectable input signals (HDMI or DGKat twisted pair) and distributes it to 2 DGKat twisted pair and 2 HDMI outputs. - Maximum Data Rate: 2.25 Gbps bandwidth per graphic channel (HDMI), 1.65 Gbps bandwidth per graphic channel (DGKat)
- DGKat Signal Integration: Kramer's technology for converting TMDS as well as control and communication to signals that run over twisted pair cables 1
Please Note: Use of Kramer DGKat cables, designed specifically for optimum performance, is strongly recommended. close - I-EDIDPro Kramer Intelligent EDID Processing: Intelligent EDID handling and processing algorithm ensures Plug-and-Play operation for HDMI systems
- HDMI Support: x.v.Color, HDMI uncompressed audio channels, Dolby TrueHD, and DTS-HD (only on the TP inputs and outputs)
- Kramer Equalization & re-Klocking Technology: Rebuilds the digital signal to travel longer distances
- System Range: Up to 295' (90 m) at 1080i or up to 98' (30 m) at 1080p on shielded BC-DGKat524 cable. Up to 295' (90 m) at 1080i, or up to 230' (70 m) at 1080p on shielded BC-DGKat623 cable. Up to 330' (100 m) at 1080i or up to 295' (90 m) at 1080p on shielded BC-DGKat7a23 cable
- Cable: Requires STP (shielded twisted pair) cable 2
Please Note: Note1: For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 or BC-DGKat7a23 cables.
Note2: The transmission range depends on the signal resolution, source device and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground. close - Active input & output LED indicators
- Power Connect System: A single connection to the transmitter or the receiver powers both units when the devices are within 270' (90 m) of each other
- Flexible Control Options: Front panel buttons, RS-232, IR control sensor, and remote (included)
- 2 units can be rack mounted side-by-side in a 1U rack space using an optional RK-1 adapter
- Suitable for home theater, presentation, multimedia, rental, and staging applications
In the Box Kramer VM-114H2C 2 x 1:4 HDMI / DGKat Switcher & Distribution Amplifier Power Supply Bracket Installation Kit RC-IR3 Remote Control Transmitter 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VM-114H2C 2 x 1:4 HDMI DGKat Switcher & Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-114H2C Specs | Compatible With | Transmitters: PT-571, TP-573, TP-577
Receivers: PT-572, TP-575, TP-576, TP-577 | | Input | 1 HDMI connector
1 DGKat twisted pair on an RJ-45 connector | | Output | 2 HDMI connectors
2 DGKat twisted pairs on RJ-45 connectors | | Maximum Data Rate | 2.25 Gbps per graphic channel (HDMI)
1.65 Gbps per graphic channel (DGKat) | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Controls | Input select button, EDID select button, panel lock button, RS-232, and local and remote IR controls | | LED Indicator | IR communication, power, IN 1( HDMI), IN 2 (CAT 5), and output 1, 2, 3, and 4 | | Power Consumption | 12 VDC, 910 mA | | Dimensions (W x D x H) | 8.5 x 3 x 1.7" (21.5 x 7.5 x 4.4 cm) | | Weight | 1.98 lb (0.9 kg) | | | | Box Dimensions (LxWxH) | 21.46 x 16.3 x 4.36" |
