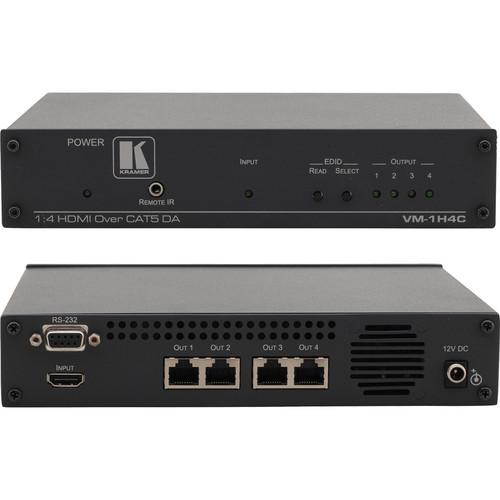

Product description The Kramer VM-1H4C 1:4 HDMI Twisted Pair Transmitter and Distribution Amplifier is a high-quality distribution amplifier for HDMI, RS-232, and IR signals over a twisted pair (TP) cable. It re-clocks and equalizes the input signal and distributes it to 4 TP outputs. - Maximum Data Rate: Supports up to 4.95 Gbps (1.65 Gbps per graphic channel)
- I-EDIDPro Kramer Intelligent EDID Processing: Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
- HDMI Support: x.v.Color and uncompressed audio channels, Dolby TrueHD, and DTS-HD 3D pass-through
- Kramer Equalization & re-Klocking Technology: Rebuilds the digital signal to travel longer distances
- System Range: Up to 295' (90 m) at 1080i, or up to 98' (30 m) at 1080p on shielded BC-DGKat524 cable. Up to 295' (90 m) at 1080i or up to 230' (70 m) at 1080p on shielded BC-DGKat623 cable. Up to 330'(100 m) at 1080i or up to 295' (90 m) at 1080p on shielded BC-DGKat7a23 cable
- Power Connect: VM-1H4C provides power to the twisted pair receivers when they are within 270' (90 m) of the transmitter
- Requires STP (shielded twisted pair) cable 1
Please Note: Note1: For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 or BC-DGKat7a23 cables.
Note2: The transmission range depends on the signal resolution, source device, and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground. close - Active input & output LED indicators
- Serial Command Handling: Transmits serial commands transparently via the RS-232 port and the TP link
- Desktop Size: Compact size; 2 units can be rack mounted side-by-side in a 1U rack space with an optional RK-1 adapter
- Suitable for home theater, presentation and multimedia, rental and staging applications
In the Box Kramer VM-1H4C 1:4 HDMI Twisted Pair Transmitter and Distribution Amplifier Power Supply 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VM-1H4C 1:4 HDMI Twisted Pair Transmitter and Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-1H4C Specs | Inputs | 1 HDMI connector, 1 RS-232 on a 9-pin D-sub connector
1 IR on a 3.5 mm mini jack | | Output | 4 twisted pair on RJ-45 connectors | | Bandwidth | Supports up to 4.95 Gbps (1.65 Gbps per graphic channel) | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Indicators | LEDs: Power, INPUT, and OUTPUT 1, 2, 3, and 4 | | Power Consumption | 12 VDC, 2A | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -49 to 162°F (-45 to 72°C) | | Humidity | 10 to 90%, RH (non-condensing) | | Dimensions (W x D x H) | 8.5 x 6.38 x 1.7" (21.5 x 16.2 x 4.4 cm) | | Weight | 1.98 lb (0.9 kg) | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 13.7 x 8.5 x 2.7" |
