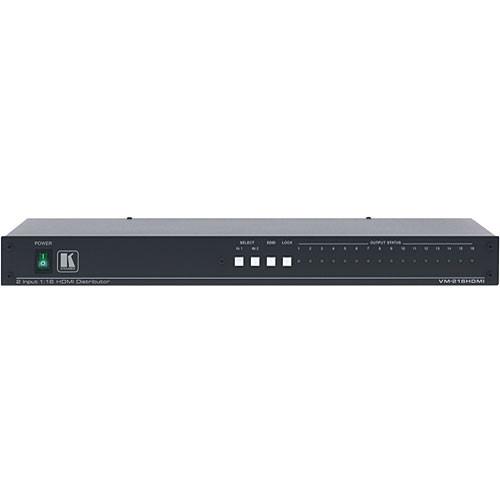

User Manual for Kramer VM-216HDMI 2x1:16 HDMI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer VM-216HDMI 2x1:16 HDMI Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
|
User manual for the Kramer VM-216HDMI 2x1:16 HDMI Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VM-216HDMI 2x1:16 HDMI Distribution Amplifier from Comprehensive/Kramer is designed for use with HDMI signals. The unit accepts one set of (2) selectable inputs, provides reclocking and equalization to the signal, then distributes it to (16) independent outputs. It is well suited for use in home theaters and rental & staging work, among many other similar settings and applications.
It offers bandwidth capacity of 1.65Gbps and is HDCP compliant. Enhanced EDID (Extended Display Identification Data) can capture an EDID setting from a device connected to the unit's output and store it in non-volatile memory, allowing you to recall the setting or a factory default EDID. LED lights also provide a visual indicator of line status. This unit features a worldwide power supply and can be used as a standalone or rackmount solution. - 2 x 1:16 HDMI Distribution Amplifier
- Use this device to select between (2) HDMI inputs and distribute the signal to (16) independent outputs.
- Signal Integrity
- Signal reclocking and equalization ensures integrity and extends transmission distance.
- Bandwidth
- This unit offers bandwidth capacity of 1.65Gbps.
- Enhanced EDID
- It includes enhanced EDID functionality, which can capture an EDID setting from a device connected to the unit's output and store it in non-volatile memory.
- Standalone or Rackmount
- It is equally well suited for standalone or rackmount use.
In the Box Kramer VM-216HDMI 2x1:16 HDMI Distribution Amplifier Distribution Amplifier Power Cord Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VM-216HDMI 2x1:16 HDMI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-216H Specs | Construction | Metal | | Finish | Black | | Input | (2) HDMI | | Output | (16) HDMI | | Bandwidth | Supports up to 1.65Gbps bandwidth per graphic channel | | Standard | Supports HDMI 1.2 and HDCP | | Control | EDID
IN 1
IN 2
LOCK buttons | | Indicators | Output status LEDs | | Power | 90-240VAC 50/60Hz 31VA | | Dimensions (HxWxD) | 1.75 x 19 x 7"
1U rack height | | Weight | 5.5 lbs (2.5 kg) | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 21.7 x 13.2 x 4.4" |
