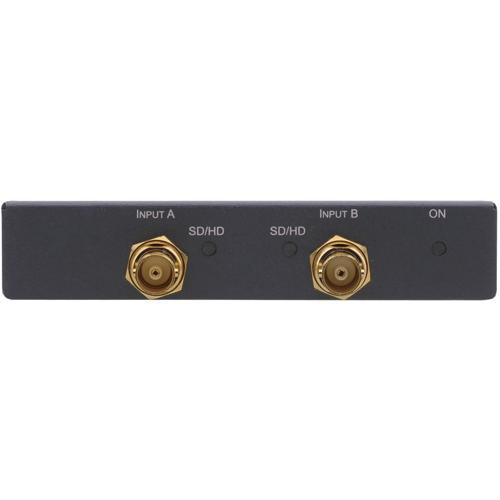

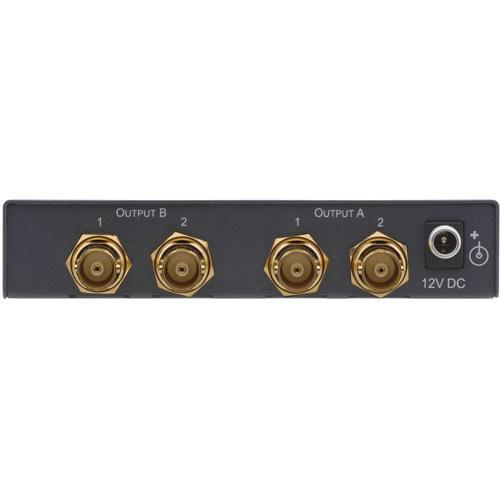

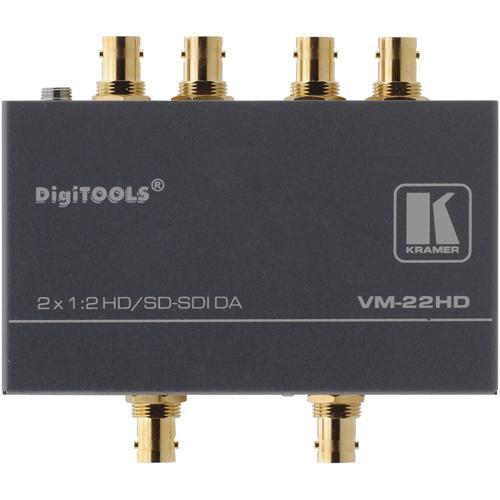

Product description The VM-22HD Dual-Mode 1:2 HD-SDI Distribution Amplifier from Kramer is designed to manage SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), and dual-link HD-SDI (SMPTE 372M) signals. It can be configured as (1) or (2) 1:2 distribution amplifiers. This solution is well suited for use in production studios, on-air broadcast work, field production, and professional digital players, among many other possible applications and settings. - This unit can be used to distribute SDI, HD-SDI, and dual-link HD-SDI signals
- It can be configured as (1) or (2) 1:2 distribution amplifiers
- It offers a maximum data rate of 1.485Gbps
- It features proprietary Kramer technology that reclocks and equalizes signals, allowing for longer transmission distances without a loss of signal integrity
- LED indicators provide a visual reference to signal status
- Up to (3) of these units can be mounted side by side in 1U of rack space using the separately available RK-3T Rack Adapter
In the Box Kramer VM-22HD Dual-Mode 1:2 HD-SDI Distribution Amplifier Power Supply Mounting Bracket Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VM-22HD Dual-Mode 1:2 HD-SDI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-22HD Specs | Inputs | (2) SMPTE-259M, 344M, 292M, 372M serial video, 75 Ohms on a BNC connectors | | Outputs | (4) SMPTE-259M, 344M, 292M, 372M serial video, 75 Ohms on a BNC connectors | | Performance | Maximum Output Level: 800mVpp/75 Ohms
Maximum Baud Rate: 1.485Gbps | | Power | 12VDC, 250mA | | Dimensions (HxWxD) | 1 x 4.7 x 2.8" (2.4 x 12.1 x 7.2cm) | | Weight | 0.66 lbs (0.3kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.0 x 5.5 x 4.0" |
