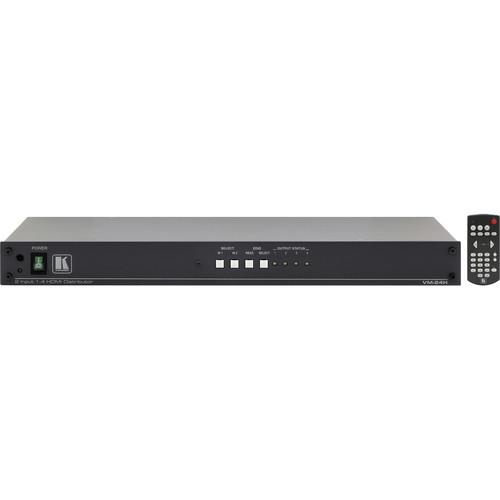

User Manual for Kramer VM-24HDMI 2x1:4 HDMI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer VM-24HDMI 2x1:4 HDMI Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
 |
User manual for the Kramer VM-24HDMI 2x1:4 HDMI Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer VM-24HDMI 2x1:4 is a HDMI Distribution Amplifier designed to take (2) selectable inputs and distribute them to (4) relocked and equalized outputs. The VM-24HDMI comes equipped with an IR remote control and is completely HDCP compliant. Additionally, the system has the capability of being controlled via RS-232. - The unit can store a separate EDID (Extended Display Identification Data) for each input in non-volatile memory as well as having a default EDID if one is not stored. This allows a convenient and reliable connection to the source.
- Maximum data rate of 2.25Gbps.
- HDTV compatible, with both HDMI 1.3 and HDCP compliance.
- Standard 19" rack-mount size.
- Active output input indication LEDs.
In the Box Kramer VM-24HDMI 2x1:4 HDMI Distribution Amplifier RC-IR3 Infrared Remote Controller vfdtussdfuyt Power Cord Null-Modem Adapter Windows Software Rack Mount Kit 1-Year Warranty User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VM-24HDMI 2x1:4 HDMI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

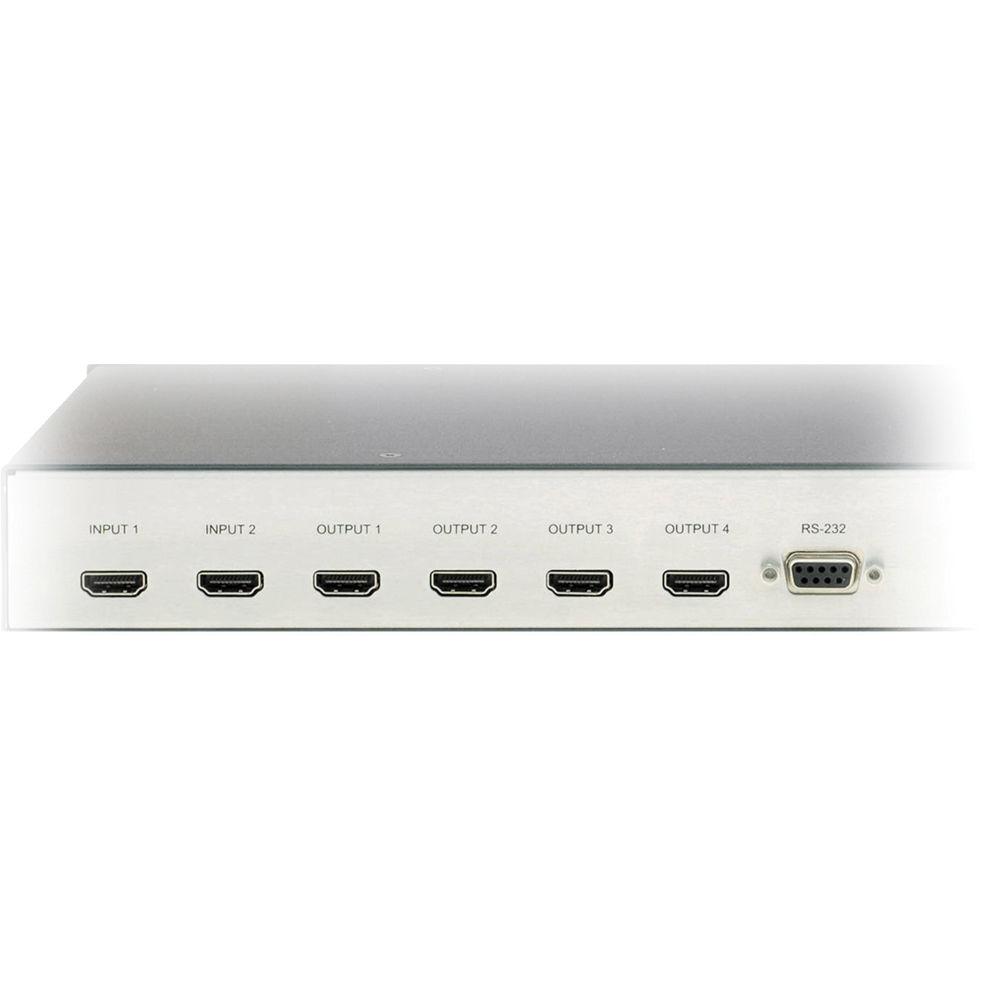

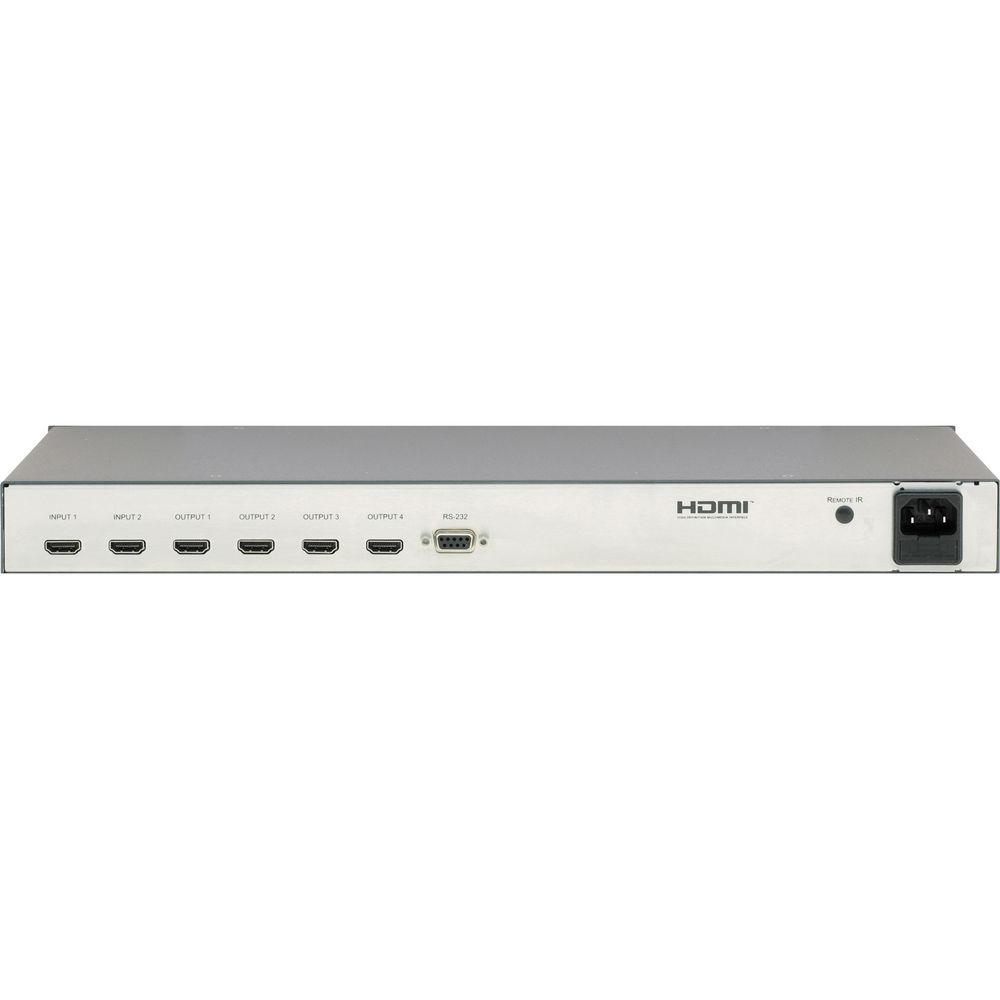

Technical parametersKramer VM-24H Specs | Inputs/Outputs | HDMI 1.3: HDMI Type-A (x2 Input, 4x Output)
RS-232C: 9-Pin D-Sub (x1) | | Data Rate | 2.25Gbps | | Power Requirements | 100/240VAC, 50/60Hz | | Power Consumption | 16VA | | Dimensions (WxHxD) | 19 x 1.8 x 7" (48.3 x 4.4 x 17.8) | | Weight | 5.5 lbs (2.5kg) | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 21.4 x 10.9 x 4.2" |
