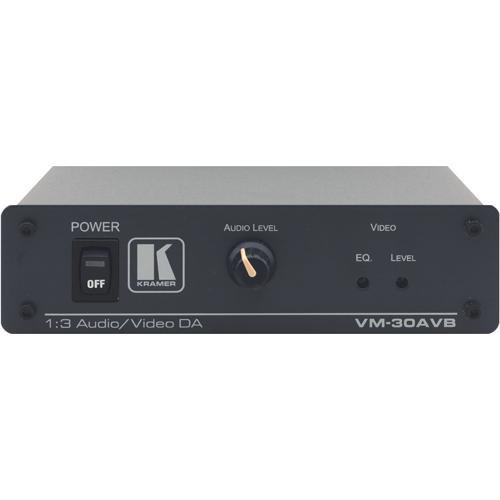

Product description The VM-30AVB 1:3 Composite Video & Stereo Audio Distribution Amplifier from Kramer is a compact distribution amplifier designed for use with composite or SDI video signals. It also supports unbalanced stereo or balanced mono audio. The unit also provides controls to compensate for signal losses that occur in long cable runs. - This unit offers a bandwidth capacity of 430MHz at -3dB
- Video signals are managed on BNC connectors
- Level (gain) and EQ (peaking) controls are standard features
- Up to (2) of these units can be rack mounted side by side in 1U of rack space using the optional RK-1 adapter
In the Box Kramer VM-30AVB 1:3 Composite Video & Stereo Audio Distribution Amplifier 12VDC Power Supply Brackets (For Stacking Multiple Units) Seven-Year Warranty Against Defects in Material & Workmanship User Manual PDF 684.4kbvycwqcsxbc Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VM-30AVB 1:3 Composite Video & Stereo Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-30AVB Specs | Performance | Inputs:
(1) video
(1) Vpp/75 Ohms on a BNC connector
(1) audio stereo
(1) Vpp/70 kOhms on RCA connectors
Outputs:
(3) video
(1) Vpp/75 Ohms on BNC connectors
(3) audio stereo
(1) Vpp/150 Ohms on RCA connectors
Maximum Output Level:
Video: 2Vpp
Audio: 5.4Vpp
Bandwidth (-3dB):
Video: 430MHz
Audio: 100kHz
Differential Gain:
0.04%
Differential Phase:
0.07 degrees
K-Factor:
<0.05%
Signal-to-Noise Ratio:
Video: 73dB
Audio: 83dB
Controls:
Video level: -1.1 to +1.8dB, EQ.: 0 to +4.6dB @5.8MHz;
Audio level: -66 to +16dB
Coupling:
AC
Audio THD + Noise:
0.03%
Audio 2nd Harmonic:
0.02% | | Power | 12VDC, 50mA (typical) | | Dimensions (HxWxD) | 2.8 x 6.5 x 4.7" (4.5 x 16.5 x 12cm) | | Weight | 1.4 lbs (0.65kg) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 13.6 x 8.5 x 3.0" |
