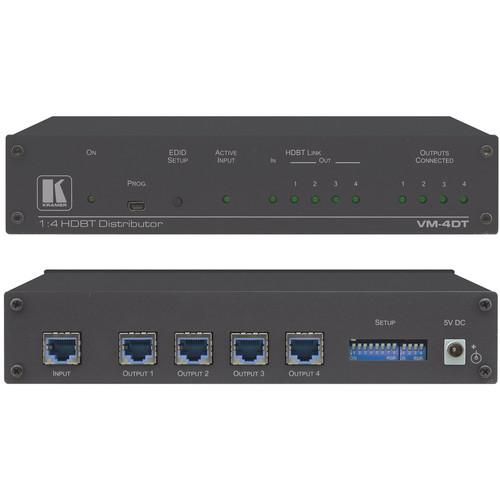

User Manual for Kramer VM-4DT 1x4 4K60 4:2:0 Long-Reach HDBaseT Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer VM-4DT 1x4 4K60 4:2:0 Long-Reach
- Product category: KVM Switches Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Switches
|
User manual for the Kramer VM-4DT 1x4 4K60 4:2:0 Long-Reach contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The Kramer VM- 4DT is an extender distributor that takes one long−reach HDBaseT input, equalizes and reclocks the signal, and distributes it to four identical HDBaseT outputs. It distributes native HDBaseT signals with up to 4K video resolution, along with their re−extension over HDBaseT. - Distributes one native, long-reach HDBaseT signal to three outputs with up to 4K video resolution, along with their re-extension over HDBaseT
- Extends a 4K@60Hz (4:2:0) 24 bpp (maximum) video signal up to 130', and even further for lower video resolutions, when deployed mid-way between an AV source and multiple remote acceptors using CAT copper cable
- Connects to any HDBaseT compliant extension product
- HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID, and CEC (OUT 1 only) signals are passed through from the source to the display
- Supports Kramer's I-EDIDPro intelligent EDID handling, processing, and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems
- LED indicators for HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting
- Easy Installation - twisted-pair cables for HDBaseT signals wiring
- Standard half-width 19" rack (1U) enclosure for side-by-side mounting of 2 units in a 1U rack space
- Applications:
Native AV signal re-extension and distribution in large rooms
Suitable for corporate, education, hospitality, and government market segments In the Box Kramer VM-4DT 1x4 4K60 4:2:0 Long-Reach HDBaseT Distribution Amplifier Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VM-4DT 1x4 4K60 4:2:0 Long-Reach HDBaseT Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-4DT Specs | Input | 1 x HDBaseT on an RJ45 female connector | | Outputs | 4 x HDBaseT on RJ45 female connectors | | Maximum Data Rate | 10.2 Gb/s (3.4 Gb/s per graphic channel) | | Extension Range | Input or Output Each Side:
Up to 130' (40 m) at 4K at 60 Hz (4:2:0)
Up to 230' (70 m) at 1080p at 60 Hz 36 bpp
Note: When using Kramer HDBaseT cables | | Maximum Video Resolution | 4K at 60 Hz (4:2:0) 24 bpp | | Compliance | Supports HDMI 2.0, HDCP 1.4, and HDBaseT 1.0 | | Controls | EDID setup button, indicator LEDs (outputs 1-3)
LINK 1-3
Active input, power on | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Power Source | 5.2 VDC, 4 A | | Power Consumption | 5 VDC, 3.5 A | | Enclosure | Desktop size
Material: Aluminum | | Cooling | Fan ventilation | | Dimensions | 7.4 x 4.5 x 1" (18.8 x 11.5 x 2.5 cm) | | Weight | Approximately 1.2 lb (0.5 kg) |
