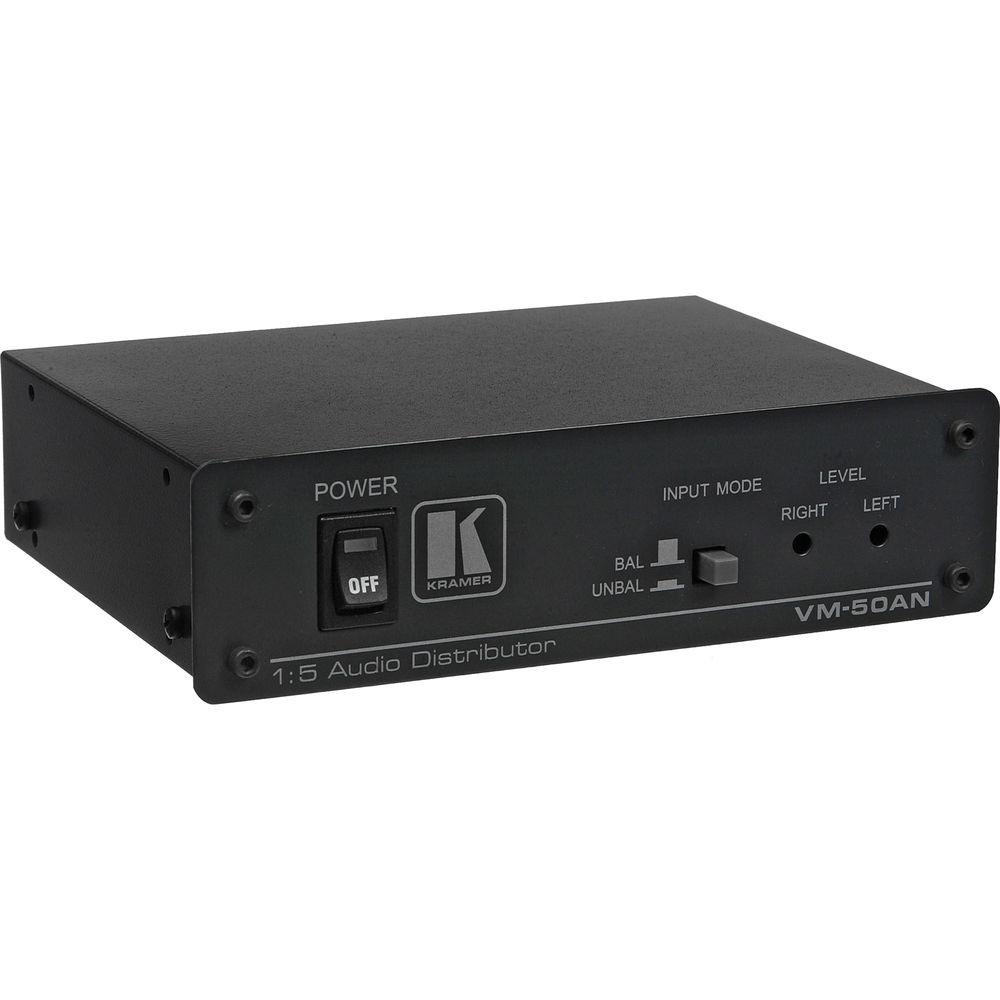

User Manual for Kramer VM-50AN 1:5 Audio Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer VM-50AN 1:5 Audio Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
 |
User manual for the Kramer VM-50AN 1:5 Audio Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

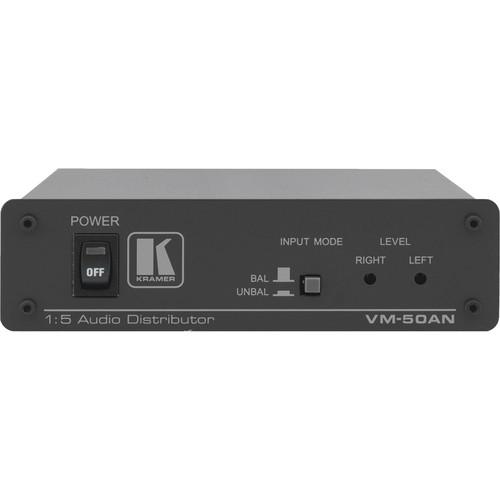

Product description The VM-50AN 1:5 Audio Distribution Amplifier from Kramer is a high-performance distribution amplifier designed to manage balanced and unbalanced stereo audio signals. It takes one balanced or unbalanced stereo input and distributes the signal simultaneously to (10) stereo outputs (5 balanced and 5 unbalanced).
This is an ideal unit for those seeking an economical solution for production, duplication, retail, point-of-sale, security, or CCTV applications. It is also equally well suited for schools, boardrooms, or any A/V system requiring high-quality signal distribution. This unit's small, desktop size makes it easy to manage and two units can even be rack mounted side by side in a 1U space by using the optional RK-50RN adapter. - 1 Inputs & 10 Outputs
- This solution takes one balanced or unbalanced stereo input and distributes the signal simultaneously to (10) stereo outputs (5 balanced and 5 unbalanced).
- High-Quality Signal Distribution
- This solution is well suited for schools, boardrooms, or any A/V system requiring high-quality audio signal distribution.
- Small Footprint
- This unit's small, desktop size makes it easy to manage and two units can even be rack mounted side by side in a 1U space by using the optional RK-50RN adapter.
In the Box Kramer VM-50AN 1:5 Audio Distribution Amplifier Amplifier 12 VDC power supply Seven-Year Limited Warranty User Manual PDF 1.2mbfrafyvaddazqvqwwwr Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VM-50AN 1:5 Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

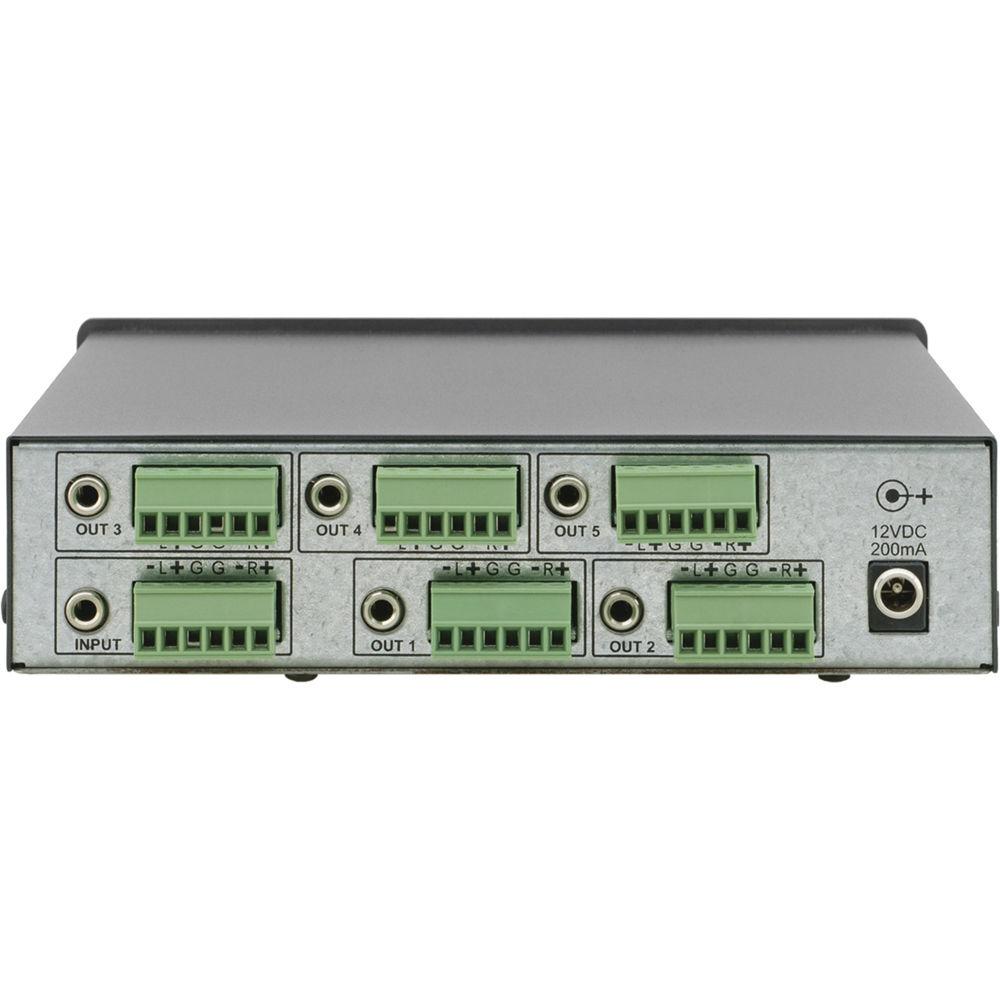

Technical parametersKramer VM-50AN Specs | Input | (1) balanced stereo +12dBm 50kΩ on detachable terminal block connector
(1) unbalanced stereo on mini 3.5 mm socket | | Output | (5) balanced stereo +22dBm 50Ω on detachable terminal block connectors
(5) unbalanced stereo +22dBm 470Ω on mini 3.5 mm socket | | Maximum Output Level | 28Vpp | | Bandwidth | 100kHz; 40kHz; Fully Loaded | | Signal to Noise Ratio | 83.95dB, unweighted | | Controls | Level (for right and left): 0.4 to 9.5dB | | Coupling | Input: AC; Output: DC | | THD & Noise | 0.022% @ 1 kHz, Balanced Output | | 2nd Harmonic | 0.022% @ 1 kHz, Balanced Output | | Power Source | 12VDC 200mA | | Dimensions (WxDxH) | 6-1/2 x 4-11/16 x 1-11/16" (16-1/2 x 12 x 4-1/2cm) | | Weight | 1.3 lbs (0.6kg) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 13.8 x 8.5 x 2.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
