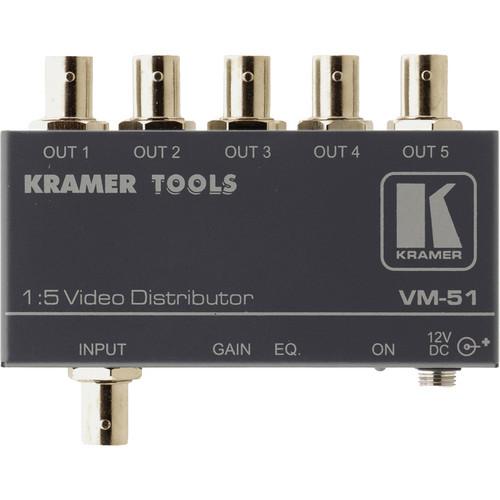

User Manual for Kramer VM-51 1X5 Video Distribution Amplifier - Composite Video, Compact Size, Gain and EQ Click to enlarge the picture
Contents of the user manual for the Kramer VM-51 1X5 Video Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
 |
User manual for the Kramer VM-51 1X5 Video Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

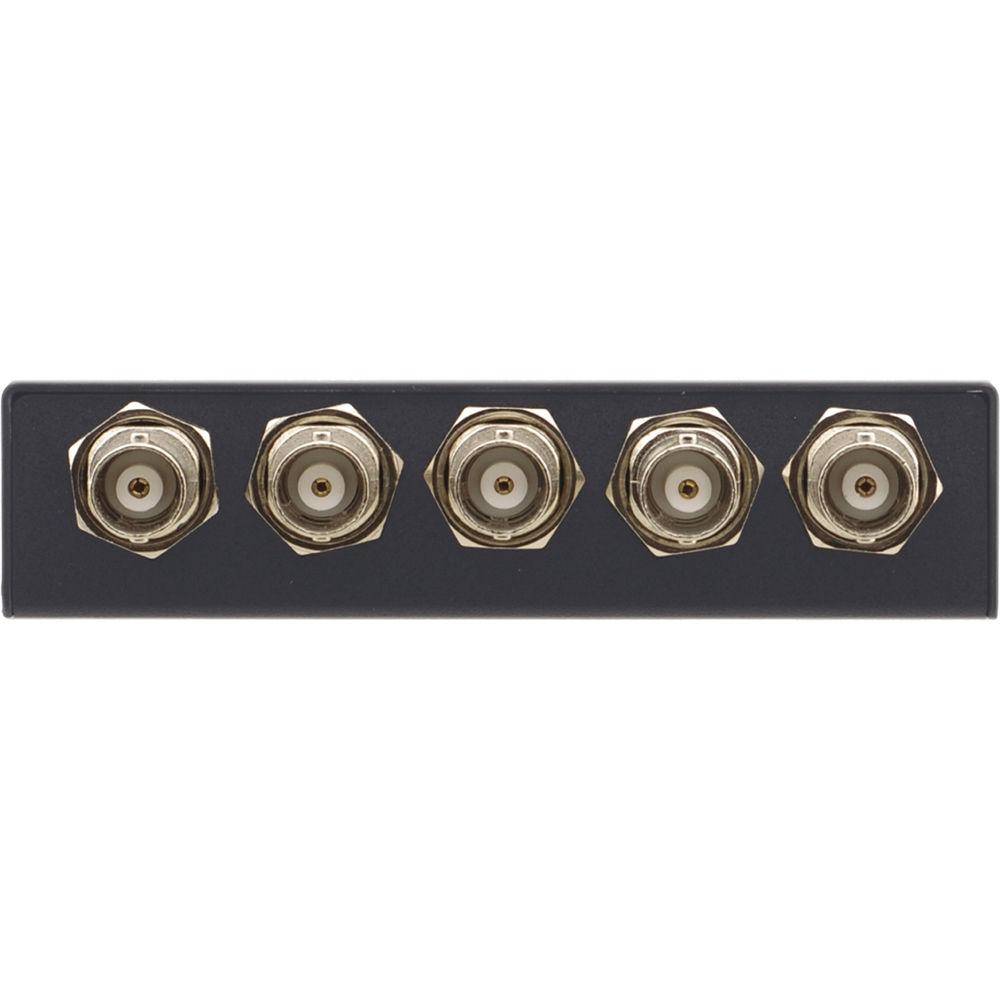

Product description The Comprehensive VM-51 is a 1x5 Video Distribution Amplifier; it accepts 1 composite video signal and outputs five identical composite signals. This unit offers adjustable outputs and a compact size. - High Bandwidth
- A bandwidth of 420 Mhz allow this device to pass high resolution analog signals and SDI digital signals.
- Gain and EQ Adjust

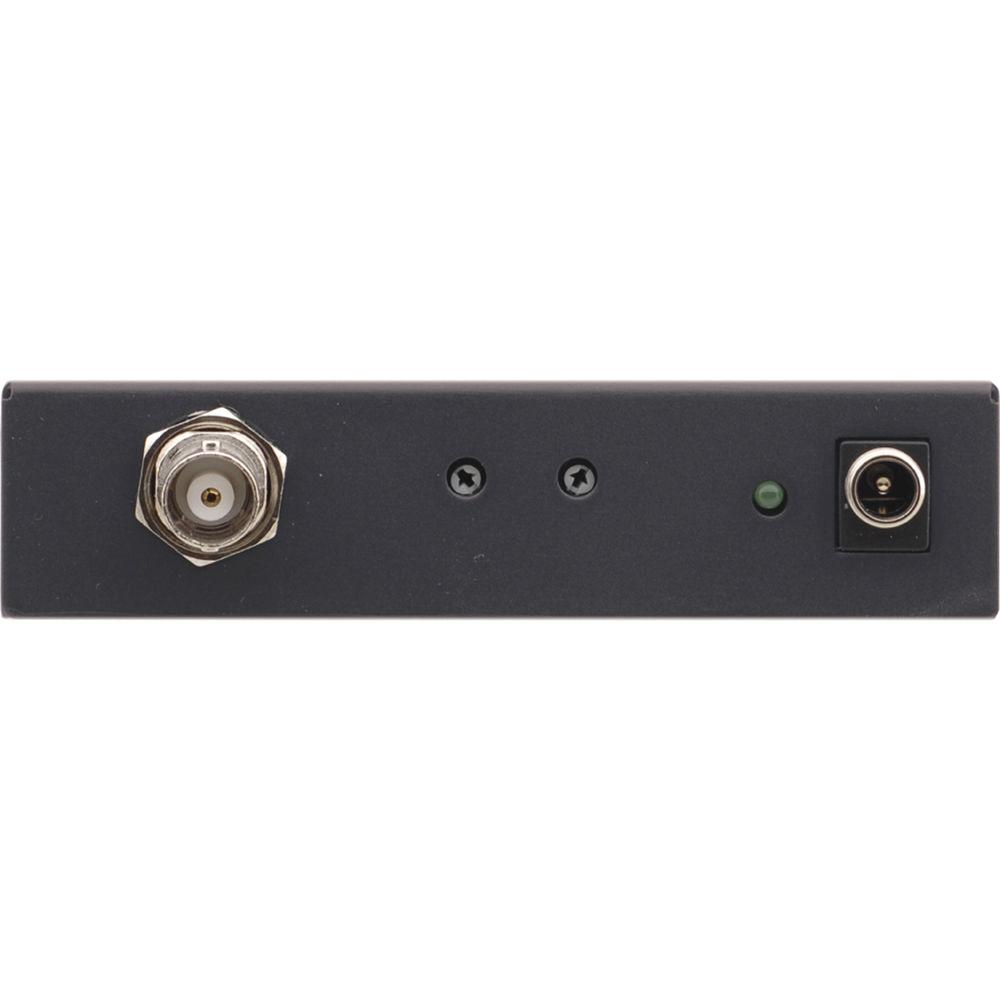

- Adjustment for cable length can be accessed on front panel trimmers.
- Compact Size
- This unit is less than 4" at its longest dimension; it will work great for location work or when space is at a premium
In the Box Kramer VM-51 1X5 Video Distribution Amplifier - Composite Video, Compact Size, Gain and EQ AC Power Adapter Mounting Brackets 3 Year Warranty User Manual PDF 179.1kbxwdfdszcvexbrczyfvctaqcvtayderyxvuev Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VM-51 1X5 Video Distribution Amplifier - Composite Video, Compact Size, Gain and EQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-51 Specs | Input | Composite Video, 1 Vpp @ 75 ohms, on a BNC connector | | Output | Composite Video x5, 1 Vpp @ 75 ohms, on BNC connectors | | Video Bandwidth | 420 Mhz | | Video Signal-to-Noise Ratio | 73 dB | | Differential Phase | 0.07° | | Differential Gain | 0.05% | | Video Control | Gain and EQ Trimmers | | Coupling | DC | | Power Source | 12 VDC on an AC Adapter | | Dimensions | 3.9 x 1.85 x 0.94"
9.9 x 4.7 x 2.4cm
W x D x H | | Weight | 0.44 lbs
0.2 kg | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.0 x 4.8 x 3.45" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
