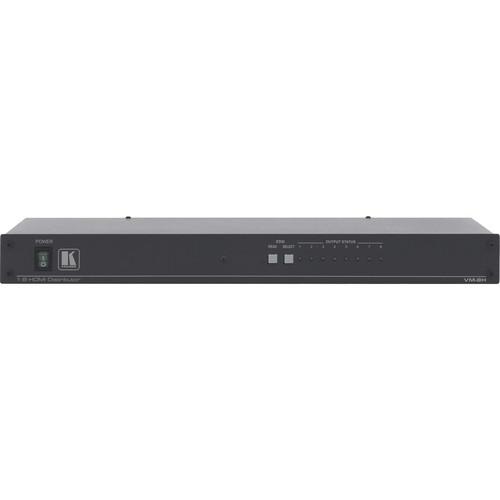

User Manual for Kramer VM-8H 1:8 HDMI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer VM-8H 1:8 HDMI Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
|
User manual for the Kramer VM-8H 1:8 HDMI Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description Featuring one HDMI input and eight HDMI outputs, the Kramer VM-8H 1:8 HDMI Distribution Amplifier reclocks and equalizes an HDMI input signal and distributes it as eight identical outputs. It allows you to view your HDMI source, such as a Blu-ray player, on up to eight displays.
When you connect a display, it becomes active and a corresponding LED on the front panel lights up to confirm it active status. All connected displays are active and will show the distributed signal. Next to the LEDs are "Select" and "Read" buttons that allow selecting and storing EDID information for efficient plug-and-play operation with HDMI displays. EDID refers to the timings -- such as audio, control, color space, signal type, display technology (like TFT, etc.), and many more -- that a display supports and the VM-8H can accommodate. Storing EDID for a particular display will allow for quicker recognition of the display when you plug it in again and again in the future.
The VM-8H is HDCP compliant, meaning it will play HDCP-encrypted content. Featuring 3D pass-through capability, it also supports 3D signals connected on input, and it will pass these signals to your displays as they are, in 3D format. The The VM-8H can be used table top and also fits standard 19" racks, and included a set of 1U rack ears. This DA supports 100-263V worldwide power input and can be used anywhere in the world if you incorporate the right endplug adapters, sold separately. - Key Features
-
- 6.75 Gbps max. data rate (2.25 Gbps per graphic channel)
- HDCP compliant
- Deep Color, x.v.Color, Lip Sync, and CEC HDMI support
- 3D pass-through
- I-EDIDPro Kramer Intelligent EDID Processing
- Kramer Equalization and re-Klocking technology
- Active output LED indicators
- 100-246 VAC, 50/60 Hz worldwide power input
- Fits standard 19" rack mount (1U rack ears included)
In the Box Kramer VM-8H 1:8 HDMI Distribution Amplifier Set of 1U Rack Ears Power Cord Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VM-8H 1:8 HDMI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VM-8H-NV Specs | Input | 1 x HDMI | | Outputs | 8 x HDMI | | Bandwidth | 6.75 Gbps (2.25 Gbps per graphic channel) | | HDCP | HDCP compliant | | Power Consumption | 100-240 VAC, 50/60 Hz, 28 VA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Rack Height | 1 U | | Dimensions | 19 x 9.3 x 1.7" (48 x 24 x 4.4 cm) | | Weight | Approximately 4 lb (1.8 kg) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 21.5 x 13.2 x 4.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
