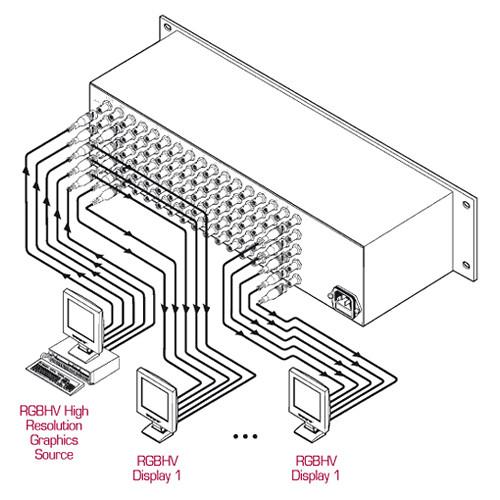

Product description The Comprehensive VP-10 is a 1x10 video distribution amplifier; it has the capability of distributing 10 RGBHV signals from a single source. This device can be reconfigured to pass RGB, RGBS, or YUV component video. - Coupling Selection
- This unit offers AC or DC selectable coupling for the users specific applications.
- Level and EQ

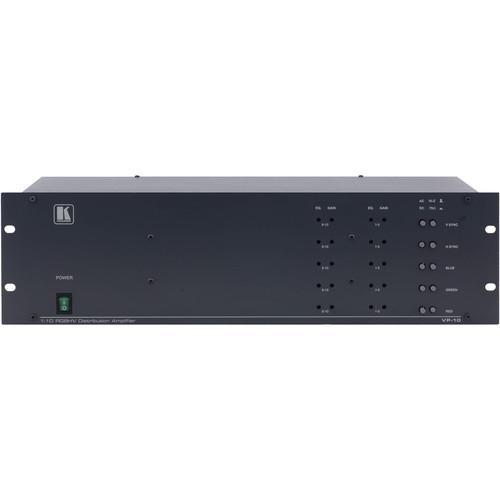

- Each output allows for Level and EQ adjustment so long cable runs of different lengths can be adjusted to correct parameters.
- Universal Power
- Power from 115 to 230 VAC @ 50/60 Hz is available for worldwide operation.
- Rackmount
- The VP-10 fits in standard studio rack spaces; it occupies 3 Rack Units.
In the Box Kramer VP-10 1x10 RGBHV Video Distribution Amplifier - Gain and EQ, Sync Selection, Coupling selection, 3 Rack Units Power Cord 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-10 1x10 RGBHV Video Distribution Amplifier - Gain and EQ, Sync Selection, Coupling selection, 3 Rack Units in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-10 Specs | Input | Analog RGBHV, Looping, .7 to 1 Vpp (analog or TTL)@ 75 ohms

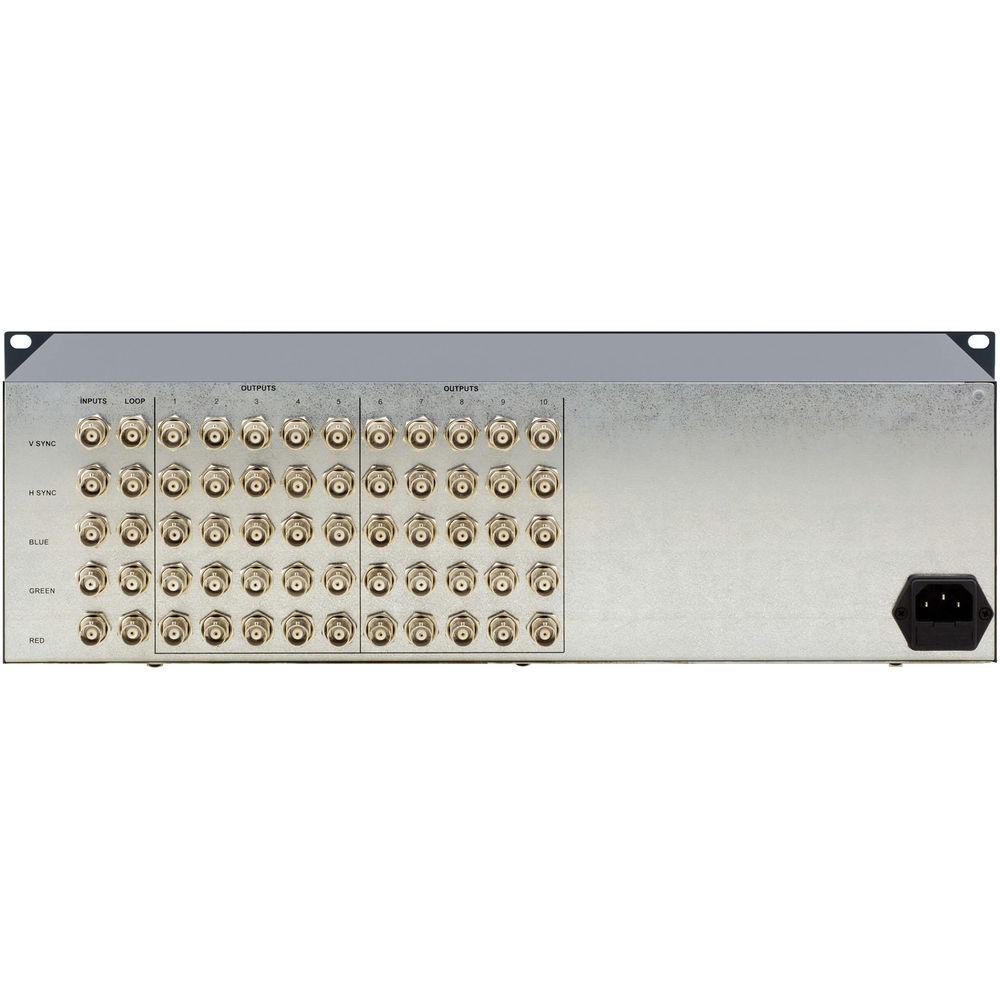

On five BNC connectors | | Output | Analog RGBHV x10, .7 or 1 Vpp (analog or TTL) @ 75 ohms
On fifty BNC connectors | | Video Bandwidth | 350 MHz | | Video Signal-to-Noise Ratio | 71 dB | | Differential Phase | 0.15° | | Differential Gain | 0.12% | | Video Control | Video Gain Adjust:
EQ Adjust:
Sync Level Selection:
AC or DC coupling | | Coupling | AC or DC (selectable) | | Dimensions | 19 x 7 x 5.25"
48.26 x 17.78 x 13.35cm | | Weight | 13.2 lbs
6 kg | | Power Source | 100 to 240 VAC 50/60 Hz | | | | Package Weight | 15.7 lb | | Box Dimensions (LxWxH) | 22.0 x 11.65 x 8.25" |
