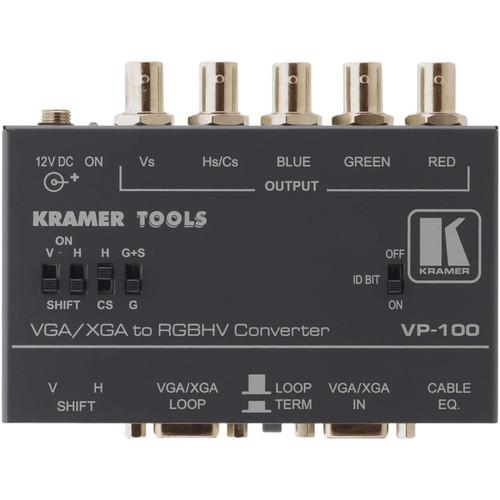

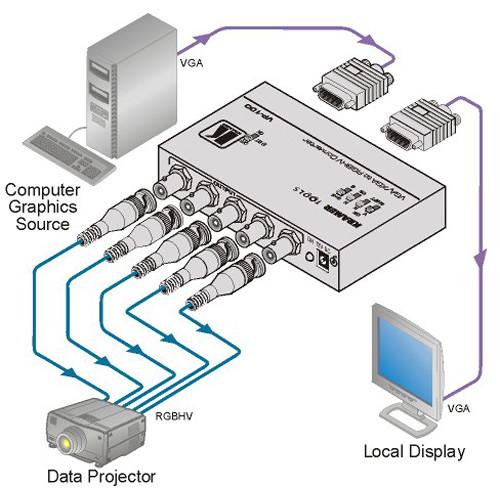

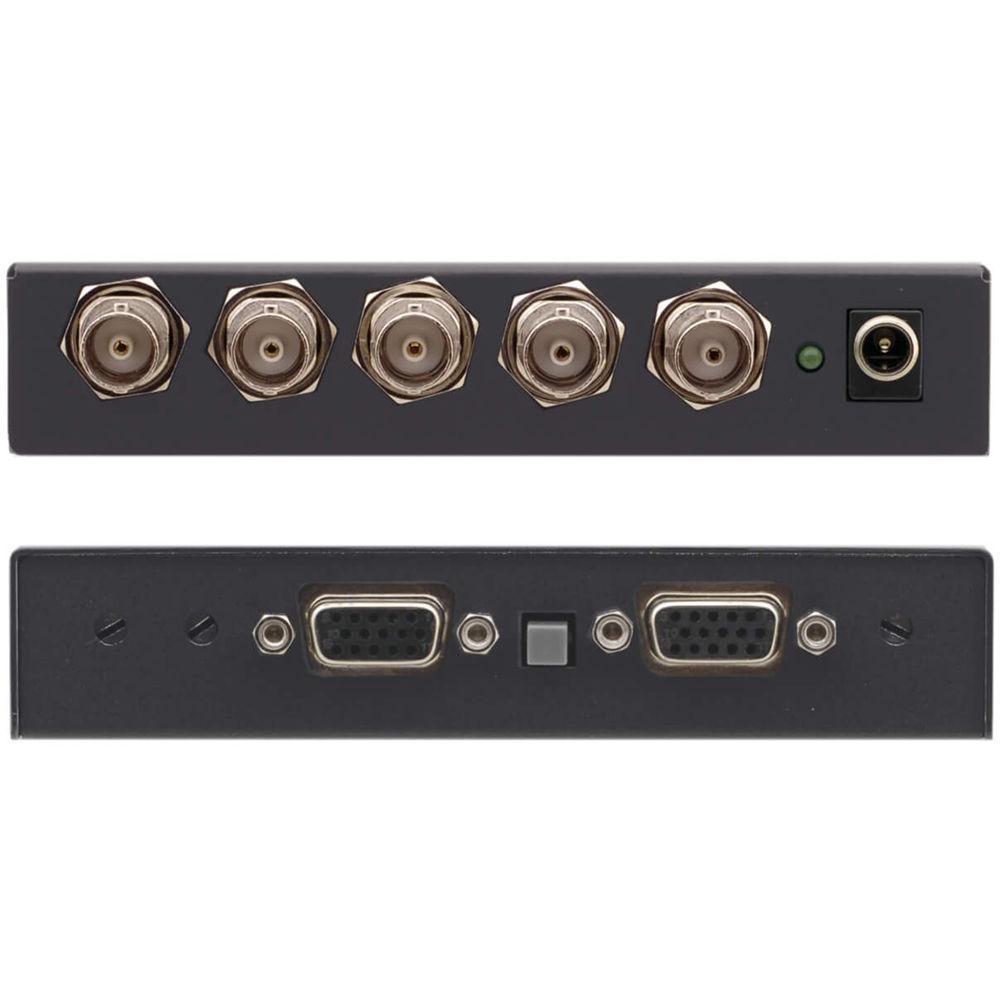

Product description The Comprehensive/Kramer VP-100 device is a VGA to RGBHV interface; it allows computer generated video to be input through an HD-15 connector and output to 5 BNC connector RGBHV. It offers sync selection and ID Bit. Note: Note: This device does not perform scan conversion or resolution conversion - Conversion
- The conversion allows a signal input from an HD-15 connector to be translated to RGBHV outputting to 5 BNC connectors.
- High Bandwidth
- High bandwidth ensures the passage of high resolution modes.
- Compact Size
- Measuring less than 5" wide this unit will fit into small studio spaces and desktops.
- Better Than an Adapter
- When just an adapter is used attenuation happens and long cable runs are not possible; the VP-100 allows the user to select long cable lengths.
- ID Bit Control
- For interfacing to the video output of notebook and laptop computers.
- Sync Selection
- Selection of H&V Sync shift and Sync on Green are offered with this device
In the Box Kramer VP-100 VGA to RGBHV Interface Converter - BNC, HD-15 AC Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-100 VGA to RGBHV Interface Converter - BNC, HD-15 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-100 Specs | Input | Computer Generated VGA type, Looping, on an HD-15 type connector | | Output | Analog RGB, RGBHV, 0.7 Vpp on RGB @ 75 ohms, on five BNC connectors | | Conversion | Computer Generated VGA type signal on HD-15 connectors to RGBHV on BNC connectors and vice versa | | Control | V & H Shift
Hs/Cs
ID Bit
Termination
Cable EQ | | Power Source | 12 VDC on an AC Adapter | | Dimensions (WxDxH) | 4.7 x 2.95 x 0.98"
12 x 7.5 x 2.5cm | | Weight | 0.67 lbs
0.3 kg | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.1 x 4.9 x 3.4" |
