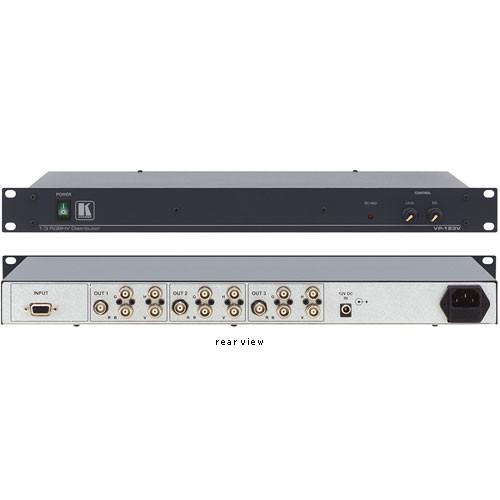

Product description The Comprehensive/Kramer VP-123V is a 1x3 RGBHV Distribution Amplifier; it accepts one input on an HD-15 connector and outputs 3 RGBHV signals. It offers a high bandwidth and is housed in a rugged 1 rack unit metal cabinet. - Multiple Format Support
- The VP-123V supports VGA to UXGA, HDTV, RGB, RGBS, RGBHV and YUV.
- Individually Buffered Outputs
- Ensures complete signal integrity and even if one output is compromised the other outputs will not be effected.
- High Bandwidth
- A bandwidth of 450 MHz is offered for passage of high resolution video signals.
- Rackmountable
- Designed to fit into standard studio rack spaces.
In the Box Kramer VP-123V 1x3 RGBHV Distribution Amplifier - HD-15, Rackmountable AC Power Adapter 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-123V 1x3 RGBHV Distribution Amplifier - HD-15, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-123V Specs | Input | RGBHV Video, 1 Vpp @ 75 ohms, on an HD-15 connector | | Output | RGBHV Video x3, 1 Vpp @ 75 ohms, on HD-15 connectors | | Video Bandwidth | 450 MHz | | Video Signal-to-Noise Ratio | 82.3 dB | | Differential Phase | 0.02° | | Differential Gain | 0.13% | | Video Control | Front Panel Level and EQ | | Coupling | DC | | Power Source | 12 VDC on an AC Power Adapter | | Dimensions (WxDxH) | 19 x 7 x 1.75"
48.26 x 17.78 x 4.45cm | | Weight | 5.2 lbs
2.36 kg | | | | Package Weight | 7.95 lb | | Box Dimensions (LxWxH) | 21.5 x 11.0 x 4.5" |
