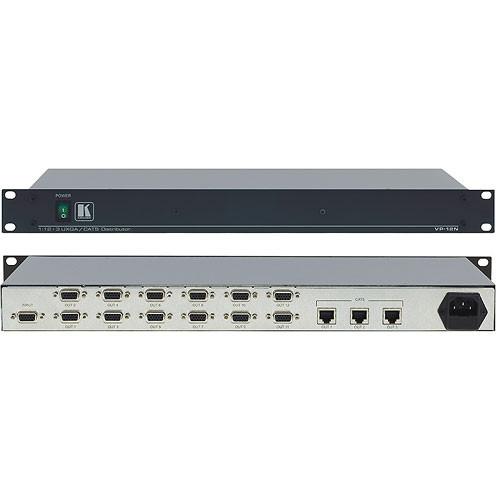

Product description The VP-12N 1:12 Computer Graphics Video Distribution Amplifier with (3) Twisted Pair Transmitters from Comprehensive/Kramer is a high-performance distribution amplifier for computer graphics. It accepts (1) HD-15 input, provides correct buffering and isolation, then distributes it to (12) HD-15 outputs and (3) RJ-45 twisted-pair outputs.
This unit offers bandwidth of 300MHz (-3dB) and is HDTV compatible. It includes sync polarity settings for improved HDTV performance with CAT5 outputs. The twisted pair RJ-45 output connector has a range of approximately 300' with CAT5 cable.
Its proprietary Power Connect System allows the entire system to receive power from just one transmitter or receiver connected to a power source (all system components must have this feature in order to use it). Other features include RGB level (gain) and ID-bit controls. It is designed for placement in a standard 19" rack. - Computer-Graphics & Twisted-Pair Distribution Amplifier
- Use this unit to distribute (1) HD-15 input to (12) HD-15 outputs and (3) twisted-pair outputs.
- Bandwidth & Compatibility
- It supports bandwidth of up to 300MHz and is HDTV compatible.
- Proprietary Power System
- If all the components in your system feature the proprietary Power Connect System, only one unit has to be connected to a power source to power them all.
- Controls
- This model offers RGB level (gain) and ID-bit controls.
- Rack Ready
- This unit can be mounted in any standard 19" rack.
In the Box Kramer VP-12N 1:12 Computer Graphics Video Distribution Amplifier with (3) Twisted Pair Transmitters Distribution Amplifier Power Cord Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-12N 1:12 Computer Graphics Video Distribution Amplifier with Twisted Pair Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-12NHD Specs | Construction | Metal | | Finish | Black, silver | | Inputs | (1) UXGA on an HD15F connector | | Outputs | (12) UXGA on HD15F connectors; 3 RJ-45 OUT connectors | | Output Level | UXGA: 1.7Vpp maximum
CAT5: 1.3Vpp maximum | | Bandwidth | UXGA: 330MHz
CAT5: 156MHz | | Differential Gain | 0.17% at UXGA OUT | | Differential Phase | 0.44° at UXGA OUT | | K-Factor | <0.05% at UXGA and CAT5 OUT | | Signal-to-Noise Ratio | UXGA: 73dB
CAT5: 70dB | | Controls | Level: -0.8dB to 2.4dB | | Coupling | UXGA: DC
CAT5: AC | | Power | 230VAC, 50/60Hz (115VAC, U.S.A.) 31VA | | Dimensions (HxWxD) | 1.75 x 17 x 7"
1U rack height | | Weight | 6 lbs (2.7 kg) | | | | Package Weight | 5.44 lb | | Box Dimensions (LxWxH) | 21.8 x 11.0 x 4.2" |
