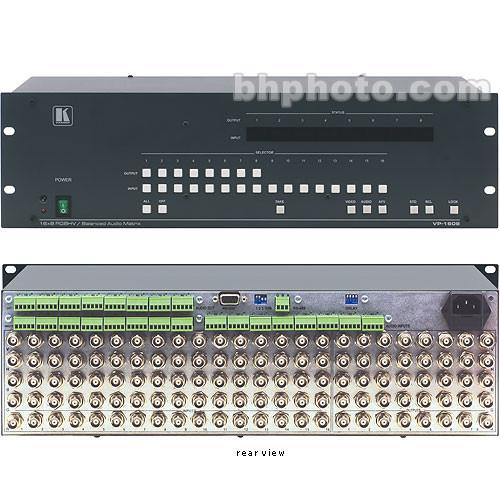

Product description The VP-1608 16x8 RGBHV/Audio Matrix Switcher from Kramer is a high-performance matrix switcher for use with RGBHV and balanced audio signals. This solution can route any or all inputs to any or all outputs simultaneously, making it an ideal solution for presentation and production applications.
By employing delayed switching and changing sync ahead of video, this unit ensures nearly glitch-free switching of non-genlocked sources. A take button allows for the execution of multiple switches at once, audio breakaway switching is also a standard feature, and memory locations store multiple switch presets to be recalled and executed as needed.
Control of the system is managed through the unit's front panel (which features a control lockout security feature), or the included Windows-based control software. The system comes ready to manage up to 400MHz of bandwidth. It also features a standard 19" width and 3U height to accommodate easy rack placement. - RGBHV & Balanced Audio Signals
- This unit is designed to serve as a high-performance matrix switcher for use with RGBHV and balanced audio signals.
- Breakaway Audio
- Audio can be routed separately from the video as needed.
- Balanced Audio
- Balanced audio provides the highest quality signal possible.
- Take Button
- Execute multiple switches at once with this unit's take button.
- Preset Switches
- This unit allows you to store multiple switch presets that can be recalled and executed as needed.
- Control Software
- Manage your system with the included Windows-based software control package.
- Rack Ready
- This unit is designed to fit into a standard 19" rack and occupies only 3U of rack space.
In the Box Kramer VP-1608 16x8 RGBHV/Audio Matrix Switcher Switcher Power Cord Windows-based Control Software Null Modem Adapter Seven-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-1608 16x8 RGBHV Audio Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-1608 Specs | Input | 16 x 3 video (RGB) 0.7Vpp/75 Ω on BNC connectors
16 x 2 H&V, TTL level on BNC connectors
16 balanced audio stereo on detachable terminal blocks | | Output | 8 x 3 video (RGB) 0.7Vpp/75Ω on BNC connectors
8 x 2 H&V, TTL level/75Ω an BNC connectors
8 balanced audio stereo on detachable terminal blocks | | Video Bandwidth | 400MHz | | Audio Bandwidth | 30kHz | | Video Signal-to-Noise Ratio | 71.7dB | | Audio Signal-to-Noise Ratio | 74.5dB unweighted (1Vpp) | | Video Crosstalk | -62.5dB @ 5MHz | | Control | Front panel switches and IR, RS-232 and RS- 485 may also control input and output audio levels | | Audio Control | Mute, - 46dB to +10dB Gain Range, via RS-232, RS 485, IR | | Audio THD | 0.028% (1kHz) | | Power Source | 230 VAC, 50/60 Hz (115 VAC, USA), 28VA | | Dimensions (WxD) | 19 x 7"
3U rack height | | Weight | 5.5 lbs (12.2kg) | | | | Package Weight | 20.05 lb | | Box Dimensions (LxWxH) | 21.5 x 12.0 x 8.0" |
