User Manual for Kramer VP-200Dxl 1:2 XGA Differential Amplifier Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer VP-200Dxl 1:2 XGA Differential Amplifier
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
 |
User manual for the Kramer VP-200Dxl 1:2 XGA Differential Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

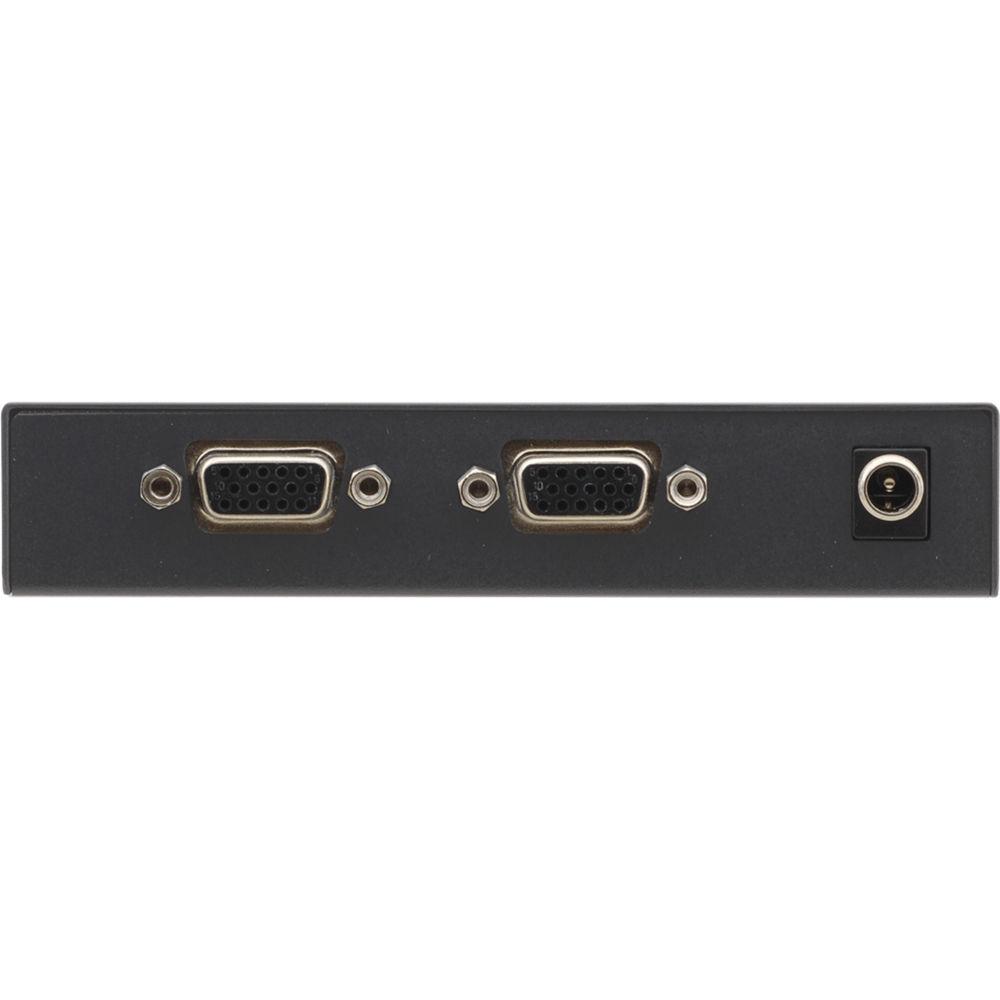

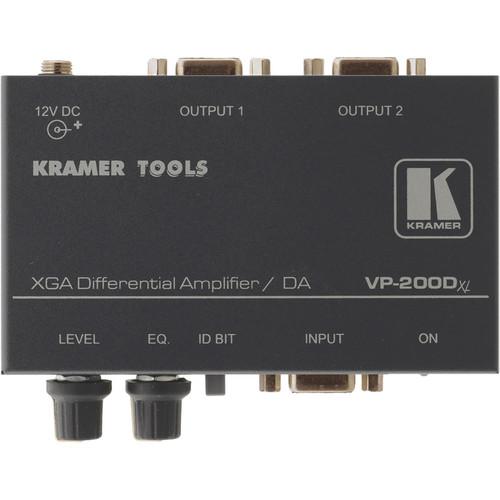

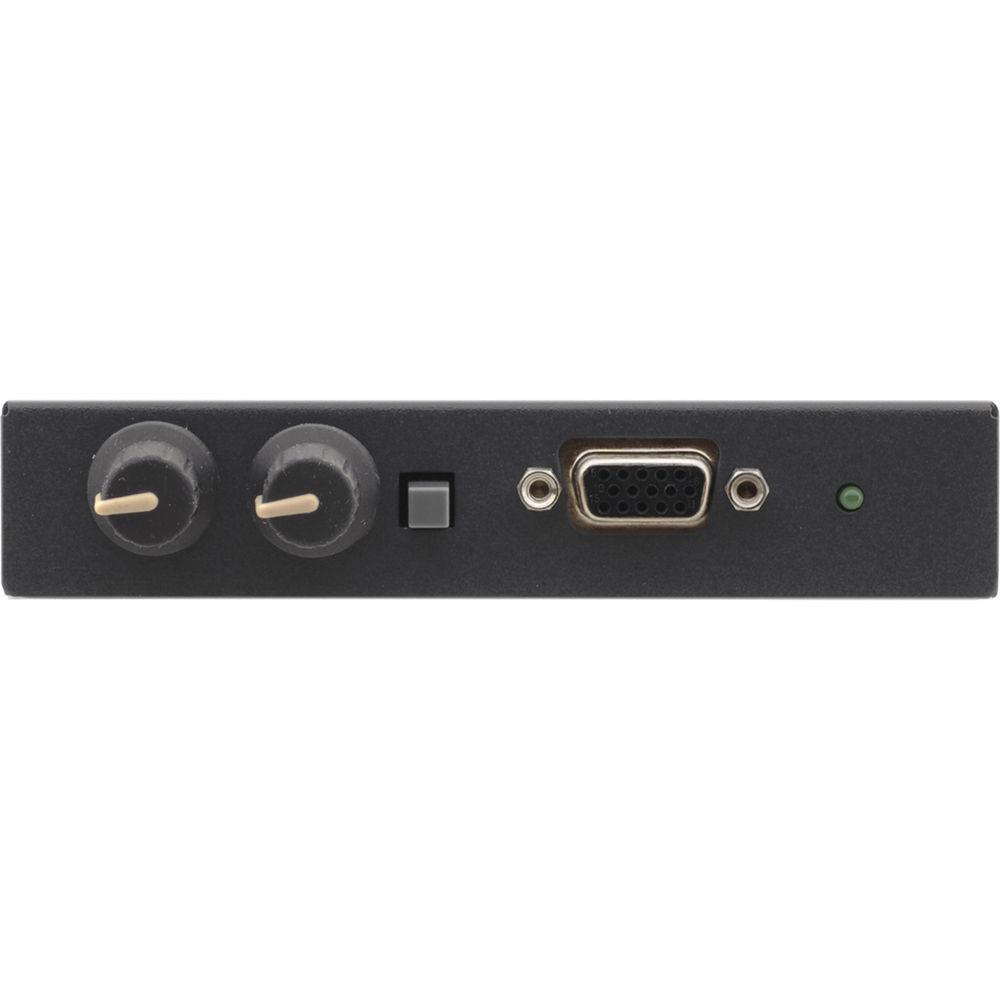

Product description The VP-200Dxl 1:2 XGA Differential Line / Distribution Amplifier from Comprehensive/Kramer is designed for use with computer graphics video signals with resolutions ranging from VGA through UXGA and higher. This unit is ideal for use in dual-monitor or presentation systems that require long-range transmission of signals, among other possible uses.
It features differential circuitry that helps to eliminate the noise often found on the input in long cable runs. Other features include a bandwidth capacity of 400MHz, level (gain) & EQ (peaking) controls, and ID-bit control. This unit is HDTV compatible. It also belongs to the Kramer TOOLs family of products and up to (3) units can be mounted side by side in a standard 19" equipment rack by using the optional RK-3T rack kit. - 1:2 Computer Graphics Distribution
- Use this device to distribute (1) computer graphics video input signal with resolution up to UXGA to (2) outputs.
- Settings
- This unit offers level and EQ controls.
- Siganl Integrity
- Differential circuitry helps eliminate the noise often found on the input in long cable runs.
- Standalone or Rackmount
- It is equally well suited for standalone or rackmount use.
In the Box Kramer VP-200Dxl 1:2 XGA Differential Amplifier / Distribution Amplifier Distribution Amplifier Power Supply Set of Mounting Brackets Seven-Year Warranty Against Defects in Material & Workmanship User Manual PDF 177.7kbsrxsvxbzbvrfybxexqtrwv Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-200Dxl 1:2 XGA Differential Amplifier Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-200DXL Specs | Construction | Metal | | Finish | Black | | Input | (1) analog red, green, blue signals - 0.7Vpp/75 Ohms, H & V sync, TTL level, on an 15-pin HD F connector | | Output | (1) analog red, green, blue signals - 0.7Vpp/75 Ohms, H & V sync, TTL level, on an 15-pin HD F connector | | Bandwidth | 400MHz | | Differential Gain | 0.17% | | Differential Phase | 0.01° | | Coupling | DC | | K-Factor | <0.05% | | Signal-to-Noise Ratio | 71.5dB | | Control | Level: -1.1 to +6dB
EQ: 0 to +14.5dB, ID bit | | Power | 12VDC, 150 mA | | Dimensions (HxWxD) | 0.98 x 4.7 x 2.95" (2.5 x 12. 7.5cm) | | Weight | 0.66 lbs (0.3kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.1 x 4.8 x 3.4" |
