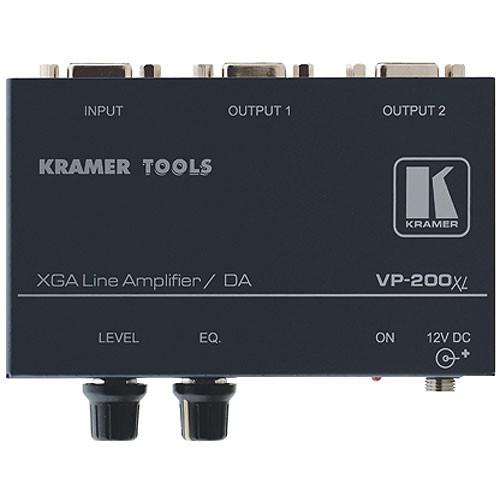

User Manual for Kramer VP-200xln 1:2 Computer Graphics Video Line & Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer VP-200xln 1:2 Computer Graphics Video
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
|
User manual for the Kramer VP-200xln 1:2 Computer Graphics Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VP-200xln 1:2 Computer Graphics Video Line & Distribution Amplifier from Comprehensive/Kramer is a high-performance distribution amplifier designed for use with computer-graphics video with resolutions ranging from VGA through UXGA and higher. It will send (1) input to (2) identical outputs. This unit also offers special controls to compensate for signal losses that are inherent in long cable runs.
It features bandwidth of 400MHz (-3dB) and is HDTV compatible. It also includes level (gain), EQ (peaking), and ID-bit controls. This model belongs to the DigiTOOLS family of products, a series noted for its compact size, making it equally well suited for standalone or rack installations. - Computer-Graphics Video Distribution
- Use this unit to distribute (1) input to (2) outputs.
- High-Bandwidth Capacity
- It offers video bandwidth capacity of 400MHz (-3dB).
- Settings
- Multiple signal settings ensure that you achieve the highest possible picture quality.
- Small Footrprint
- This unit's small size makes it equally well suited for standalone use or rack placement.
In the Box Kramer VP-200xln 1:2 Computer Graphics Video Line & Distribution Amplifier Matrix Switcher Power Supply Mounting Bracket Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-200xln 1:2 Computer Graphics Video Line & Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-200XLN Specs | Construction | Metal | | Finish | Black, silver | | Inputs | (1) XGA on an HD15F connector | | Outputs | (2) XGA on HD15F connectors | | Output Level | 2Vpp maximum | | Bandwidth | 400MHz (-3dB) | | Differential Gain | 0.05% | | Differential Phase | 0.03°° | | K-Factor | <0.05% | | Signal-to-Noise Ratio | 71dB | | Coupling | AC/DC | | Controls | Level: -1.5dB to +6.1dB
EQ: 0 to +7.3dB @ 50MHz | | Power | 12VDC, 95mA | | Dimensions (HxWxD) | 1.08 x 4.7 x 2.8" (2.76 x 12 x 7.15cm) | | Weight | 0.67 lbs (0.3 kg) | | | | Package Weight | 1.08 lb | | Box Dimensions (LxWxH) | 9.0 x 5.0 x 3.5" |
