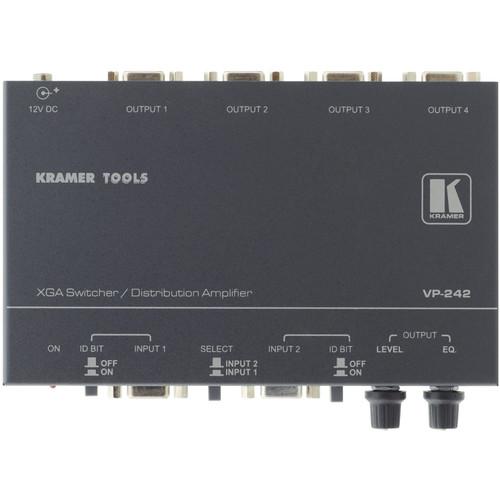

User Manual for Kramer VP-242 2x1 XGA Switcher, 1x4 Distribution Amplifier, Level and EQ Controls Click to enlarge the picture
Contents of the user manual for the Kramer VP-242 2x1 XGA Switcher, 1x4
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VP-242 2x1 XGA Switcher, 1x4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Comprehensive VP-242 is a 2x1 XGA switcher with 1x4 distribution amplifier capabilities; it features level and EQ controls in a compact design. This device was made to work in presentation applications where two sources need to be routed to four displays. - Switcher
- In it's normal state this unit is a 2x1 XGA switcher; it has the ability to switch between two computer generated sources.
- Distribution Amplifier
- Along with being a two input switcher the VP-242 features four identical outputs allowing it to act as a XGA distribution amplifier.
- Control
- Level and EQ controls are offered to adjust the outputs to correct parameters for long cable runs.
- Compact Size
- Measuring less than 8 inches wide, this unit will fit on desktops and small studio spaces.
In the Box Kramer VP-242 2x1 XGA Switcher, 1x4 Distribution Amplifier, Level and EQ Controls AC Power Adapter 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-242 2x1 XGA Switcher, 1x4 Distribution Amplifier, Level and EQ Controls in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-242 Specs | Input | Computer Generated Video x2, up to UXGA, on HD-15 connectors | | Output | Computer Generated Video x4, up to UXGA, on HD-15 connectors | | Switch Type | Push Button Selection | | Video Bandwidth | 410 MHz | | Differential Gain | 0.05% | | Differential Phase | 0.03° | | Video Signal-to-Noise Ratio | 73 dB | | Control | Side Panel:
Output Level Control
Output EQ control
Input 1 ID Bit
Input 2 ID Bit
Input 1 or 2 Selection | | Power Source | 12 VDC from a Supplied Power Adapter | | Dimensions (WxDxH) | 7.5 x 5.3 x 0.98"
19 x 13.5 x 2.5cm | | Weight | 1.32 lbs
0.6 kg | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 13.6 x 8.6 x 3.0" |
