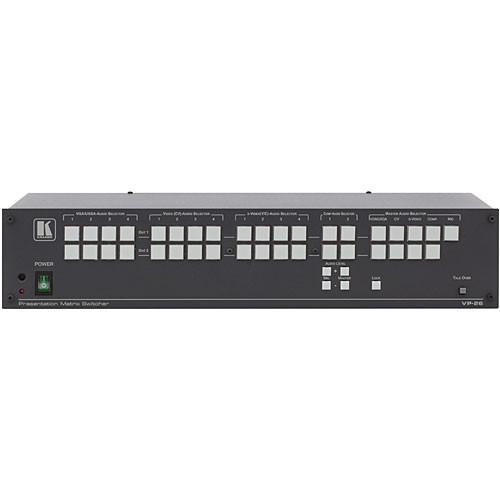

Product description The Comprehensive/Kramer VP-26 is a multi-format presentation switcher. It switches 4x2 composite, 4x2 S-Video, 2x2 component and a 4x2 graphics video switcher with corresponding balanced stereo audio switching capability with each video input. - Application
- This device is designed for presentation applications where a variety of input formats need to be accessed and switched in a glitch-free fashion.
- HDTV
- This device has the bandwidth and input format capability to pass HDTV signals.
- Microphone
- The microphone input offers level control and may be activated by a talkover button for live narration during video presentation.
- Audio Amplifier
- For room or master control monitoring a 5 watt per channel amplifier with speaker output is offered.
- Remote Options
- This device can be remote controlled by IR, RS-485, RS-232 and Ethernet.
- Worldwide Power Supply
- A universal power supply is offered for operation in most countries without extraneous power converter.
In the Box Kramer VP-26 4x2 Multi-Format Presentation Switcher Power Cord Control Software Null Modem Adapter IR Transmitter 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-26 4x2 Multi-Format Presentation Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-26 Specs | Input | Composite Video x4, 1 Vpp @ 75 ohms, on BNC connectors
Graphics Video x4, up to UXGA, on HD-15 connectors
Y/C S-Video x4, 1 Vpp Y, 0.3 Vpp C, on 4-pin connectors
Component Video x2, YPbPr, on RCA connectors
Balanced Stereo Audio x14, @ 50K ohm, on terminal block connectors
Mic Input, @ 10K ohms, on an XLR connector
Ethernet, on an RJ-45 connector
RS-232, on a 9-Pin connector
RS-485, on terminal block connectors | | Output | Composite Video x2, 1 Vpp @ 75 ohms, on BNC connectors
Graphics Video x2, up to UXGA, on HD-15 connectors
Y/C S-Video x2, 1 Vpp Y, 0.3 Vpp C, on 4-pin connectors
Component Video x2, YPbPr, on RCA connectors
Balanced Stereo Audio x9, @ 50K ohm, on terminal block connectors
Line Out, on a Cat5 connector
Master Stereo Audio, @ 150 ohms, on a terminal block
Stereo Speaker Output, 5 watts rms @ 4 ohms, on a terminal block | | Switch Type | Matrix, front panel selectors with take
Remote via IR, RS-232 and RS-485 | | Video Bandwidth | Graphics 300 MHz
Y/C 320 MHz
CV 420 MHz
Cat5 up to UXGA | | Differential Gain | Graphics 0.15%
Y/C 0.03%
CV 0.02%
Cat5 6.4% | | Differential Phase | Graphics 0.09°
Y/C 0.03°
CV 0.03°
Cat5 0.2° | | Video Signal-to-Noise Ratio | 75dB | | Audio Bandwidth | 46KHz | | Signal to Noise Ratio | 74dB | | Audio THD | 0.008% | | Control | Front Panel Touch Switches
Remote via IR, RS-232 and RS-485
Sync Selector rear panel | | Power Source | 100 to 240VAC, 47 to 63Hz | | Dimensions (WxDxH) | 19 x 7 x 3.5"
48.26 x 17.78 x 8.9cm | | Weight | 8.4 lbs
3.8kg | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 21.8 x 11.9 x 6.6" |
